One-stop storage equipment supplier: every system is engineered around your pallet data, building height and forklift fleet, then produced in-house and trial-assembled before shipment.

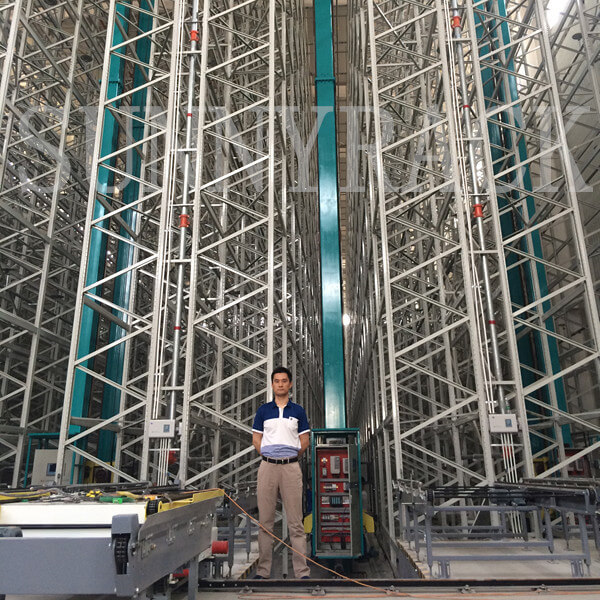

Automation High-bay unit-load racking served by stacker cranes and controlled by WMS/WCS software — maximum height utilization with minimal labor and near-zero picking errors.

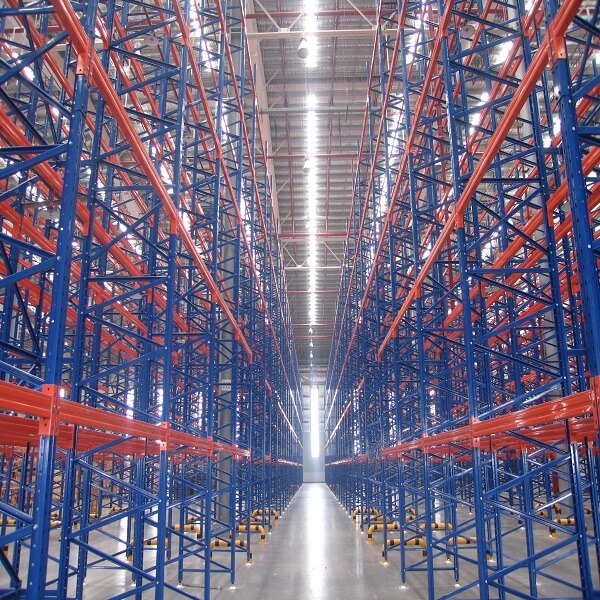

Best Seller The most versatile heavy-duty system with 100% direct access to every pallet position. Adjustable beam levels adapt to changing load heights and SKU mixes.

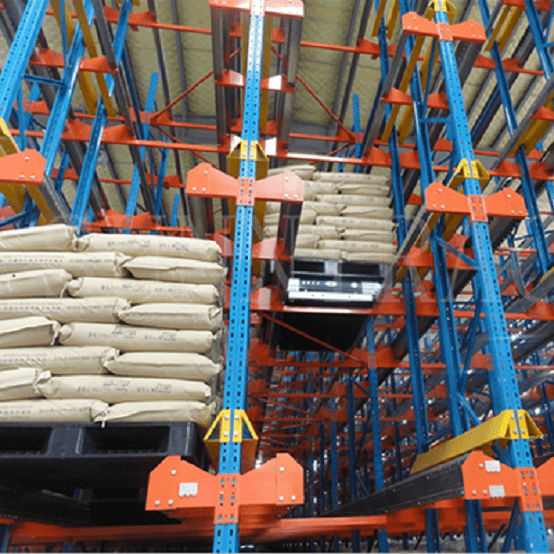

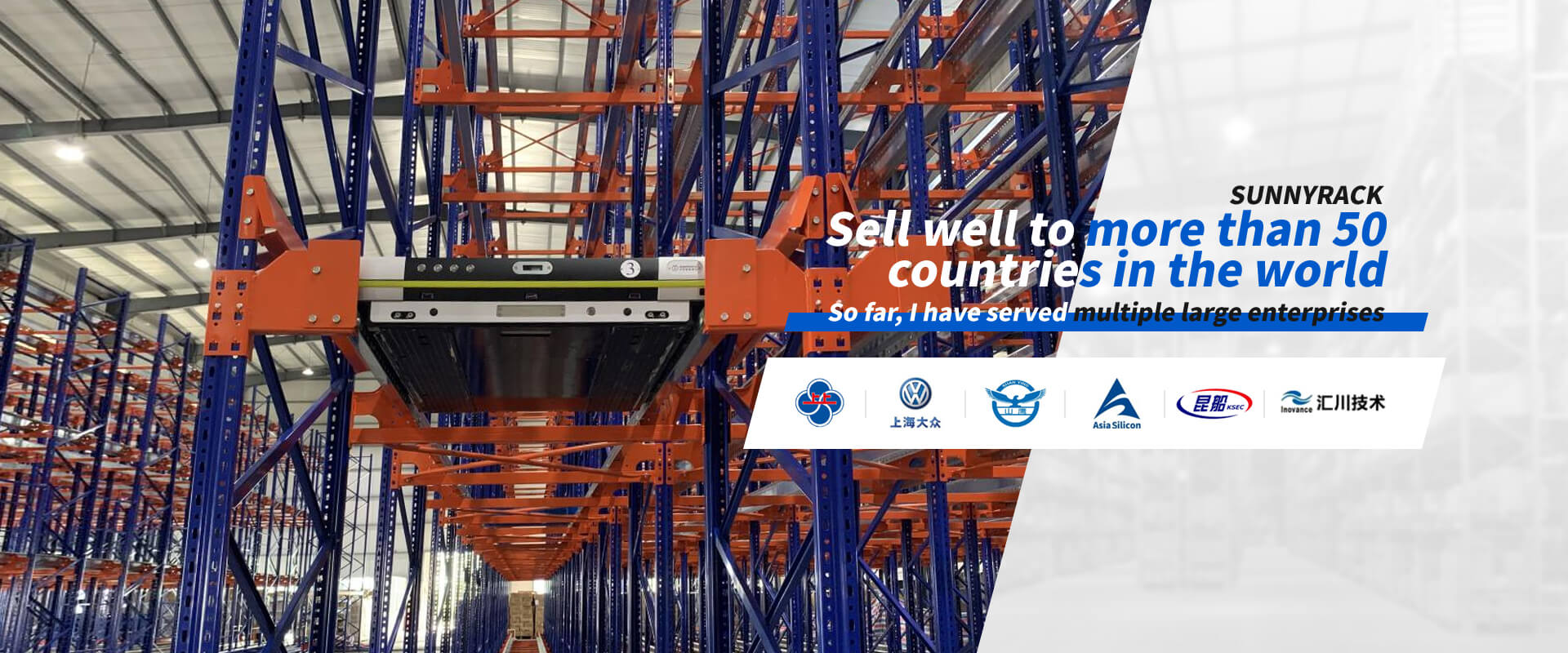

High Density A remote-controlled shuttle carries pallets inside deep storage lanes, so forklifts never enter the rack. Supports FIFO or LIFO and performs reliably in cold storage.

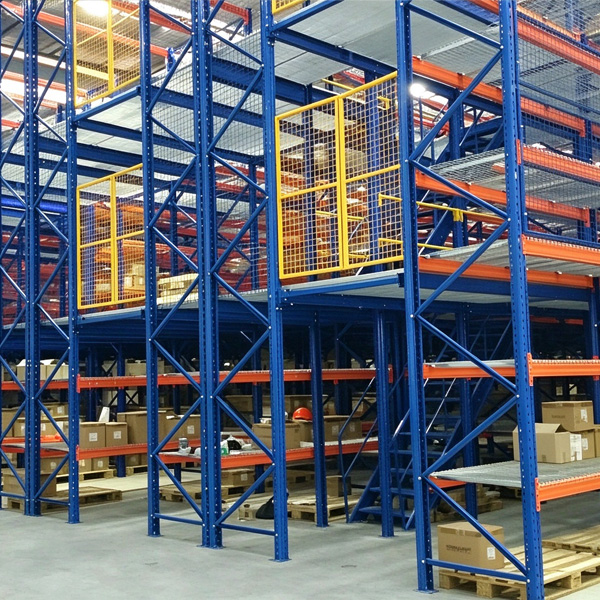

Space Saving Rack-supported multi-tier picking floors that double or triple usable storage area without new construction — ideal for e-commerce, apparel and spare parts.

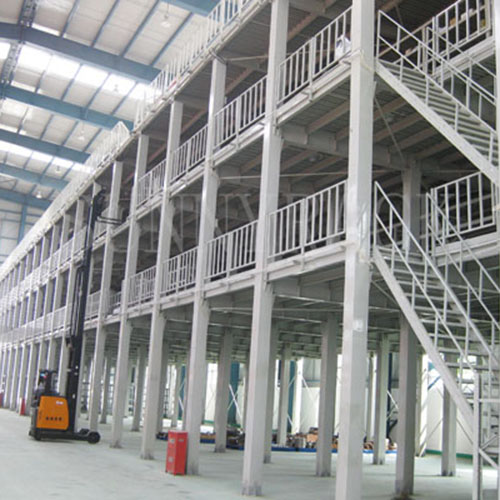

Structural Free-standing structural steel platforms for storage, offices or production lines above ground level, supplied with staircases, handrails and load-rated decking.

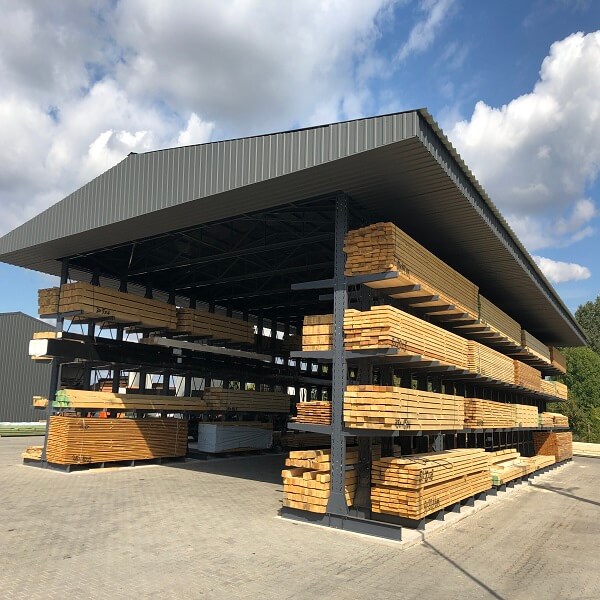

Long Goods Single- or double-sided arm racking for pipes, timber, steel bars and profiles. No front uprights means long and irregular loads are handled quickly and safely.
Automotive, aerospace, new energy, electronics, robotics and apparel brands rely on our racking to keep their supply chains moving.
Trademarks shown belong to their respective owners and indicate project cooperation.
Six verifiable production controls that separate a long-life racking system from a low-cost copy — ask us for mill certificates and test data on any order.
Real installations across rail transit, 3PL, medical, apparel and cold-chain logistics — in China, the Americas and beyond.

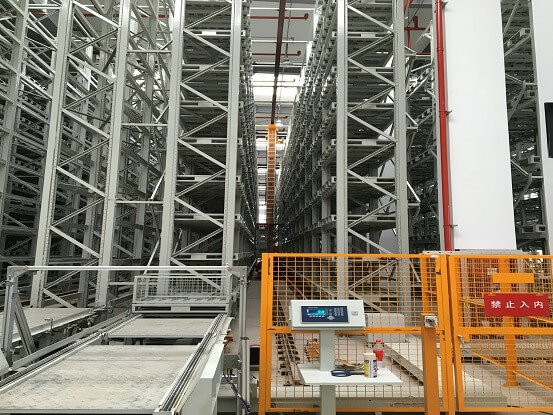

Automated high-bay storage for rail transit maintenance parts, giving the operator real-time inventory visibility.
View Case Details

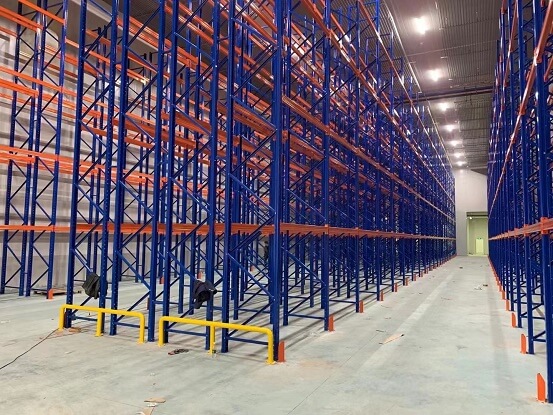

Heavy-duty selective racking for a multi-client 3PL hub requiring fast access to thousands of SKUs.
View Case Details

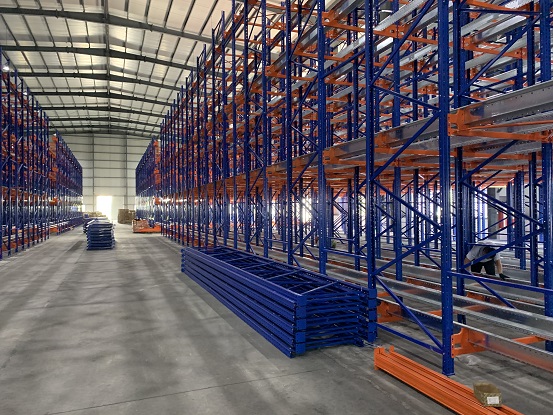

High-density shuttle lanes with batch-controlled FIFO flow for medical consumables and devices.
View Case Details
Multi-tier picking floors multiplying garment storage area inside an existing building, shipped and installed overseas.
View Case Details

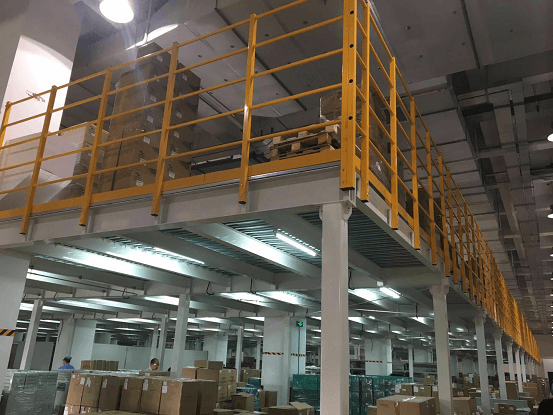

A structural steel platform adding a full working level above production, with stairs and safety railings.
View Case Details

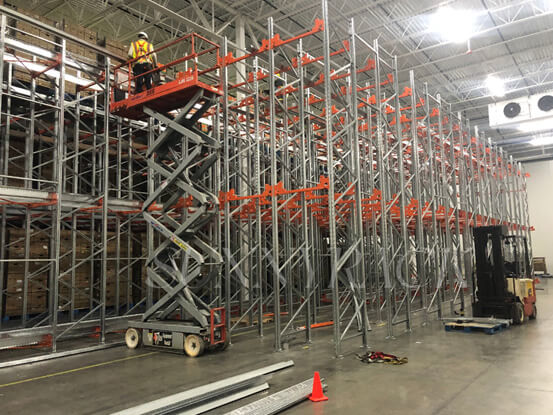

Deep-lane shuttle racking that minimizes cold-room volume per pallet and cuts forklift travel in freezing conditions.
View Case DetailsA closed-loop, eight-step service chain: every stage has a responsible engineer and a documented deliverable.
01Engineers respond around the clock to clarify goods, throughput and budget.
02You measure the site using our checklist: clear height, columns, doors, floor.
03CAD layout, 3D view and load data report tailored to your requirements.
04Design is refined with your team until capacity and cost are balanced.
05Drawings, specifications and delivery terms are confirmed in writing.
06In-house manufacturing with a shared schedule and full-process QC.
07English manual plus online guidance; on-site installation team available.
08Free maintenance within warranty, fast response and lifetime technical support.
Design, customization, production, transportation, installation and after-sales — handled by a single engineering team.
Free layout planning and structural calculations based on your real pallet and building data.

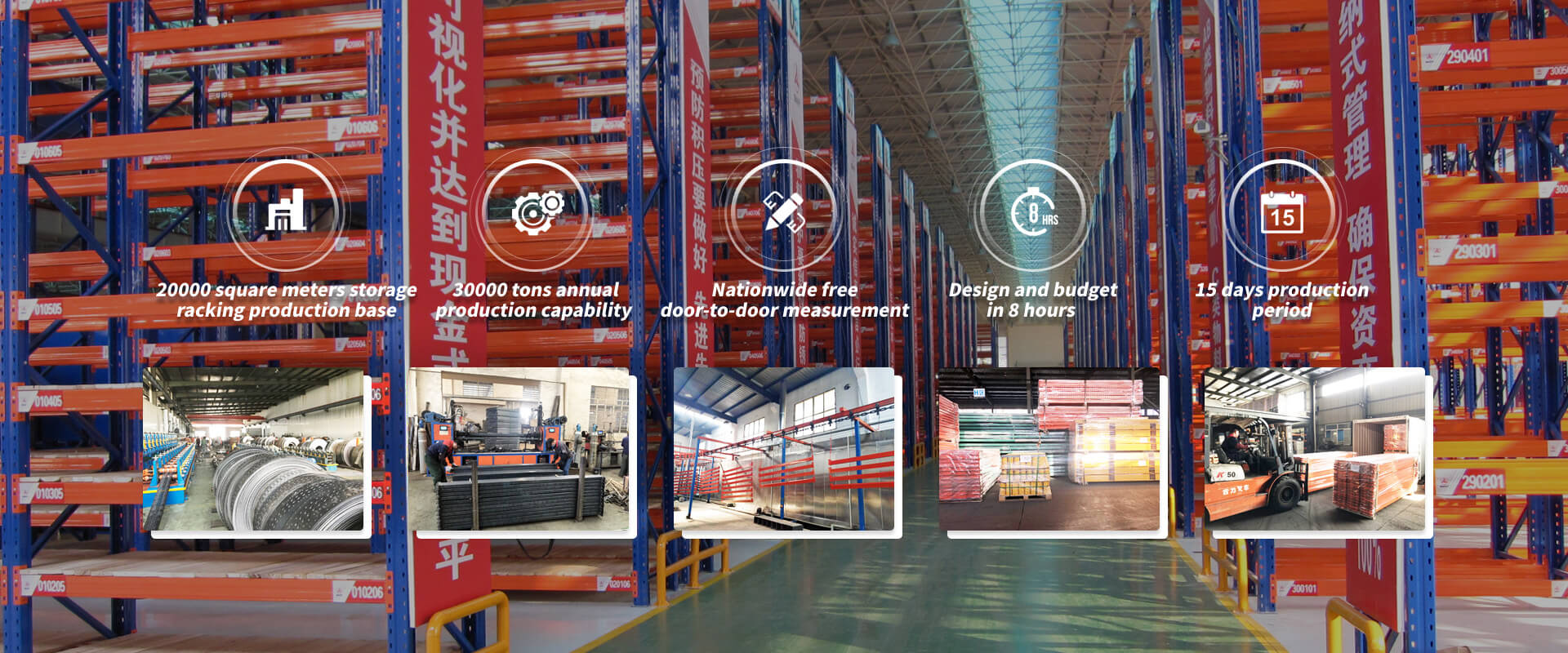

150+ sets of main equipment and 30,000 t annual capacity keep lead time and quality under control.
Steel-strapped bundles and plywood pallets engineered for container shipping and safe arrival.
English manuals, video guidance, remote support and optional on-site installation crews.
Every racking component passes six in-house process stages. Here is exactly what happens inside our factory.

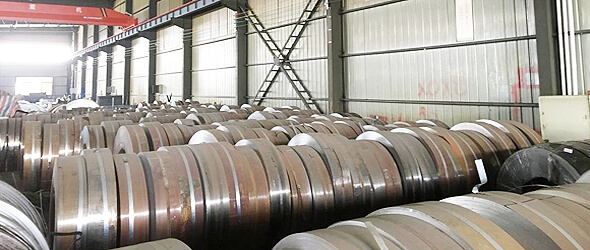

We use Q235B and Q355B structural steel sourced exclusively from leading Chinese mills including Baosteel, Masteel and Wuhan Iron and Steel. Each batch is traceable to its mill certificate, so yield strength and thickness are verifiable rather than assumed.

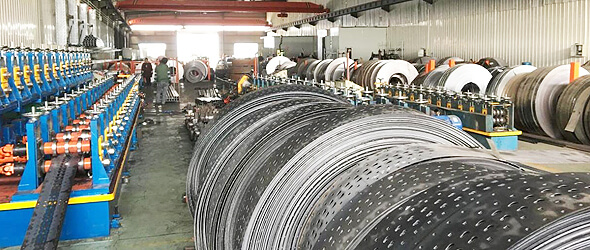

Uprights, beams and floor decks are produced on dedicated roll-forming lines using German technology. Total hole-pitch cumulative error stays within 2 mm over a 12-meter upright, ensuring beams sit level and loads distribute as calculated.

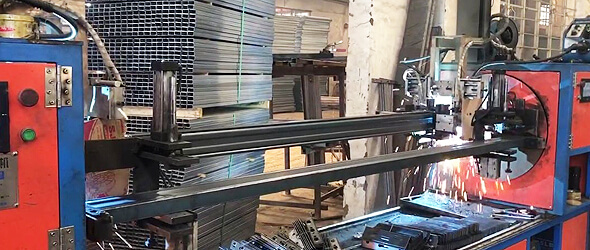

Beam connectors and frame components are welded by automatic manipulators, producing full, uniform and consistent seams. Robotic welding eliminates the missed welds and porosity that commonly cause beam connector failure.

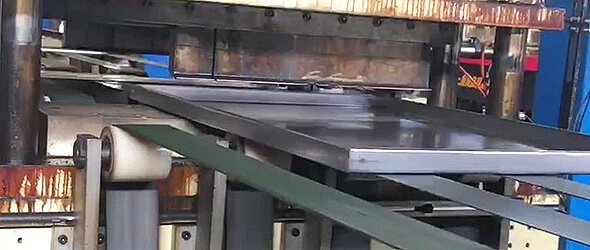

An automatic integrated bending machine produces 0.7, 0.8, 1.0 and 1.2 mm steel panels with square, rigid edges — suitable for medium-duty shelving, mezzanine decking and long span shelves.

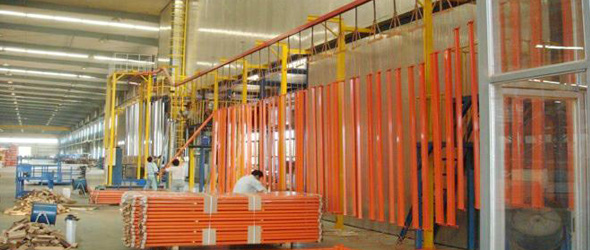

Our 220-meter line uses Swiss Gema spraying equipment. Surfaces are fully degreased and de-rusted, then electrostatically powder coated and cured at 180°C for corrosion resistance, abrasion resistance and a uniform finish.

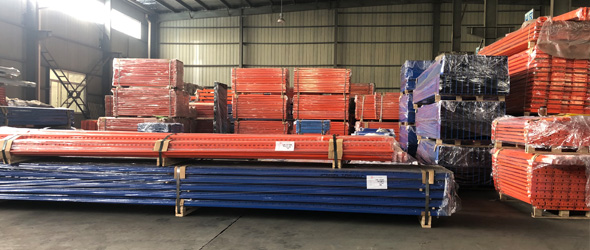

Beams and uprights are bundled with multi-tier steel strapping; accessories are packed in cartons on plywood pallets. Clear labeling speeds up customs inspection and on-site sorting while minimizing packaging waste.
Compare storage density, pallet accessibility and operating requirements before requesting a layout — it shortens the design cycle and avoids costly re-specification.
| System | Storage Density | Pallet Access | Best Suited For | Handling Equipment |
|---|---|---|---|---|
| Selective Pallet Racking | 100% direct access | High SKU count, mixed turnover, general distribution | Counterbalance or reach truck | |
| VNA Pallet Racking | 100% direct access | Tall buildings where aisle space must be minimized | Turret / three-way forklift, guide rails | |
| Drive-In Racking | LIFO, per lane | Few SKUs in large quantities, seasonal goods | Standard forklift enters the lane | |
| Radio Shuttle Racking | FIFO or LIFO, per lane | Cold storage, food & beverage, batch-controlled goods | Forklift + battery radio shuttle | |
| AS/RS | Fully automated | High throughput, high-bay buildings, labor savings | Stacker crane + WMS/WCS | |
| Cantilever Racking | Direct access | Pipes, timber, steel bars, profiles | Side loader or forklift | |
| Mezzanine Racking | Manual picking | Small parts, apparel, e-commerce fulfillment | Manual picking, lifts, conveyors |

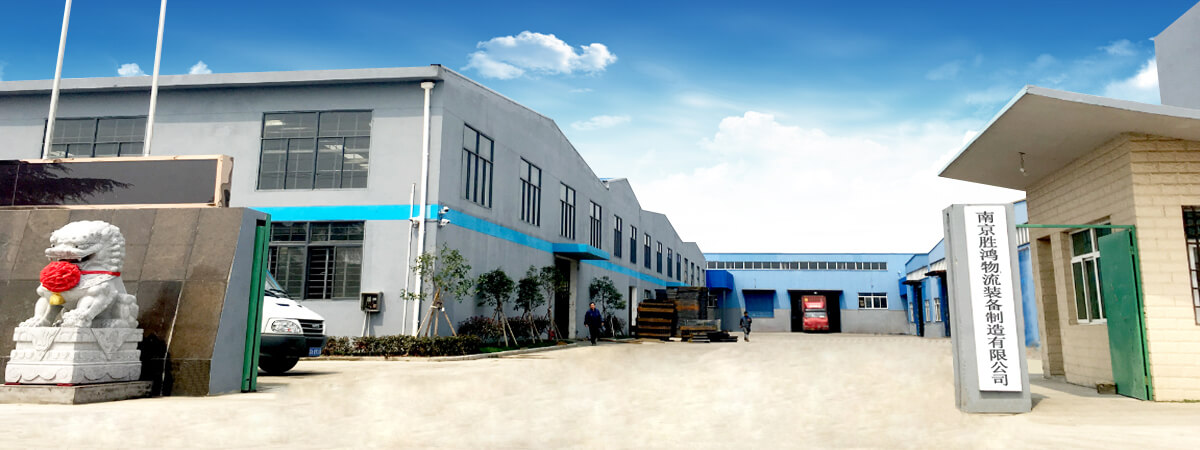

Founded in September 2006, ApexDrive Industrial Racking Co., Ltd. researches, designs, manufactures and installs storage racking systems for manufacturers, distributors and logistics operators. From a 20,000 m² production base, we supply selective pallet racking, VNA and drive-in racking, radio shuttle and pallet shuttle systems, mezzanine racking, steel platforms, cantilever racking, carton flow racks, electric mobile racking, medium-duty and long span shelving, and fully automated AS/RS.
Our racking serves manufacturing intralogistics, food and chemicals, pharmaceuticals, cold-chain logistics, third-party logistics and distribution. Every project receives free rack design and warehouse layout planning, strict quality control with trial assembly before shipment, and durability analysis on request.

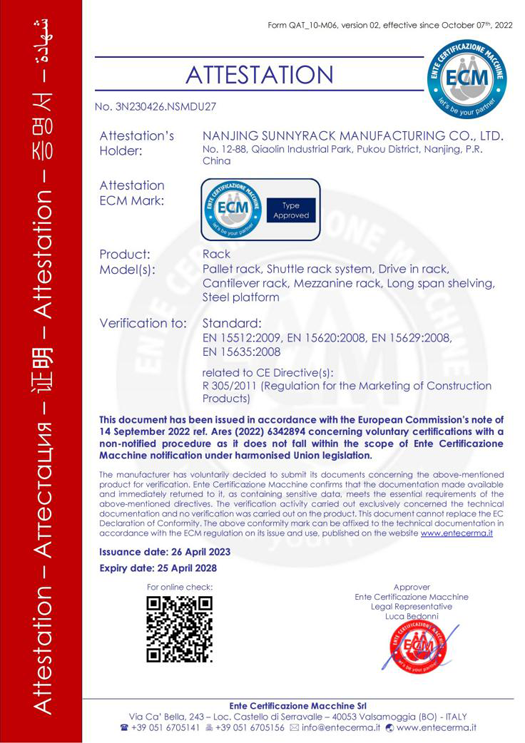

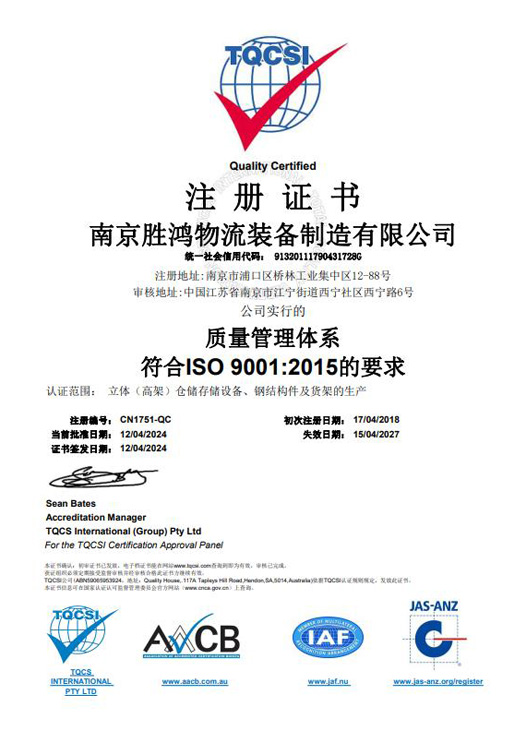

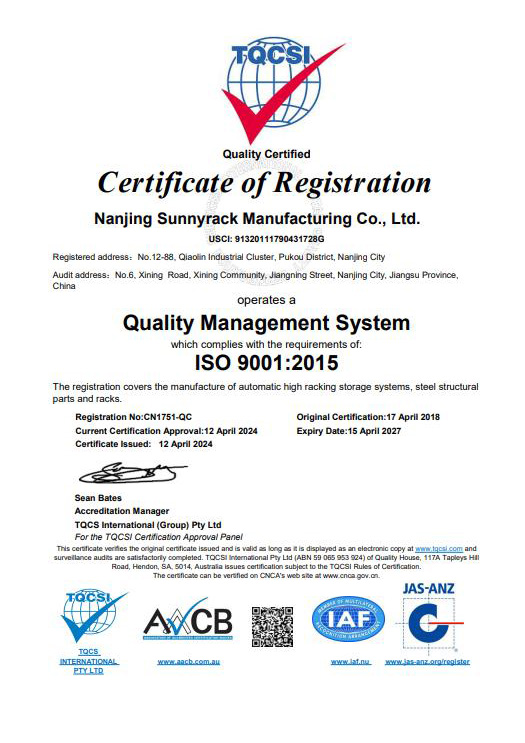

Independent certification of our quality management system and racking products. Click any certificate to enlarge.
Straight answers from our project engineers to help you plan, compare suppliers and budget with confidence.
