Factory-Direct Heavy Storage Portfolio
Featured Long Load & Pallet Racking Systems

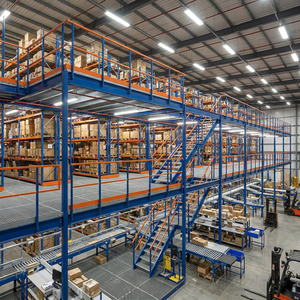

Customized Industrial Pallet Rack System Warehouse Storage Solution Manufacturer
Contact Us

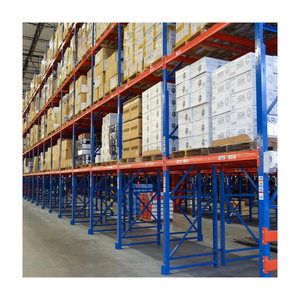

Wholesale Price Heavy Duty Storage Racks Warehouse Stacking Racks Selective Steel Pallet Rack Heavy-Duty Racking For Sale
Contact Us

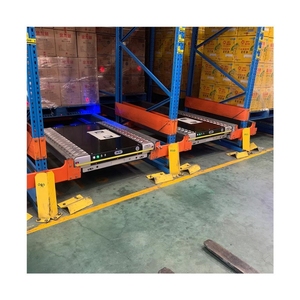

Blue Orange Customizable Colors Industrial Stacking Racks Heavy Duty Steel Pallet Rack System Warehouse Storage Shuttle Racking
Contact Us

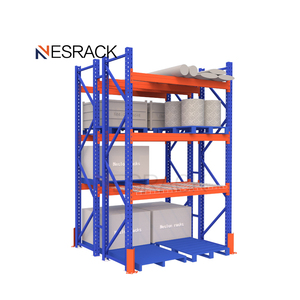

Commercial Grade Warehouse Rack Multi Level Pallet Racking System For Large Scale Logistics And Distribution Center
Contact Us

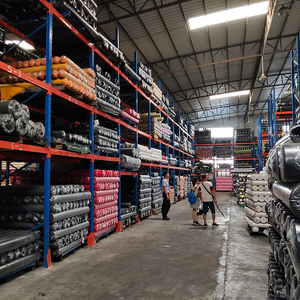

Highly Customizable Free Design Storage Rack for Various Heavy Duty Storing 1000KG 2000KG 3000KG Pounds Tons
Contact Us

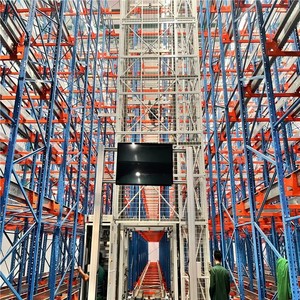

Intelligent Four-Way Steel Shuttle Rack System CE/ISO Certification Automated Pallet Storage Racking for High-Density Warehouse
Contact Us

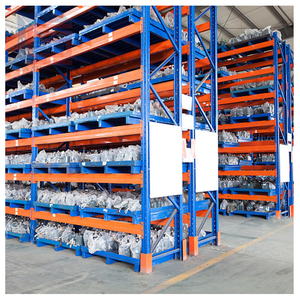

Wholesale China Industrial Pallet Storage Rack Steel Warehouse Racking Adjustable Shelving
Contact Us

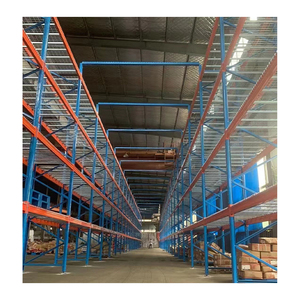

Versatile Storage System Heavy Duty Warehouse Racks Storage Pallet Racking Steel Rack Heavy Duty Pallet Racking By Custom
Contact UsStructural Metallurgy & FEA Engineering of Heavy-Duty & Long Load Racking
When selecting China long load pallet racking suppliers and exporters, structural integrity and raw material traceability serve as the foundation for operational safety and long-term asset security. Modern heavy industrial logistics requires storage structures capable of supporting static and dynamic loads ranging from 1,000 kg up to 4,000 kg per beam level, alongside specialized cantilever configurations designed for continuous long loads like structural steel profiles, aluminum extrusions, timber bundles, and industrial piping.
At ApexDrive Industrial Racking Co., Ltd., structural reliability begins at the molecular level. Prime structural steel grade Q235B and Q355B is sourced exclusively from premier state-owned Chinese steel producers, including Baosteel, Masteel, and Wuhan Iron and Steel (WISCO). High yield-strength Q355B steel delivers an elevated minimum yield strength of 355 MPa, providing a 40% increase in structural load handling compared to standard structural steel grades. This enables slimmer profile cross-sections with increased load thresholds, minimizing dead weight on warehouse floor slabs while maintaining rigorous safety factors exceeding 1.65 under maximum rated loads.
Information Gain Benchmark: Every steel batch processed at ApexDrive undergoes rigorous mechanical testing—including yield point verification, ultimate tensile strength testing, and elongation analysis. Material Test Reports (MTRs) compliant with EN 10204 3.1 are archived and provided with every international order.
Structural stability is calculated using advanced Finite Element Analysis (FEA) modeling software. FEA allows our engineering team to simulate complex stress distribution, torsional deflection, dynamic forklift impacts, and seismic loading up to magnitude 7.0 on the Richter scale. Upright column profiles feature multi-bend cold roll-formed geometries with up to 13 structural folds, dramatically boosting the second moment of area (moment of inertia) and buckling resistance under heavy vertical loads.
| Steel Grade Benchmark | Yield Strength (ReH) | Tensile Strength (Rm) | Ideal Racking Component Application | International Standard Equivalent |
|---|---|---|---|---|
| Q235B (Cold Rolled) | ≥ 235 MPa | 370 - 500 MPa | Standard Beams, Medium Shelf Panels, Baseplates | ASTM A36 / S235JR (EN 10025) |
| Q355B (Structural High-Yield) | ≥ 355 MPa | 470 - 630 MPa | Heavy-Duty Upright Frames, High-Load Cantilever Arms | ASTM A572 Grade 50 / S355JR (EN 10025) |
| Cold-Rolled Coil (SPCC) | ≥ 130 MPa | ≥ 270 MPa | Precision Steel Decking, Step Beam Insert Shelves | JIS G3141 / EN 10130 DC01 |
| Pre-Galvanized Coil (GI) | ≥ 250 MPa | 300 - 420 MPa | Corrosive Environment Decking, Pallet Support Bars | ASTM A653 / EN 10346 S250GD |
Engineering Classification of Industrial Pallet & Long-Load Systems
Industrial warehousing environments demand specialized racking architecture tailored to product geometry, inventory turnover speeds, and handling machinery. A critical mistake in warehouse procurement is attempting to fit specialized long loads into standard selective racking, which creates severe structural hazards and operational bottlenecks.
Heavy-Duty Selective Pallet Racking
The standard for 100% direct pallet accessibility. Engineered with teardrop or structural beam-to-frame connector locks, accommodating load capacities up to 4,500 kg per pair of box beams with L/300 deflection limits.
Heavy-Duty Cantilever Racking
Purpose-built for long loads, bundles, and sheet goods. Eliminates front vertical columns, providing uninterrupted linear storage lengths. Ideal for steel bars, PVC pipes, lumber, and heavy machinery parts.
Radio Shuttle High-Density Racking
Semi-automated pallet storage system featuring battery-powered shuttles inside deep lanes. Maximizes cubic floor space utilization while maintaining fast FIFO/LIFO batch replenishment cycles.
Multi-Tier Mezzanine & Steel Platforms
Rack-supported multi-level platforms that transform vertical air space into usable bin-picking or light assembly floors, multiplying square footage without structural building additions.
Very Narrow Aisle (VNA) Racking
High-bay racking systems utilizing aisle widths down to 1.5 meters. Maximizes height utilization up to 18 meters while offering 100% individual pallet selectivity via specialized turret trucks.
Automated Storage & Retrieval (AS/RS)
Fully automated high-bay rack structures integrated with stacker cranes, conveyor loops, and WMS software, delivering 24/7 continuous operation with zero human picking errors.
Global Procurement & Market Trends in Heavy Racking (2025–2030)
As international supply chains shift toward rapid fulfillment, automated logistics hubs, and decarbonized operations, the strategic procurement of heavy-duty pallet racking and long load systems has evolved from basic steel purchasing into complex engineering procurement. Global B2B buyers must navigate five pivotal macro trends defining warehouse racking infrastructure over the next decade:
1. Deep Integration with Autonomous Mobile Robots (AMRs) and Automated Shuttles
Static storage is rapidly giving way to dynamic automated systems. Modern industrial warehouses are replacing standard forklifts with 4-Way Radio Shuttles and Autonomous Mobile Robots (AMRs). Racking design now requires ultra-precise fabrication tolerances (cumulative hole pitch tolerances within ±2 mm across 12-meter upright lengths) to allow smooth shuttle travel, laser-guided position scanning, and automatic sensor targeting.
2. Advanced Surface Coatings & Cold-Chain Resilience
With global cold chain logistics expanding rapidly for pharmaceuticals, fresh foods, and chemical storage, standard paint finishes are insufficient. Thermal expansion, moisture condensation, and sub-zero temperatures down to -30°C cause micro-cracking in low-grade coatings. Procurement trends favor dual-layer electrostatic powder coating cured at 180°C using Swiss Gema application systems, or heavy-duty Hot-Dip Galvanizing (HDG) compliant with ISO 1461, ensuring 30+ years of rust prevention in high-humidity or sub-zero environments.
3. Modular and Reconfigurable Structural Engineering
Fast-growing third-party logistics (3PL) providers demand flexible racking layouts capable of adapting to shifting client inventory profiles. Modular boltless beam connections, adjustable 50 mm / 75 mm pitch hole configurations, and standardized component matrices allow rapid warehouse layout re-configurations without discarding existing steel assets.
4. Stringent Compliance with Global Structural Standards
Overseas buyers increasingly insist on strict compliance with regional structural integrity standards before issuing purchase orders. Leading Chinese exporters must demonstrate design compliance with EN 15512 (European structural racking code), RMI ANSI MH16.1 (United States racking specification), and AS 4084-2012 (Australian steel storage racking standard). Certified engineering calculations signed off by registered professional engineers (PE) are becoming mandatory for customs clearance and facility insurance coverage.
Future Technological Innovations in Heavy Storage Systems
The engineering landscape for heavy storage racking is experiencing a technological renaissance driven by smart sensors, material sciences, and digital twin management systems. Key technological trends currently shaping high-performance warehouse racking include:
Real-Time Structural Health Monitoring (SHM)
Sensors integrated directly into critical racking nodes, baseplates, and load beams are beginning to transform warehouse maintenance. Strain gauges and IoT impact sensors detect forklift collisions in real time, alerting operations managers to structural micro-fractures, deflection limit breaches, or column out-of-plumb conditions before catastrophic rack collapse occurs.
High-Tensile Cold-Formed Steel Profiles
Advancements in cold roll-forming automation enable processing of ultra-high-strength steel grades. Advanced profile geometry—such as 13-fold profile uprights—delivers higher section modulus while reducing total steel consumption. This structural optimization reduces raw material consumption, lowers ocean shipping freight costs, and minimizes the total embedded carbon footprint of warehouse construction projects.
ApexDrive Industrial Racking — Enterprise Advantages & Manufacturing Benchmarks
Established in September 2006 in Nanjing, China, ApexDrive Industrial Racking Co., Ltd. has grown into a world-class manufacturer and exporter of heavy-duty industrial pallet racking, long load cantilever systems, multi-tier mezzanines, and automated storage solutions. Operating from a modern 20,000 m² manufacturing plant equipped with over 150 sets of precision production machinery, ApexDrive delivers an annual production capacity exceeding 30,000 tons of structural steel storage equipment.
100% Traceable Prime Steel
Direct supply contracts with Baosteel and Masteel ensure Q235B/Q355B steel coils feature full chemical and physical mill certificates with verified wall thickness tolerances.
German-Tech Roll Forming
State-of-the-art continuous cold roll-forming lines maintain cumulative pitch hole tolerances within ±2 mm over 12-meter upright lengths for flawless field assembly.
Robotic Laser Welding
Automated robotic welding manipulators execute full-penetration seam welds on beam end connectors, eliminating manual welding porosity and joint structural weakness.
220m Automated Powder Line
10-stage pre-treatment chemical washing degreasing, rust removal, surface phosphating, and Swiss Gema electrostatic powder spraying cured at 180°C.
Trial Assembly & Factory Inspection
Every major export order undergoes trial assembly in our factory prior to container packing. Upright alignment, beam insertion fit, and safety pins are verified firsthand.
Reinforced Container Packaging
Uprights and beams are bundled with multi-tier heavy steel strapping, edge protectors, and waterproof wrap. Fasteners and accessories ship in fumigated plywood cases.
Technical Support & Sourcing FAQ
Frequently Asked Questions by International Buyers
What technical data is required to generate an accurate rack layout and engineering quotation?
+
To prepare a precise engineering CAD layout and load calculation report free of charge, our engineering team requires: (1) Warehouse building floor plan drawings (CAD or PDF) showing clear height under trusses, column locations, dock door positions, and floor obstacle locations; (2) Pallet unit load details including length, width, height, and maximum weight per pallet (including pallet tare weight); (3) Number of distinct SKUs and total pallet positions required; (4) Forklift truck specifications including maximum lift height, minimum aisle turning radius, and forklift type; (5) Desired inventory flow pattern (FIFO or LIFO) and operating environment temperatures (e.g., standard ambient vs. sub-zero cold storage).
Which structural steel grades and surface treatments are utilized in ApexDrive racking?
+
All primary structural components (upright columns, load beams, diagonal bracing, cantilever arms) are roll-formed from certified Q235B and high-yield Q355B steel sourced directly from Baosteel, Masteel, and WISCO. Standard surface treatment includes a comprehensive 10-stage chemical degreasing, rust-removal wash, surface conversion coating, and high-durability electrostatic powder coating cured at 180°C on our 220-meter automated line. For outdoor applications, corrosive chemical environments, or humid cold storage (-30°C), hot-dip galvanizing compliant with ISO 1461 is available.
How does ApexDrive support overseas racking installation and field assembly?
+
Every export shipment includes comprehensive 3D assembly drawings, step-by-step English installation manuals, component identification tags, and structural torque specifications. Our engineering department provides continuous online video technical guidance during assembly. For large logistics centers, multi-tier mezzanines, or complex AS/RS installations, ApexDrive can dispatch certified installation supervisors or full installation crews directly to your project site overseas to handle turnkey assembly and commissioning.
How are heavy racking components packaged to prevent damage during container shipping?
+
All upright frames, beams, decking panels, and cantilever columns are organized into structural bundles, secured with multi-tier steel strapping, plastic protective corner guards, and wrapped in heavy-duty shrink film. Smaller accessories—including baseplates, anchor bolts, 8.8-grade structural bolts, beam safety locking pins, and row spacers—are packed in reinforced heavy cartons and mounted on fumigated plywood pallets. Package dimensions are optimized for 20GP and 40HQ container loading to maximize cubic efficiency and prevent transit shifting.
What international engineering standards do ApexDrive racking systems comply with?
+
ApexDrive designs and manufactures storage systems in strict compliance with international structural standards, including European EN 15512 / FEM 10.2.02 racking standards, American RMI ANSI MH16.1 specifications, Australian AS 4084-2012 standards, and ISO 9001:2015 Quality Management System standards. All structural systems hold official CE certification for European Union market entry.
What is the typical production lead time for full container export orders?
+
Standard manufacturing lead time for standard selective pallet racking or cantilever racking is 15 to 20 days upon contract confirmation and deposit receipt. Specialized automated systems, such as Radio Shuttle or multi-tier steel platform structures, typically require 25 to 35 days depending on total project tonnage, custom powder coating colors, and specialized accessories.
Ready to Optimize Your Warehouse Storage Capacity?
Contact ApexDrive's senior structural engineers today for free warehouse CAD layout design, detailed structural load calculations, and factory-direct pricing.
