Featured Industrial E-Commerce Racking Systems
Engineered for high-throughput fulfillment centers, cold storage operations, and automated distribution hubs.
Industrial Heavy Duty Electric Mobile Storage Racking System
Motorized mobile bases riding on embedded floor rails, eliminating fixed aisles to maximize warehouse volume utilization up to 85%.

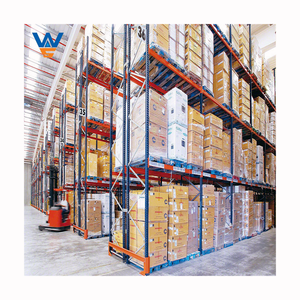

Heavy Duty High Capacity Selective & Drive-in Pallet Racking
Versatile structural steel racking tailored for bulk storage of uniform SKUs with optimal LIFO flow and heavy-duty load handling.

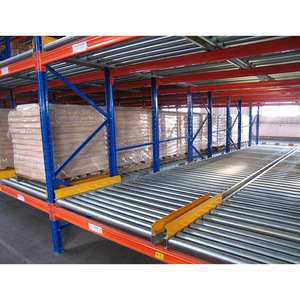

FIFO High Efficiency Gravity Pallet Flow Roller Racks
Sloped roller beds using gravity to automatically slide pallets from loading to picking faces, ensuring dynamic First-In, First-Out stock rotation.
Narrow Aisle (VNA) High-Density Cold Rolled Steel Pallet Rack
Precision-engineered VNA racking reducing aisle widths to 1.5m to unlock 44% more vertical capacity while preserving 100% SKU access.

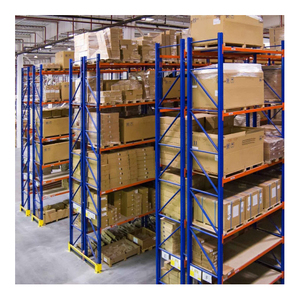

CE Certified Industrial Warehouse Selective Pallet Racks
Fully customizable beam-and-frame racking built from certified Q235B steel with electrostatic powder coat finish for international compliance.

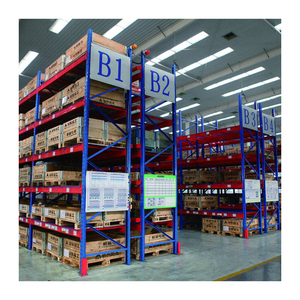

Spliced Steel Drop-Over Deck Panel Heavy Duty Storage Racks
2000kg/tier structural shelf deck panels engineered for safe broken-case picking and non-standard pallet size storage flexibility.

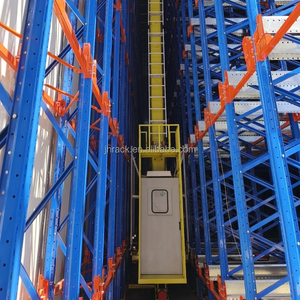

Intelligent AS/RS High-Bay Chain Pallet Conveyor & Racking
Fully automated stacker crane racking integrated with WMS/WCS software, ideal for lights-out automated 24/7 e-commerce operations.

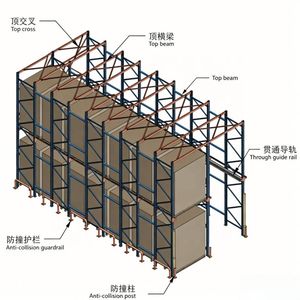

Customizable Drive-in Racking System for 3PL & E-Commerce Hubs
Robust continuous lane storage optimizing floor space utilization for rapid fast-moving consumer goods (FMCG) fulfillment.
Why Global Supply Chains Rely on Our Racking Manufacturing Capabilities
Full spectrum structural engineering, raw steel traceability, and automated cold-roll manufacturing rigor.
Traceable Prime Raw Steel
We source raw structural steel coils exclusively from premier domestic mills including Baosteel, Masteel, and Wuhan Iron & Steel. Every batch of Q235B and Q355B high-tensile steel comes with original mill test reports (MTR), ensuring structural yield strength meets exact project engineering stress loads without compromise.
Precision German-Tech Roll Forming
Equipped with computerized 12-meter continuous roll-forming lines, our manufacturing process achieves an ultra-tight cumulative hole-pitch error tolerance of under ±2.0mm across a 12-meter upright column. This precise alignment prevents torsional stress points during vertical high-bay assembly.
Robotic Manipulator Welding
Beam connector clips and load-bearing bracket assemblies are welded using high-precision robotic manipulators. Automated gas-shielded arc welding delivers continuous, deep-penetration weld seams devoid of slag inclusion, porosity, or micro-cracks, ensuring maximum joint shear strength.
Swiss Gema 220m Powder Line
Components pass through a 10-stage automated pre-treatment system (degreasing, phosphating, and de-rusting) before entering a 220-meter automated powder coating line equipped with Swiss Gema electrostatic spray guns, thermoset curing at 180°C for exceptional impact resistance.
Engineered Seismic Load Safety
Our heavy-duty pallet racking frame designs comply strictly with international structural calculation standards (FEM 10.2.02, RMI, ANSI MH16.1). Upright frames feature an engineered safety factor of 1.8 to withstand dynamic forklift impact forces and resist seismic ground accelerations.
Rigorous Export Packaging Standards
Heavy upright profiles and crossbeams are wrapped in anti-scratch protective film and bundled with multi-tier heavy-duty steel strapping. Hardware, baseplates, and safety locking pins are crate-packed on solid plywood pallets for safe transoceanic container shipping.
Information Gain: The Engineering Shift in E-Commerce Storage Architecture
Modern e-commerce distribution centers cannot operate efficiently on legacy storage layouts. High SKU diversity, unpredictable order surges, and seasonal demand peaks require structural flexibility. Modern e-commerce racking must balance high storage density with immediate SKU accessibility. Utilizing high-strength cold-rolled steel profiles with modular boltless beam adjustments enables fulfillment facilities to recalibrate rack configurations rapidly without structural downtime.
Global E-Commerce Pallet Racking Procurement Trends
Analyzing key technology shifts, automated integration pathways, and operational parameters driving global warehouse investments.
1. Convergence of Pallet Racking & AMR/AGV Robotics
Global procurement data reveals a major shift toward hybrid racking structures designed specifically for Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs). Pallet racking base channels are increasingly retrofitted with magnetic floor guides and QR-code positioning grids, allowing ground-level robotic shuttles to interface directly with high-bay pallet racks.
2. Rapid Adoption of Radio Shuttle High-Density Lanes
Cold chain logistics, food production, and fast-fashion fulfillment are rapidly replacing traditional drive-in systems with Radio Shuttle Racking. Semi-automated battery-powered shuttles operate inside deep storage lanes, handling pallet loading/retrieval via remote radio frequency control. This reduces forklift travel times by up to 50% while protecting the racking structure from impact damage.
3. Multi-Tier Mezzanine Platforms for Micro-Fulfillment
With urban industrial real estate costs soaring globally, e-commerce operators are expanding vertically. Multi-tier rack-supported mezzanine systems utilize available ceiling heights (up to 12 meters), converting unused vertical space into 2 to 4 levels of manual order picking platforms integrated with spiral gravity chutes and vertical cargo lifts.
| Storage Racking System Type | Storage Density | SKU Direct Access | Fulfillment Method | CapEx Level | Target E-Commerce Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | Moderate (40-50%) | 100% Direct Access | Forklift (Counterbalance/Reach) | Low | High SKU velocity, mixed-goods 3PL hubs |
| Very Narrow Aisle (VNA) | High (65-75%) | 100% Direct Access | VNA Turret Truck / Rail Guide | Medium | E-fulfillment centers with limited footprint |
| Radio Shuttle Racking | Ultra-High (80-85%) | Lane Selective (FIFO/LIFO) | Forklift + Battery Radio Shuttle | Medium-High | Cold chain food, beverages, high-volume SKUs |
| Electric Mobile Racking | Maximum (85-90%) | 100% Access on Demand | Motorized Base + Standard Truck | High | Cold storage facilities, expensive urban land |
| Automated AS/RS High-Bay | Maximum (90%+) | Automated WMS Directed | Stacker Cranes / Conveyors | Highest | Mega e-commerce hubs, 24/7 automated operations |
R&D & Engineering Development Trends in Pallet Racking
How metallurgical advancements and finite element analysis (FEA) shape the structural integrity of next-gen racking.
Shift from Q235B to High-Yield Q355B Steel Profiles
To reduce total deadweight while increasing net payload capacities, modern racking structural engineering is transitioning to micro-alloyed Q355B cold-rolled steel. With a minimum yield strength of 355 MPa (compared to 235 MPa for standard carbon steel), Q355B enables thinner wall gauge profiles without sacrificing ultimate buckling strength, reducing shipping weight and environmental carbon footprint.
Modular Boltless Beam Locking Mechanisms
Safety lock pins are critical components preventing catastrophic beam dislodging caused by upward forklift driver error. Advanced teardrop and diamond-slot connector patterns feature automatic gravity-drop safety locks. Made from cold-stamped structural steel, these spring-less locks lock automatically upon beam insertion, ensuring compliance with OSHA and European EN 15512 safety directives.
Advanced Finite Element Analysis (FEA) Optimization
Modern pallet rack structural engineering utilizes Finite Element Analysis (FEA) computer modeling to simulate dynamic stress patterns, frame flexure, beam deflection limits (L/300 standard), and floor anchor shear loads under full seismic scenarios. This prevents over-engineering while guaranteeing structural integrity under heavy dynamic load shifts.
Anti-Corrosion Surface Technology for Cold Storage
Sub-zero cold chain e-commerce fulfillment centers (-25°C) subject structural steel racking to rapid condensation cycles, accelerating rust. Advanced surface finishing now incorporates dual-layer processing: hot-dip galvanizing (HDG) producing a 65µm to 85µm zinc-iron alloy coating, or zinc-rich primer powder coatings engineered specifically for zero-flaking in sub-zero environments.
Our Factory-Direct Turnkey Project Engineering Workflow
From architectural CAD layout modeling to overseas installation supervision, we deliver absolute project accountability.
01
CAD Layout & Load Study
Our structural engineers review clear building heights, column grids, slab load limits, pallet sizes, and forklift turn radii to draft free CAD layouts.
02
FEA Stress Simulation
Engineering verification of column section sizes, beam profiles, connector safety factors, and anchor embedment depths prior to steel cutting.
03
Precision Manufacturing
Continuous CNC roll-forming, robotic welding, 10-stage pre-treatment, and automated Swiss Gema powder coating with strict quality checks.
04
Global Installation Support
Complete export shipping, detailed English assembly manuals, 3D erection drawings, and on-site engineering supervision for overseas projects.
Frequently Asked Questions (FAQ) for Overseas Racking Buyers
Technical guidance from our senior engineering team to streamline your procurement decision.
Q1: What exact technical data is required for a customized warehouse racking CAD layout?
To generate an optimized structural layout drawing and load report, we require: (1) Architectural CAD floor plan or sketch showing clear warehouse height, column pitch, overhead door locations, and fire sprinkler/lighting clearances; (2) Pallet specifications including overall dimensions (W x D x H including goods) and net weight per pallet load; (3) Required total pallet storage capacity or SKU count; (4) Existing or planned forklift truck model, maximum lift height, and minimum right-angle stacking aisle width requirement; (5) Desired inventory flow methodology (FIFO or LIFO).
Q2: How do you verify steel quality and compliance with international racking standards?
All raw materials are structural-grade Q235B and Q355B steel sourced directly from top Chinese state-owned steel mills (Baosteel, Masteel). Every coil shipment is accompanied by a mill test certificate (MTC) verifying chemical composition and mechanical properties. Our structural calculations comply strictly with FEM 10.2.02 (European Racking Federation) and ANSI/RMI MH16.1 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks) standards, and our factory maintains ISO 9001:2015 and CE certification.
Q3: What surface treatment is best suited for humid environments or cold storage facilities?
For standard climate-controlled ambient warehouses, our 220-meter automated powder coating process (degreasing, phosphating, electrostatic spray, and 180°C thermal curing) delivers superior abrasion resistance and anti-corrosion protection. For high-humidity environments, outdoor staging yards, or sub-zero cold storage warehouses (-25°C), we recommend Hot-Dip Galvanizing (HDG) per ISO 1461. HDG immerses steel components in molten zinc, creating a 65-85 micron thick metallurgically bonded zinc-iron protective layer that prevents rust formation under severe condensation cycles.
Q4: How are upright frames and crossbeams packed to eliminate transit damage during ocean freight?
Over-the-ocean export shipping subjects cargo to vibration and humid salt air. We bundle heavy-duty upright frames and beam sections using multi-tier high-tensile steel strapping combined with heavy corrugated corner protectors and protective plastic wrap. Small hardware accessories, including baseplates, row spacers, expansion anchor bolts, and beam safety pins, are packed into reinforced corrugated cartons and strapped onto fumigation-free plywood pallets with clear box labeling for easy on-site inventory auditing.
Q5: Can you provide overseas on-site installation services or technical erection supervision?
Yes. Every project includes comprehensive English installation manuals, step-by-step assembly drawings, and CAD erection blueprints. We provide real-time remote video technical support for local installation crews. For large-scale distribution centers or automated AS/RS projects, we can dispatch senior field installation engineers to supervise erection, perform structural plumbness/leveling checks, and execute load-testing procedures on-site.
Optimize Your Warehouse Storage Capacity Today
Get a free engineering consultation, custom CAD layout drawing, and factory-direct price quotation within 24 hours.
