Featured Heavy-Duty Pallet Storage Systems
Direct from China's leading warehousing infrastructure facility. Custom engineered to support high-density throughput, seismic resilience, and extreme temperature stability.

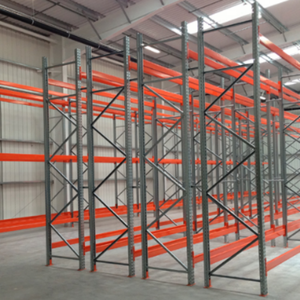

Double Deep Pallet Rack Heavy Duty Pallet Storage Racking 500kg-3000kg Per Layer Construction Warehouse Storage
Customized Radio Shuttle Pallet Racking Automated Semi-Automatic Storage Racking for Logistics Centers
Kaku ASRS Smart Pallet Racking 6-Layer Automated Storage Retrieval System Galvanized Steel Construction 1300kg/Pallet Capacity
Heavy Duty Double Deep Pallet Racking, Universal Steel Storage Shelves for Factory, Workshop & Cold Room
Heavy Duty Shelving 3000kg Large Capacity Warehouse Storage Pallet Rack Shelves Units Each Layer Stacking Racks & Shelves
ISO9001 CE Euro Standard Outdoor Pallet Rack Storage Racking System Adjustable
Jracking Heavy Duty Warehouse Racks Shelves RMI Certified Steel Teardrop Pallet Racking For Cold Storage Warehouse
Narrow Aisle VNA Pallet Racking System Adjustable Heavy Duty Cold Rolled Steel Powder Coated High-Density Logistics E-commerce
20,000 m²
Modern Manufacturing Base
30,000 Tons
Annual Steel Processing Capacity
6,000+
Global Projects Successfully Installed
100% FEA
Structural Integrity Verified
1. Global Logistics Infrastructure & China's Pallet Racking Export Excellence
In an era defined by volatile supply chain dynamics, rapid e-commerce expansion, and hyper-dense inventory throughput, the global logistics sector faces an unprecedented imperative: maximizing volumetric warehouse efficiency while minimizing operational expenditures (OpEx). At the structural core of this industrial transformation sits the high-performance industrial pallet storage system. As the primary destination for international logistics procurement, China has evolved from a bulk steel fabricator into a world-class center for precision storage engineering, structural steel innovation, and automated intralogistics system design.
Selecting a top-tier Chinese exporter for pallet racking systems requires far more than comparing per-ton steel quotes. Modern supply chain engineering demands an acute evaluation of structural yield strength (Q235B vs. Q355B low-alloy steel), cold-roll profile geometry, seismic resistance standards (RMI, EN 15512, FEM 10.2.02), and anti-corrosion surface chemistry. Leading manufacturers like ApexDrive Industrial Racking Co., Ltd. operate as integrated solution providers—offering free structural engineering CAD calculations, structural finite element analysis (FEA), pre-shipment trial assemblies, and complete lifecycle technical support across 60+ countries.
High-Yield Steel Alloys
Formed exclusively from Baosteel and Masteel structural coils (Q235B & Q355B). Delivers superior tensile capacity (up to 510 MPa) and high fatigue endurance under high-frequency loading cycles.
Precision Cold Roll Forming
Continuous 22-stage rolling lines achieve continuous upright profiles up to 12 meters without splices, maintaining cumulative punch hole pitch tolerances within ±2.0 mm across the entire length.
Seismic & FEA Safety Compliance
Engineered to absorb M7+ seismic accelerations. Upright column profiles feature an integrated safety factor of 1.84, with maximum allowable beam deflection capped at L/300 under nominal unit loads.
2. Strategic Future Procurement Trends in Pallet Storage Systems (2025–2030)
The international logistics and warehouse rack procurement landscape is undergoing a structural transition driven by rising industrial land prices, labor shortages, and stringent sustainability guidelines. Overseas buyers, procurement managers, and logistics consultants are recalibrating their capital expenditure (CapEx) strategy to focus on three distinct technical vectors:
A. The Shift from Static Selective Racking to Semi-Automated & High-Density Systems
While traditional Selective Pallet Racking remains the baseline for warehouses with high SKU variability (100% direct pallet accessibility), procurement volume is moving rapidly toward high-density systems such as Radio Shuttle Racking, Very Narrow Aisle (VNA), and Double-Deep Racking. Radio Shuttle systems utilize remote-controlled battery vehicles to transport pallets within deep storage lanes, increasing floor space utilization by 65% to 85% compared to standard layout designs while eliminating forklift aisle collision hazards.
B. Modular Automation Integration Ready (AS/RS Transitioning)
Modern enterprise buyers are avoiding single-purpose infrastructure. Storage racking installed today must feature modular hole-punching and upright structural capacities capable of converting into fully automated stacker-crane Automated Storage & Retrieval Systems (AS/RS) or integrating with Autonomous Mobile Robots (AMRs). Pre-engineering the structural tolerances of racking systems ensures future upgrade paths without structural tearing or full facility redesigns.
C. Cold Chain Logistics Optimization & Eco-Surface Chemistry
With global cold chain logistics expanding across pharmaceutical and fresh food distribution, rack buyers require steel systems optimized for sub-zero operating environments (-30°C). Standard liquid paint fails under thermal cycle contraction, causing micro-cracking and rust propagation. Exporters utilize Swiss Gema 220-meter automated electrostatic powder coating powder lines (180°C curing) or continuous Hot-Dip Galvanizing (HDG) to ensure lifetime adhesion without structural embrittlement.
| Racking Architecture | Storage Density Rating | Pallet Accessibility | Forklift / Equipment Requirement | Ideal Application Profile |
|---|---|---|---|---|
| Selective Pallet Racking | Baseline (40% - 50%) | 100% Direct Access | Standard Counterbalance / Reach Truck | High SKU counts, general distribution, fast picking. |
| Double Deep Racking | High (60% - 70%) | 50% Direct Access (LIFO) | Deep-Reach Forklift Attachment | Multiple pallets per SKU, food & beverage storage. |
| Radio Shuttle Racking | Maximum (80% - 90%) | Lane-Based FIFO / LIFO | Standard Lift Truck + Radio Shuttle Unit | Cold storage, bulk manufacturing, high-volume SKUs. |
| VNA (Very Narrow Aisle) | Ultra-High (70% - 85%) | 100% Direct Access | VNA Turret Truck / Magnetic Guide Rail | High building clearance, premium land cost logistics hubs. |
| High-Bay AS/RS System | Maximum (90% - 95%) | Fully Automated Computer Controlled | Automatic Stacker Cranes + WMS Software | 24/7 dark warehouse operations, pharmaceutical hubs. |
3. Technological Innovations & Structural Engineering Developments
The engineering behind China's top pallet storage racking exports has evolved significantly beyond basic structural steel fabrication. Advanced finite element simulation, automated robotic manufacturing, and intelligent material selection form the benchmark for tier-1 original equipment manufacturers (OEMs).
Robotic Welding Manipulators
Beam connector brackets are joined to load-bearing box beams using dual-head robotic welding cells. This guarantees zero porosity, uniform weld bead geometry, and eliminates manual joint cracking under dynamic shock loads.
Self-Locking Connector Hooks
Advanced beam connector plates utilize precision-stamped 3-hook or 4-hook configurations equipped with automatic spring-loaded steel safety pins, preventing accidental dislodgement caused by forklift mast upward force.
Cold-Formed Upright Optimization
Complex multi-rib upright column cross-sections (up to 13 bending points) maximize the moment of inertia and buckling resistance while optimizing steel mass, saving significant freight cost for international shipping.
Furthermore, software-driven customization plays a decisive role. Advanced manufacturing facilities employ automated BIM (Building Information Modeling) tools to simulate real-world physical stresses, seismic acceleration coefficients, and aisle clearance limits before a single coil of steel is unrolled.
4. Enterprise Advantage: Why Global Logistics Buyers Partner With ApexDrive
ApexDrive Industrial Racking Co., Ltd. (established September 2006 in Nanjing, China) stands as a benchmark manufacturer of heavy-duty industrial warehouse storage racking systems. Spanning over 20,000 square meters of modern manufacturing base equipped with over 150 specialized machinery sets, our annual throughput capacity exceeds 30,000 tons of structural steel storage equipment.
Traceable Premium Raw Material
We procure steel exclusively from Tier-1 state mills including Baosteel, Masteel, and Wuhan Iron & Steel. All batches include certified chemical breakdown and tensile test mill certificates (Q235B and Q355B structural grades).
Complete Rigorous Surface Pre-treatment
Components pass through an automated 10-stage chemical degreasing, acid pickling, rust removal, and phosphate wash sequence before electrostatic powder application on our 220-meter continuous coating line.
ISO 9001:2015 & CE Certified Quality Systems
Every production run is subject to structural load sampling, trial pre-assembly testing, and weld integrity checks. Full compliance certified under European CE standards and ISO quality systems.
Export-Engineered Packaging & Logistics
Heavy-duty upright frames and beams are bundled with multi-tier high-tensile steel strapping and protective edge corner guards. Small components are packed in plywood pallets to optimize sea container payload.
Frequently Asked Procurement & Technical Questions
Clear, engineering-backed answers to support logistics buyers, structural engineers, and facility project managers during procurement planning.
1. What key engineering technical data is required to generate an optimized warehouse racking design?
To prepare a compliant CAD structural layout, load capacity calculation report, and formal quotation, our engineering team requires:
• Architectural CAD drawings or building sketches displaying interior clear height, column grid spacing, floor slab slab thickness, door locations, and overhead sprinkler/lighting clearances.
• Pallet parameters: Width, depth, total loaded height, and maximum gross weight per pallet load.
• Forklift specifications: Minimum aisle width requirement, maximum lift height, and turning radius.
• Environmental conditions: Operating temperature range (e.g., standard ambient vs. -25°C cold storage) and local seismic acceleration zone data.
• Architectural CAD drawings or building sketches displaying interior clear height, column grid spacing, floor slab slab thickness, door locations, and overhead sprinkler/lighting clearances.
• Pallet parameters: Width, depth, total loaded height, and maximum gross weight per pallet load.
• Forklift specifications: Minimum aisle width requirement, maximum lift height, and turning radius.
• Environmental conditions: Operating temperature range (e.g., standard ambient vs. -25°C cold storage) and local seismic acceleration zone data.
2. How do Q235B and Q355B steel grades differ in pallet rack load capacity?
Q235B steel offers a minimum yield strength of 235 MPa and a tensile strength range of 370–500 MPa, making it the ideal cost-effective standard for medium-to-heavy selective racking profiles. Q355B is a low-alloy, high-strength steel offering a minimum yield strength of 355 MPa (over 50% stronger than Q235B). Utilizing Q355B steel for heavy-duty upright frames or long-span beams allows engineers to achieve higher load capacities while reducing cross-sectional material thickness—optimizing total shipping weight for export freight containers.
3. Can ApexDrive racking systems be integrated into existing third-party installations?
Yes. Our engineering division specializes in custom roll-forming profile matching. If you are expanding an existing warehouse equipped with standard Teardrop profiles, Euro-style 50mm pitch punchings, or 75mm / 76.2mm pitch framing systems, we produce pitch-compatible beam connectors and upright shapes that seamlessly interface with your existing rack components while maintaining certified structural load metrics.
4. What international quality certifications and structural design codes do your products satisfy?
Our design calculations, structural profiles, and manufacturing processes fully comply with:
• ISO 9001:2015 Quality Management Certification.
• CE Mark compliance for European industrial structural equipment.
• Structural design based on EN 15512 (Steel static storage systems), FEM 10.2.02, and ANSI/RMI MH16.1 specifications.
• ISO 9001:2015 Quality Management Certification.
• CE Mark compliance for European industrial structural equipment.
• Structural design based on EN 15512 (Steel static storage systems), FEM 10.2.02, and ANSI/RMI MH16.1 specifications.
5. How does ApexDrive support overseas structural installation and assembly?
Every exported project includes complete structural CAD installation drawings, component marking tags, step-by-step 3D assembly guides, and high-definition video walkthroughs. For complex installations, high-bay AS/RS systems, or multi-tier mezzanine floors, our structural project engineers are available to provide live remote video commissioning or be dispatched directly to your job site to supervise local assembly teams.
6. How are rack components protected against dynamic sea transit corrosion?
Long-distance ocean shipping subjects cargo to elevated humidity and salt air exposure. We utilize a multi-layered export protection standard: steel frames and beams are double-wrapped in moisture-proof stretch film, padded with heavy corrugated edge protectors, and secured with multi-tier steel strapping onto wood pallets. All hardware, bolts, and safety accessories are packed in sealed, heavy-duty wooden shipping crates with desiccant packs.
Ready to Optimize Your Warehouse Capacity & Storage Efficiency?
Contact our senior storage engineering team today for a complimentary warehouse CAD layout design, structural load assessment, and direct factory-direct exporter quotation.
