ApexDriveRACKING
Factory-Direct Catalog
High-Performance Automated & Heavy-Duty Pallet Racking Systems
Explore our core wholesale automated pallet handling configurations designed for maximum volume utilization and seamless warehouse execution.
Industrial Detachable Commercial Adjustable Pallet Vertical High Quality Stillage Pallet Storage Rack
Send an Inquiry
Customized Used High Quality Steel Heavy Duty Automatic Storage System Shuttle Pallet Rack for Warehouse
Send an Inquiry
Kaku ASRS Smart Pallet Racking 6-Layer Automated Storage Retrieval System Galvanized Steel Construction 1300kg/Pallet Capacity
Send an Inquiry
Automated Stackable Metal Shelves Storage Racks & Shelving Units Warehouse Asrs Pallet Shuttle Racking System
Send an Inquiry
Steel Pallet Rack System Heavy Shelving Storage Shelf Selective Heavy Duty Rack Steel Shelving Warehouse Racking For Wholesale
Send an Inquiry
Jracking EU Standard Warehouse Storage Racks Custom Heavy-Duty Pallet Racking System for Industrial Warehouse
Send an Inquiry
Heavy-Duty Durable Steel 3 Layer Industrial Pallet Racks Adjustable Bolt Structure Powder Coated Corrosion Protection Warehouse
Send an Inquiry

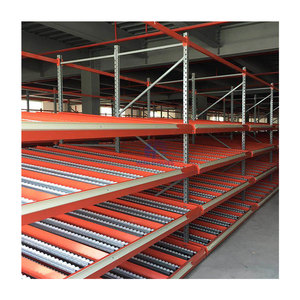

Ebb And Flow Vertical Rack Pallet Flow Racking Track Customized Gravity Carton Flow Racking System
Send an Inquiry
Technical Whitepaper
Engineering Standards for Next-Gen Automated Pallet Handling Systems
An authoritative analysis on structural metallurgy, automated storage architecture, and ROI optimization for B2B supply chain infrastructure.
Modern supply chain hubs face compounding challenges: escalating urban land costs, severe labor shortages, and stringent throughput demands driven by omni-channel retail. To mitigate these operational bottlenecks, enterprise procurement managers are shifting away from traditional low-density static storage toward Automated Pallet Handling Systems (APHS). As a premier China wholesale manufacturer, our engineering framework integrates cold-formed structural steel fabrication with real-time Warehouse Management Software (WMS) control to achieve maximum cubic storage density and zero-error material handling.
Key Information Gain: Structural Load Integrity & Steel Grade Selection
Not all industrial racking systems perform identically under dynamic automated loads. While standard storage racks utilize generic hot-rolled steel, high-performance automated systems require certified Q235B and Q355B high-tensile structural steel grades sourced directly from top-tier metallurgy mills (such as Baosteel and Masteel). The yield strength of Q355B ($f_y \ge 355 \text{ MPa}$) provides an enhanced safety factor under continuous dynamic impact from automated stacker cranes and radio shuttle carts.
Architectural Breakdown of Automated Pallet Handling Technologies
Selecting the optimal automated handling matrix depends heavily on SKU variance, pallet turn rates, floor load capacities, and temperature requirements. The technical parameters below illustrate how our customized manufacturing solutions align with global industry standards (FEM 10.2.02, RMI, and EN 15512):
| Handling System Architecture | Storage Density | Operational Flow | Payload Capacity | Ideal Application Environment |
|---|---|---|---|---|
| AS/RS (Stacker Crane High-Bay) | Ultra-High (Up to 45m Height) | Automated FIFO / LIFO | 1,000kg – 3,000kg / Pallet | Automotive, FMCG, E-Commerce Hubs, High-Bay Logistics |
| Pallet Radio Shuttle System | High (Deep Lane Channel) | FIFO or LIFO Selectable | 500kg – 1,500kg / Pallet | Cold Storage (-30°C), Food & Beverage, Chemical Warehousing |
| Gravity Pallet Flow Racking | High (Dynamic Roller Tracks) | Strict FIFO (First-In, First-Out) | 800kg – 1,200kg / Pallet | Perishable Goods, Fast-Moving Consumer Goods, Buffer Stock |
| Very Narrow Aisle (VNA) Racking | Medium-High (1.8m Aisle Width) | 100% Direct Selectivity | 1,000kg – 2,000kg / Level | Pharmaceutical Distribution, High SKU Count Spare Parts |
Metallurgical Precision & Surface Protection Standards
System reliability begins at the molecular level. Our automated racking profiles undergo precision cold roll-forming on multi-stage automated lines designed with German tooling technology. Cumulative hole-pitch tolerances are strictly controlled within ±2mm over a 12-meter continuous vertical upright. This geometric exactness prevents structural rack sway and eliminates crane alignment errors during high-speed automated storage and retrieval cycles.
For corrosion resistance, components undergo a comprehensive 10-stage pretreatment process: chemical degreasing, acid rust removal, zinc phosphate coating, and ultrasonic rinsing. Subsequently, parts pass through a 220-meter automated electrostatic powder coating line utilizing Swiss Gema application technology. Cured at a constant 180°C, the resulting thermosetting epoxy-polyester surface withstands harsh ambient conditions, chemical spills, and sub-zero cold-room humidity without micro-cracking.
Automation Modules
Core Technological Innovations Driving System Efficiency
Discover how integrated smart hardware elevates wholesale racking into an autonomous logistics asset.
LiFePO4 Intelligent Radio Shuttles
Equipped with high-capacity Lithium Iron Phosphate batteries, our shuttle cars operate continuously for 8+ hours per charge, navigating deep lanes at speeds up to 1.2 m/s with laser positioning accuracy.
WMS / WCS API Middleware
Our automation systems natively integrate with SAP, Oracle, and proprietary WMS platforms, ensuring real-time inventory visibility, dynamic slotting, and automated stock rotation auditing.
Seismic-Resistant Beam Connectors
Specially engineered 3 to 5-claw beam connectors with automatic safety lock pins prevent accidental dislodgement from high-speed forklift or stacker crane impact, tested to Zone 4 seismic ratings.
Future Procurement Outlook
Key Procurement & Technological Trends Shaping Automated Pallet Handling (2025–2030)
Strategic foresights for supply chain leaders preparing for next-generation automated warehousing ecosystems.
1. Transition to "Dark Warehousing" Architecture
Procurement strategies are rapidly prioritizing fully unlit automated facilities. By removing human lighting and climate comfort requirements, automated shuttle and AS/RS facilities reduce facility power consumption by up to 35% while operating 24/7 uninterruptedly.
2. Modular & Scalable Shuttle Swarms
Traditional rigid conveyor belts are being replaced by modular, self-organizing shuttle fleets. B2B buyers now request modular track networks where additional radio shuttles can be added dynamically during peak seasonal surges.
3. Ultra-Low Temperature Cold Chain Optimization
With global pharmaceutical and frozen food demand surging, automated handling systems designed specifically for -30°C freezer rooms are seeing high order volumes. Specialized low-temperature lubricants and cold-resistant sensors prevent system freeze-up.
Manufacturer Advantage
Why Global Buyers Partner with Our Manufacturing Hub
Direct-from-factory engineering excellence, validated quality management, and complete end-to-end execution.
01
Raw Material Traceability & Certification
Every batch of Q235B and Q355B steel is accompanied by official Mill Test Certificates (MTC) verifying yield strength, tensile strength, and chemical composition. We never compromise on structural thickness.
02
Free Engineering CAD Layouts & FEA Stress Analysis
Our in-house technical team provides zero-cost CAD architectural layout drawings, 3D structural renderings, and Finite Element Analysis (FEA) reports to optimize your space utilization before contract signing.
03
Pre-Shipment Trial Assembly & Stringent QC
To ensure flawless installation on overseas job sites, critical racking components and shuttle tracks undergo trial mock-ups in our Nanjing factory prior to export packaging and container loading.
04
Global Turnkey Logistics & On-Site Support
We supply steel-strapped export packaging, clear installation manuals, step-by-step video guidance, and optional overseas installation engineer dispatch to guarantee project commissioning on deadline.
Buyer Insights
Frequently Asked Questions for Automated Pallet System Sourcing
Get clear, technical answers directly from our senior project engineering team.
What initial data is required to design a customized automated pallet handling layout?
To generate an accurate engineering proposal, we require: (1) Warehouse building CAD drawings showing clear height, column grids, floor slab load ratings, and door/sprinkler locations; (2) Pallet specifications including width, depth, height, and gross weight per unit load; (3) Required inventory capacity (total pallet positions) and throughput requirements (pallets moved per hour); (4) Operating temperature conditions (ambient vs. cold storage).
How does a Radio Shuttle system compare to an AS/RS stacker crane system in terms of cost and deployment?
Radio Shuttle systems offer a significantly lower initial capital expenditure (CAPEX) and faster deployment timeline than full AS/RS systems. They utilize standard heavy-duty forklifts to load shuttles into deep-lane racking channels. Conversely, AS/RS systems require higher initial investment and dedicated stacker crane rails but provide complete 24/7 automation, higher vertical reach (up to 45m), and zero manual forklift labor.
What international structural and safety codes do your automated racking systems comply with?
Our automated storage and racking systems are engineered and fabricated in strict accordance with European FEM 10.2.02 standards, EN 15512 structural design specification, American RMI guidelines, and ISO 9001:2015 quality management procedures. CE certificates are provided for all automation machinery.
How are heavy racking components protected against damage during international ocean transport?
All structural uprights and beams are bundled with multi-tier heavy-duty steel strapping and plastic film wrap to prevent surface scuffing. Small connecting components, baseplates, bolts, and safety pins are securely packed in heavy-duty wooden crates or cartons mounted on export-standard plywood pallets for easy forklift unloading.
Can your automated systems be integrated with our existing enterprise ERP or WMS?
Yes. Our automated handling controls utilize open API protocols (TCP/IP, RESTful API, Modbus) allowing direct handshake between our WCS (Warehouse Control System) and third-party software platforms such as SAP, Oracle, Manhattan, or custom-built enterprise ERP systems.
Ready to Optimize Your Warehouse Density & Automation Throughput?
Contact our senior storage design team today for free technical consultation, custom CAD layout designs, and competitive factory-direct wholesale pricing.
Send an Inquiry
