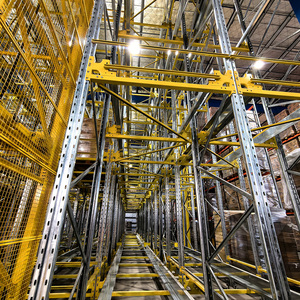

Manufacturer Automation Warehouse Cold Storage Racking High Density 4Way Shuttle ASRS Automated Storage Retrieval Rack System
Get a Quote

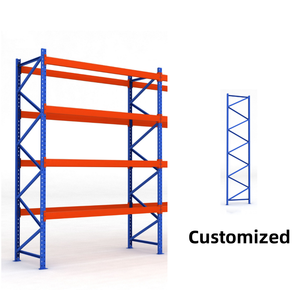

Warehouse Steel Heavy Duty Beam Rack Pallet Rack Store Shelf Warehouse Racking System For Racking Rack Shelf Factory Shelf
Get a QuoteDeep Lane Pallet Racking Architectural Whitepaper: Maximizing Cube Density & Intralogistics Efficiency
Modern industrial supply chains demand radical spatial efficiency and high-velocity material movement. As a premier China wholesale deep lane pallet racking manufacturer and supplier, ApexDrive Industrial Racking Co., Ltd. delivers structural engineering solutions designed to replace underutilized selective aisle layouts with ultra-dense deep-lane configurations. Deep lane pallet racking engineered systems store multiple pallet loads in continuous channels, substantially eliminating operational aisles and increasing floor space utilization by 60% to 85% compared to standard racking formats.
Selecting the optimal deep-lane architecture requires balancing throughput requirements, Stock Keeping Unit (SKU) profiles, inventory turnover velocity, and structural loading compliance. Whether implementing drive-in racking, push-back racking, radio shuttle channels, or fully automated stacker crane AS/RS configurations, structural integrity and precision manufacturing remain non-negotiable foundations for operational safety and long-term return on investment (ROI).
Information Gain: Floor Space vs. Cube Utilization Dynamics
Standard selective pallet racking reserves up to 65% of warehouse floor area purely for forklift aisles. Deep-lane storage formats compress aisle allocation to as low as 15% to 20%, multiplying total pallet storage positions per square meter. In cold storage environments where operating costs reach $120–$200/m³ annually, deep-lane shuttle and AS/RS implementations reduce energy consumption per pallet position by up to 40%.
Architectural Comparison
Deep-Lane Storage Technologies & Operational Dynamics
Drive-In / Drive-Through Racking
Forklifts drive directly into structural storage bays on cantilevered support rails. Ideal for low SKU counts with high pallet volume utilizing Last-In, First-Out (LIFO) or First-In, First-Out (FIFO) stock rotation.
Radio Shuttle Racking (2D/4D)
Battery-powered autonomous shuttles transport pallets within deep channels. Eliminates forklift rack entry, radically reducing frame damage risks and supporting high-speed FIFO/LIFO execution.
Push-Back Racking Systems
Nested wheeled carts ride on inclined structural steel rails. As pallets are loaded, subsequent pallets push earlier ones back up to 6 positions deep, offering automated gravity-fed LIFO access.
Deep-Lane Automated AS/RS
High-bay steel structures (up to 40m height) integrated with automated stacker cranes and satellite shuttles. Provides 24/7 autonomous operating capability with WMS/WCS real-time control.
VNA (Very Narrow Aisle) Systems
Combines selective 100% pallet accessibility with narrow aisle footprints (1.5m–1.8m). Guided by floor wire or steel rails for precision high-bay reach trucks.
Cold Chain Optimized Formats
Custom structural cold-storage profiles engineered with specialized low-temperature Q355B steel grades and hot-dip galvanized coatings resilient to -30°C thermal conditions.
Deep-Lane Storage Engineering Matrix: Technical Comparison
To assist warehouse directors, procurement teams, and logistics engineers in selecting the optimal high-density infrastructure, the matrix below details key structural, operational, and financial performance parameters.
| System Type | Storage Density | Stock Access (FIFO/LIFO) | Aisle Space Required | Forklift Risk Level | Relative Cost per Pallet Position |
|---|---|---|---|---|---|
| Drive-In Racking | Very High (75%) | Strict LIFO (FIFO with Drive-Through) | Minimal (Single Access Aisle) | High (Drivers enter rack structure) | Low - Moderate |
| Radio Shuttle Racking | Extreme (85%+) | Flexible (FIFO or LIFO programmable) | Low (Aisle only at entry faces) | Extremely Low (Shuttle enters lane) | Moderate (High ROI) |
| Push-Back Racking | High (65%-70%) | Strict LIFO (Up to 6 pallets deep) | Moderate (Front access aisle) | Low - Medium | Moderate |
| Deep-Lane AS/RS | Maximum (90%+) | Fully Automated Software Controlled | Zero Operational Aisle (Crane only) | Zero (100% Automated handling) | High Initial Capital investment |
| Standard Selective | Low (35%-40%) | 100% Direct Selectivity | High (3.0m - 3.8m aisles) | Low | Low Baseline |
Metallurgical Engineering, Steel Selection & Structural Integrity
The structural reliability of heavy-duty deep lane pallet racking relies entirely on certified raw material sourcing, profile design, and cold-roll forming precision. At ApexDrive Industrial Racking, all structural components are manufactured using premium-grade Q235B and Q355B cold-rolled carbon steel sourced directly from Tier-1 state steel mills, including Baosteel, Masteel, and Wuhan Iron and Steel Corporation.
1. Tensile Strength and Structural Yield Dynamics
Upright columns and structural load beams undergo rigorous structural load calculation compliant with international engineering standards, including FEM 10.2.02 (European Federation of Materials Handling), EN 15512, and RMI (Rack Manufacturers Institute) guidelines. Q355B structural steel provides a minimum yield strength of 355 MPa, delivering superior structural load bearing capacities under dynamic heavy-duty stresses and seismic loading conditions (rated for M7 seismic zones).
2. Precision Cold-Roll Forming & Hole-Pitch Tolerance
Utilizing advanced German-engineered continuous cold-roll forming lines, upright profiles (up to 12 meters in a single seamless length) are formed with a cumulative hole-pitch tolerance held within ±2.0 mm over 12 meters. This microscopic precision ensures absolute structural verticality, uniform beam connector locking, and balanced load dissipation across frame assemblies.
3. 10-Stage Surface Treatment & Powder Coating Science
Corrosion resistance dictates racking longevity in industrial environments. Manufacturing components undergo a full 10-stage chemical pre-treatment process—including automated solvent degreasing, acid rust removal, zinc phosphating, and deionized water rinsing—before entering our continuous 220-meter automated electrostatic powder coating line. Powered by Swiss Gema automatic spray equipment, thermosetting epoxy-polyester powders are cured at 180°C to achieve a uniform 60–80 μm dry film thickness resistant to impacts, chemical abrasion, and humidity.
Strategic Sourcing & Future Trends in Deep-Lane Warehousing (2025–2030)
As global supply chains face escalating labor costs, real estate pressures, and sustainability imperatives, deep lane pallet racking procurement is undergoing rapid technological evolution. Global buyers sourcing from China must align their technical specifications with emerging industry trends to ensure long-term warehouse adaptability.
1. Hybridization of Autonomous Shuttles and AMR/AGV Systems
The boundary between static racking and dynamic robotics is dissolving. Modern deep-lane radio shuttle systems are increasingly integrated with Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs). Four-way shuttles (4D Shuttles) capable of traversing both storage lanes and cross-aisles without stacker cranes are fast replacing traditional drive-in systems in e-commerce and cold-storage operations.
2. Cold-Chain Thermal Energy Optimization
With global cold chain logistics expanding, storage facilities are prioritizing spatial condensation to lower refrigeration costs. Deep-lane shuttle racking minimizes internal air volume requirements. Furthermore, specialized hot-dip galvanized surface treatments (HDG) exceeding 65–85 μm zinc thickness are becoming standard procurement specifications to prevent steel oxidation under intense sub-zero thermal cycling.
3. Modular Boltless Assembly and IoT Load Monitoring
Modern warehouse operators demand agile structures that adapt to evolving pallet sizes. Next-generation deep-lane systems utilize modular boltless beam connections fitted with 8.8-grade safety locking pins. Leading-edge installations are now embedding IoT strain-gauge sensors inside structural uprights to provide real-time structural overload alerts and collision telemetry to warehouse management platforms.
Frequently Asked Questions
Deep Lane Racking Procurement & Engineering FAQ
Direct answers from our senior structural engineers to facilitate global procurement planning.
What essential parameters are required to calculate a deep-lane racking layout?
To generate an accurate CAD layout and load calculation report, we require: (1) Warehouse building CAD drawing indicating clear height under joists, column grids, floor slab capacity, and obstacle locations; (2) Pallet dimensions (Length x Width x Height including cargo overhang); (3) Maximum load weight per pallet load; (4) Total SKU count and required total pallet position capacity; (5) Forklift specifications (type, minimum aisle turning radius, maximum lift height); and (6) Required stock rotation (FIFO or LIFO).
How does Radio Shuttle Racking compare to traditional Drive-In Racking?
While Drive-In racking requires forklifts to physically drive inside storage lanes (increasing collision risk and operational cycle time), Radio Shuttle racking uses an autonomous electric shuttle vehicle inside the lane. This allows much deeper storage lanes (up to 40+ pallets deep), faster loading/unloading cycles, significantly higher operator safety, and support for both FIFO and LIFO configurations.
What steel grades and surface treatments are utilized in manufacturing?
We exclusively utilize prime structural carbon steel Q235B and high-tensile Q355B sourced from major Chinese mills (Baosteel, Masteel). Finish options include electrostatic epoxy-polyester powder coating cured at 180°C for ambient warehouses, or heavy-duty Hot-Dip Galvanizing (HDG) for outdoor, highly humid, or cold-storage environments operating down to -30°C.
How are heavy racking components packaged to prevent ocean shipping damage?
Upright frames and horizontal beams are securely bundled using multi-tier high-tension steel strapping with heavy cardboard edge protectors and protective plastic film wrapping. Small components, connectors, baseplates, and hardware are packed in reinforced export cartons secured on solid fumigation-free plywood pallets for quick customs clearance and easy forklift unloading.
Can ApexDrive support installation for international project sites?
Yes. Every export project includes comprehensive 3D assembly drawings, structural component lists, and step-by-step English installation manuals. Our engineering team provides real-time online technical guidance, and for major warehouse projects or automated AS/RS installations, certified installation engineers can be dispatched to your project site.
Ready to Maximize Your Warehouse Storage Capacity?
Connect directly with our senior structural racking engineers today. Receive a custom 3D CAD layout, structural load calculation report, and factory-direct wholesale quotation within 24 hours.
Get a Quote
