Explore our heavy-duty warehouse rack inventory. Engineered for optimal space utilization, seamless material handling, and high-density storage applications.

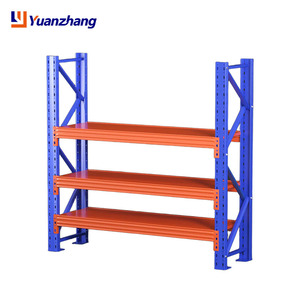

Heavy Duty Double Deep Pallet Racking, Universal Steel Storage Shelves for Factory, Workshop & Cold Room
High-density double-deep storage configuration engineered to reduce aisle space by 50% while maintaining fast pallet access for cold storage and general logistics.
Get Catalog

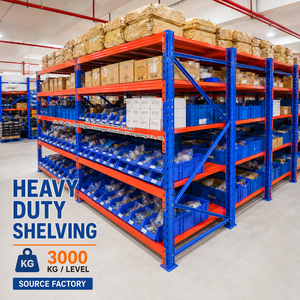

3000KG Custom Steel Deck Storage Rack For Plastic Bins And Small Parts Warehouse Shelves Racking System
Heavy structural load capacity designed with custom steel decks, perfect for organizing plastic tote bins, hardware, and small components in automated fulfillment hubs.
Get Catalog

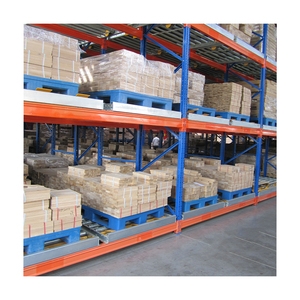

Steel Pallet Rack System Heavy Shelving Storage Shelf Selective Heavy Duty Rack Steel Shelving Warehouse Racking For Wholesale
Universal 100% selective pallet racking featuring fully adjustable beams, certified structural integrity, and multi-tier expansion capabilities for wholesale buyers.
Get Catalog
Factory Heavy Duty Bamboo Racking Textile 2000KG 3000KG Pounds Tons Racking Galvanized Pallet
Corrosion-resistant hot-dip galvanized racking solution optimized for high-humidity environments, textile roll handling, and heavy industrial raw materials.
Get Catalog
200-4000KG Selective Pallet Racking Heavy Duty Warehouse Rack Custom Size OEM Manufacturer
Fully customized OEM pallet racking system manufactured according to your warehouse height, floor load limit, forklift turning radius, and load parameters.
Get Catalog

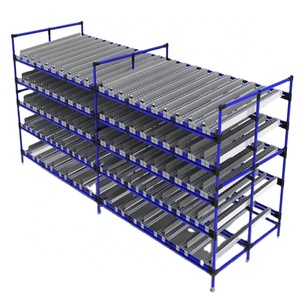

High Storage Capacity Gravity Carton Flow Racking From Best Storage System
Ergonomic gravity roller track system ideal for fast piece-picking, line-side manufacturing assembly, and high-frequency order fulfillment setups.
Get Catalog
Commercial Grade Warehouse Rack Multi Level Pallet Racking System For Large Scale Logistics And Distribution Center
Multi-tier heavy racking engineered to maximize vertical air space, integrating catwalk floors, staircases, and conveyor drop zones for 3PL facilities.
Get Catalog
Shuttle Rack Selective Automatic Warehouse Storage Pallet Racks Radio Shuttle Rack System for High Density
Semi-automated radio pallet shuttle system providing extreme high-density deep lane storage, reduced forklift travel distance, and seamless WMS connectivity.
Get Catalog20,000+ m²
Production Base
30,000+ Tons
Annual Capacity
6,000+
Global Projects
ISO & CE
Certified Quality
Gravity Flow Pallet Racking Engineering & Structural Mechanics
Gravity Flow Pallet Racking—also recognized across international supply chain operations as Pallet Flow Racking or Dynamic Live Roller Racking—is a high-density, First-In, First-Out (FIFO) dynamic storage technology. Designed with inclined roller tracks engineered at a precision slope (typically between 3.5% to 4.0%), this system harnesses natural gravitational force to automatically move pallets from the loading aisle to the retrieval picking face.
As a leading China Wholesale Gravity Flow Pallet Racking Factory & Supplier, ApexDrive Industrial Racking Co., Ltd. custom engineers each roller lane based on strict physics calculations involving dynamic friction coefficients, pallet structural footprint, standard load weight variations, and ambient operating temperatures (ranging from ambient dry warehouses to -30°C cold storage facilities).
Technical Core Feature: Every gravity lane manufactured by ApexDrive incorporates dynamic speed controller brake rollers placed at calculated pitch intervals, combined with automatic pallet separators at the picking face to prevent line pressure and eliminate forklift damage during unloading.
| System Component | Material & Spec Standards | Operational Function & Engineering Value |
|---|---|---|
| Structural Frames & Uprights | Q235B / Q355B Cold-Rolled Steel Coils | 12m single-piece roll-formed uprights; cumulative pitch error within ±2mm. Designed for seismic safety factors. |
| Gravity Track Rollers | High-Grade Galvanized Steel / Precision Bearings | Heavy-duty dual-bearing rollers with load rating up to 1,500kg per pallet position; anti-shock housing. |
| Speed Controller Brakes | Magnetic / Friction Internal Brake Assemblies | Maintains terminal pallet speed under 0.3 m/s across deep lanes (up to 20 pallets deep) to prevent collisions. |
| Pallet Separator Mechanism | Mechanical Foot Release / Safety Latch | Isolates the frontmost pallet from trailing line pressure, enabling safe, easy lift-off by forklift tines. |
Future Procurement & Industry Development Trends
As global supply chains shift toward rapid order fulfillment, omnichannel distribution, and reduced building footprints, the procurement landscape for heavy-duty warehouse racking is undergoing transformational changes. Procurement directors, 3PL logistics managers, and warehouse operators must adapt to several emerging macro trends:
- Surge in FIFO Cold-Chain Logistics: With global perishable food and pharmaceutical distribution expanding, gravity flow pallet racking is rapidly replacing static drive-in systems. Gravity flow provides true FIFO rotation, ensuring zero stock expiration while operating maintenance-free without electricity inside freezing environments (-25°C to -30°C).
- Synergy with Automated Warehouse Systems (AS/RS & AGVs): Modern gravity racking lanes are increasingly designed to interface with Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs). Factory-preset alignment tolerances and automated safety stops ensure robotic forks pick pallets without human intervention.
- Demands for Certified Steel & ESG Compliance: Overseas buyers from Western Europe, North America, and Australia now mandate mill test certificates (Q235B/Q355B structural grades), eco-friendly lead-free electrostatic powder coating finishes, and ISO 9001:2015 traceability across all structural steel members.
- Total Cost of Ownership (TCO) vs. Initial CapEx: While gravity flow racking has a higher initial investment compared to standard selective pallet rack due to dynamic rollers and brakes, it delivers up to a 60% reduction in forklift fuel/battery costs and a 70% decrease in loading travel times, delivering complete ROI within 18 to 24 months.
Comparative Selection Matrix: Matching Racking to Storage Intent
Selecting the optimal racking system requires balancing storage density against pallet selectivity and handling equipment budget. Review our side-by-side engineering evaluation below:
| Racking Type | Storage Density | Access Logic | Selectivity | Forklift Operating Travel | Primary Industrial Use Case |
|---|---|---|---|---|---|
| Gravity Flow Pallet Rack | Very High (80%+) | FIFO (First-In, First-Out) | Per Lane SKU | Minimal (Loading / Unloading Aisles Only) | Perishable Goods, FMCG, Cold Storage, High Turnover |
| Selective Pallet Rack | Standard (35-40%) | FIFO / LIFO | 100% Direct | High (Enters every access aisle) | High SKU Variety, Low Density General Logistics |
| Radio Shuttle Rack | Ultra High (85%+) | FIFO or LIFO | Per Deep Lane | Zero Inside Lanes (Radio Shuttle Car Handles) | Massive Volume per SKU, Deep Lane Distribution |
| Drive-In Racking | High (65-75%) | LIFO (Last-In, First-Out) | Low Selectivity | High Danger (Forklift drives inside steel rack structure) | Seasonal Storage, Uniform Bulk Cargo, Few SKUs |
Why Partner with ApexDrive Industrial Racking Co., Ltd.
Founded in September 2006 in Nanjing, China, ApexDrive Industrial Racking Co., Ltd. operates a state-of-the-art 20,000 square meter manufacturing base equipped with over 150 sets of heavy-duty production machinery. With an annual production output exceeding 30,000 tons of structural steel racking, we serve international importers, warehouse contractors, and industrial end-users across 60+ countries.
1. Raw Material Integrity
We source high-tensile Q235B and Q355B structural steel coils exclusively from premier state steel enterprises including Baosteel, Masteel, and Wuhan Iron and Steel. Mill certificates and chemical component tracking reports are supplied with every export shipment.
2. Precision Manufacturing
Our production complex houses 12 automatic continuous cold-roll forming lines, Swiss Gema electrostatic powder coating equipment operating on a 220-meter automated line, and robotic welding manipulators ensuring flawless seam welds and tight tolerance controls.
3. International Quality Assurance
Certified under ISO 9001:2015 Quality Management Systems and CE European Safety Compliance standards. Every order undergoes factory trial assembly and structural beam deflection testing (L/300 standard) prior to export container loading.
Frequently Asked Questions (FAQ) for Overseas Wholesale Buyers
Q1: What exact technical data is required to request a free CAD layout and price quote?
To prepare an accurate engineering drawing and structural calculation, please send us: (1) Architectural warehouse CAD drawing or clear measurements showing building clear height, column grids, door locations, and obstruction points; (2) Pallet specifications including overall length, width, height, and maximum gross weight per pallet load; (3) Required total pallet position capacity; (4) Existing forklift specs (reach height, mast collapsed height, minimum aisle turning radius); and (5) Ambient warehouse operating temperature.
Q2: How do you determine the correct slope angle and brake roller quantity for gravity pallet flow lanes?
Our engineering team calculates lane pitch based on pallet bottom quality (wooden plastic deck, skid configuration), load weight variability, and total lane depth. Typically, a slope angle of 3.5% to 4% is utilized. Speed controller brake rollers are strategically installed at intervals equal to one pallet length along the track to regulate speed below 0.3 m/s, preventing kinetic impact when pallets reach the picking interface.
Q3: How are heavy racking components packaged to prevent damage during sea transport?
All structural upright columns and horizontal/diagonal beams are securely bundled using heavy-duty steel strapping and wrapped in protective moisture-barrier film. Small components, connectors, baseplates, bolts, and safety pins are packed in reinforced corrugated cartons placed on ISPM-15 compliant heat-treated plywood pallets to simplify fork unloading and customs inspection.
Q4: What installation support options are available for overseas warehouse projects?
Every completed order ships with comprehensive English installation manuals, step-by-step assembly drawings, and structural component lists. Additionally, our engineering staff provides 24/7 video guidance and remote technical assistance. For major automated storage projects or extensive logistics hub developments, ApexDrive can dispatch certified installation supervisors directly to your project site.
Q5: Can Gravity Flow Racking be installed inside cold storage facilities?
Yes. Gravity Flow Racking is exceptionally popular in cold-chain logistics because it operates mechanically without electronic sensors or battery failure risks. We utilize cold-resistant synthetic lubrication inside heavy-duty steel roller bearings designed to perform reliably at temperatures as low as -30°C.
Ready to Optimize Your Warehouse Capacity & Storage ROI?
Contact our structural racking engineering department today. Receive a zero-cost layout design, structural load analysis, and factory-direct wholesale pricing within 24 hours.
