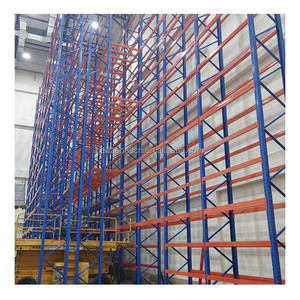

Double Deep Heavy-Duty Industrial Pallet Racking
Send an InquiryEngineering Whitepaper: Structural Architecture of China Wholesale Pallet Racking with Mezzanine Systems
Modern industrial supply chains demand maximum volumetric utility without compromising structural integrity or operational safety. As premier wholesale manufacturers based in China, our engineering methodology for Pallet Racking with Mezzanine Systems relies on precise cold-formed structural steel calculations compliant with international standards including ANSI MH16.1 (RMI), FEM 10.2.02, and EN 15512.
A rack-supported mezzanine converts unused vertical warehouse volume into active operational square footage. By utilizing heavy-duty pallet rack uprights as the primary load-bearing vertical structural columns, these hybrid systems support elevated floor joists, primary cross beams, and specialized decking floors without requiring freestanding structural building columns. This engineering approach delivers up to a 300% increase in usable warehouse surface area at a fraction of traditional building construction costs.
Upright Profile Roll-Forming
Cold-rolled omega profile uprights (80×60, 90×70, 100×70, 120×95mm) manufactured with automated punching equipment ensuring a cumulative hole-pitch tolerance within ±2 mm over a 12-meter single-piece profile.
Dynamic Load Distribution
Engineered to withstand uniform live loads (LL) from 300 kg/m² to over 1,500 kg/m², coupled with dynamic point loads generated by hand pallet jacks, order pickers, and automated conveyor legs.
Seismic Structural Compliance
Finite element analysis (FEA) modeled for seismic zones (resisting M7+ earthquake forces). Upright safety factor calculated at 1.8 min with beam deflection restricted strictly within L/300 under full load capacity.
Industrial Floor Decking Options for Rack-Supported Mezzanines
Selecting the correct mezzanine flooring material directly impacts operational safety, lighting efficiency, fire suppression design, and wheel-load durability. The technical comparison below outlines factory-standard options for wholesale global projects:
| Flooring Deck Type | Material Specification | Load Capacity (kg/m²) | Key Operational Advantages | Recommended Industry Applications |
|---|---|---|---|---|
| Solid Cold-Rolled Steel Plate | 1.5mm - 2.5mm Q235B steel with anti-slip embossed teardrop pattern | 500 - 1,500 kg/m² | Smooth rolling surface for cart trolleys, completely dust-proof between tiers | E-commerce order fulfillment, spare parts warehouses, hardware assembly |
| Heavy-Duty Steel Grating | Welded flat steel bars with twisted square bar cross rods (Galvanized/Powder Coated) | 800 - 2,000 kg/m² | 70%+ open area allows maximum air ventilation, natural light, and sprinkler water penetration | Chemical storage, cold storage logistics, flammable material handling |
| Perforated Steel Decking | Punch-hole cold-formed steel panels with interlocking channel seams | 400 - 1,000 kg/m² | Combines anti-fall safety for small parts while providing 30-50% water/light passage | Apparel warehouses, retail distribution hubs, multi-tier picking aisles |
| Plywood / Steel Composite Deck | 28mm heavy-density structural plywood backed by galvanized steel under-sheets | 300 - 800 kg/m² | Sound absorption, thermal insulation, comfortable walking surface for manual operators | Overhead mezzanine office spaces, administrative walkways, light assembly decks |
Precision Manufacturing: Raw Materials to Export Packing
Our production facilities in Nanjing, Jiangsu Province, operate under strict ISO 9001:2015 quality management systems. We source structural steel coils exclusively from premier domestic state mills such as Baosteel, Masteel, and Wuhan Iron & Steel, ensuring fully traceable mill certificates with guaranteed yield strength (Q235B minimum 235 MPa; Q355B minimum 355 MPa).
Every component undergoes a 10-stage automated surface pretreatment process including chemical degreasing, acid rust removal, and zinc phosphating. Surface finishing is completed on a continuous 220-meter automated electrostatic powder coating line using Swiss Gema spraying equipment. Powder coatings are thermoset-cured at 180°C to deliver superior impact resistance, salt-spray corrosion protection (500+ hours ISO 9227 tested), and long-term durability.
German-Engineered Roll-Forming Lines
Over 150 dedicated production equipment sets producing single-piece upright columns up to 12 meters in length without mid-welds.
Robotic Manipulator Welding
Automated robotic arm welding guarantees full continuous seam penetration on beam connectors, eliminating human weld porosity risks.
Export Container Flat-Packing
Steel-strapped bundle packaging on plywood pallets optimized to maximize 40ft HQ container cubic utilization and avoid transit damage.
Trial Assembly Pre-Shipment QC
Full system test fitting and structural connection trial assembly conducted in-factory prior to export packing and dispatch.
Future Global Procurement Trends in Pallet Racking & Mezzanine Integration (2025-2030)
The global warehousing and logistics ecosystem is transitioning rapidly toward automated, flexible, and eco-efficient storage platforms. B2B procurement buyers, logistics engineers, and warehouse managers must account for several technical evolutionary trends when selecting a manufacturer in China:
1. Autonomous Mobile Robot (AMR) & Mezzanine Convergence
Future multi-tier mezzanine layouts are increasingly designed with dynamic wheel-load reinforcement to accommodate sorting AMRs operating directly on elevated steel plate decks.
2. Hybrid Storage Racking Architectures
Integration of ground-level radio shuttle deep-lane channels topped by multi-tier manual picking racking floors, maximizing both bulk pallet retention and piece-picking speed.
3. Smart IoT Load & Structural Stress Monitoring
Embedding strain gauge sensors into critical upright columns and primary mezzanine support beams to provide real-time structural safety and overload telemetry via WMS interfaces.
Proven Overseas Engineering Deployment: Global Case Studies
Our OEM/ODM wholesale manufacturing services have successfully supplied logistics projects across North America, South America, Europe, the Middle East, and Southeast Asia. From heavy-duty automotive component storage in Germany to multi-tier apparel picking mezzanine floors in Fortaleza, Brazil, our racking systems deliver uncompromised structural performance under diverse climate and load conditions.
Every international project is accompanied by detailed CAD layout approval drawings, 3D structural rendering models, step-by-step English installation manuals, structural calculation dossiers, and live remote video guidance from our lead structural engineers.
Frequently Asked Technical & Sourcing Questions (FAQ)
Clear, expert responses to essential engineering, compliance, and procurement queries when sourcing pallet racking with mezzanine systems from China.
What engineering parameters are required to calculate a mezzanine rack layout design?
To generate an accurate free CAD layout drawing and load capacity calculation, our engineering team requires: (1) Warehouse building CAD drawing showing clear height under eaves, column spacing, door positions, and floor concrete thickness/grade; (2) Pallet dimensions (W × D × H), total loaded weight per pallet, and SKU counts; (3) Intended mezzanine floor live load requirements (e.g., 300 kg/m² for manual picking up to 1,500 kg/m² for heavy pallet storage); (4) Material handling equipment specs including forklift mast lift height and turning aisle radius; (5) Local seismic zone classification.
What is the key structural difference between a Rack-Supported Mezzanine and a Structural Steel Platform?
A Rack-Supported Mezzanine utilizes standard heavy-duty pallet racking frames and upright columns as the base structural vertical support, incorporating intermediate shelf levels below the floor decking. This is ideal for warehouses with high SKU picking density. A Structural Steel Platform utilizes heavy H-beam columns and I-beam main girders to create wide open clear spans underneath, perfect for floor-level manufacturing machinery, assembly lines, or open forklift traffic lanes.
Which steel standards and anti-corrosion finishes are applied to exported racking?
All primary structural components are roll-formed from cold-rolled steel grades Q235B and Q355B (equivalent to SS400 / ASTM A36 and S355). Components undergo a 10-stage chemical degreasing and zinc phosphating wash, followed by electrostatic epoxy-polyester powder coating cured at 180°C. For humid, chemical, or cold-storage environments (-30°C), hot-dip galvanizing per ISO 1461 is available to prevent oxidation and steel embrittlement.
How are fire protection sprinklers and lighting systems integrated into multi-tier mezzanines?
Our structural engineers design mezzanine beam grid spacing to accommodate ESFR (Early Suppression, Fast Response) fire sprinkler pipe routing below intermediate floor decks. When using solid steel floor plates, secondary in-rack sprinkler pipe penetrations are engineered into the upright frame profiles. Alternatively, choosing open steel grating floors (70%+ open area) allows existing ceiling-mounted fire sprinklers and lighting fixtures to penetrate effectively to lower storage tiers.
What installation assistance and documentation do you provide for overseas wholesale projects?
Each container shipment includes color-coded structural component labeling matching the master architectural erection drawing, an English installation safety manual, and component torque specification sheets. We provide 24/7 remote video support with our senior erection engineers. For turnkey commercial projects, our factory can dispatch a certified English-speaking installation supervision engineer to lead your local assembly crew on-site.
How do you optimize export packaging to prevent transit damage and reduce ocean freight costs?
Uprights and beams are bundled with plastic film interleaving, protective corner guards, and multi-tier high-tensile steel strapping. Small components, bolts, baseplates, and safety pins are organized in reinforced corrugated cartons on export plywood pallets. Structural beam nesting and flat-pack layout algorithms are calculated prior to loading to ensure maximum volumetric density inside 40ft High Cube containers.
Request a Free Engineering Consultation & Warehouse Layout Design
Partner directly with China's leading wholesale pallet racking and mezzanine manufacturer. Our certified structural engineers will deliver a complete 2D CAD design, 3D render, and structural load analysis within 24 hours.
