Featured Industrial Racking & Shuttle Systems
Explore our top-tier wholesale pallet racking, heavy-duty cantilever systems, custom mezzanine platforms, and semi-automated radio shuttle solutions engineered for maximum density.

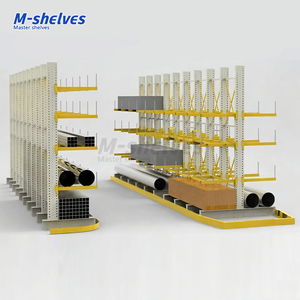

Heavy Duty Side Loading Steel Cantilever Racking System
Engineered for long-stock inventory including steel pipes, timber, and profiles with durable anti-rust electrostatic powder finish.

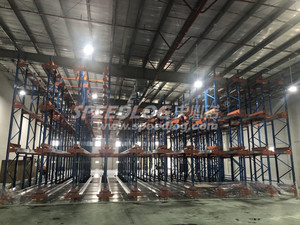

High Density Steel Blue Semi Auto Pallet Shuttle Rack Solution
Deep-lane radio shuttle system equipped with precision guide rails, fast load positioning, and remote radio control connectivity.

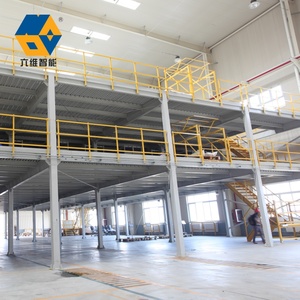

Customized Industrial Mezzanine Heavy Duty Steel Storage Platform
Multi-tier structural steel platform multiplying vertical floor space for e-commerce picking, spare parts, and office spaces.

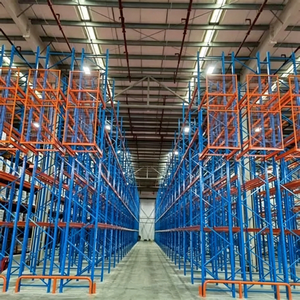

All Bolt Assembly Structure Easy Disassembly Double Deep Pallet Racking
High-strength bolted connection design for rapid relocation, modular flexibility, and deep storage configuration.
Wholesale Blue Steel Cold Storage Pallet Racking Freezer Racks
Specialized cold-resistant structural steel solution designed for low-temperature food cold chain logistics down to -25°C.

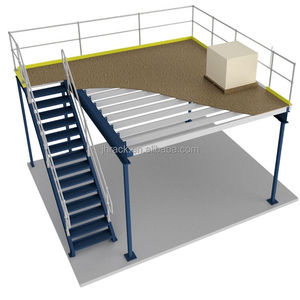

Mezzanine Design Platform Steel Structures Warehouse Storage Racking
Integrated racking-supported mezzanine system combining floor decking, staircase modules, and heavy-duty rack frames.
OEM Factory Wholesale Heavy Duty Steel Selective Pallet Racking
Universal 100% selective pallet storage system roll-formed from Q235B/Q355B structural steel from top Chinese mills.

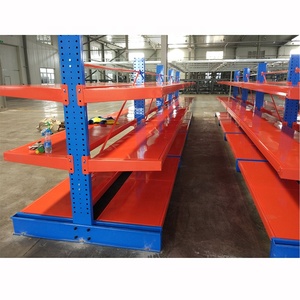

Cantilever Rack Industrial Custom Warehouse Racking for Steel Stock
Unobstructed arm access designed for heavy bar stock, tubing, sheet metal, and oversized industrial materials handling.
20,000+
m² Production Base
30,000+
Tonnes Annual Steel Capacity
150+
Advanced Manufacturing Units
6,000+
Global Projects Completed
Engineering Whitepaper
Architectural Mechanics & Technical Superiority of Two-Way Shuttle Systems
In modern intralogistics and high-density storage facility design, the China Wholesale Two Way Shuttle Racking System stands out as a high-efficiency semi-automated storage breakthrough. By replacing conventional forklift access aisles with precision cold-formed steel guide rails and autonomous battery-powered shuttles, warehouse operators can increase floor space utilization up to 80-85%. Manufactured in accordance with rigorous FEM 10.2.02 and RMI standards, two-way pallet shuttles travel independently within deep racking tunnels to retrieve and deposit heavy unit loads under central radio or WMS instruction.
Kinematic Precision & Safety Sensors
Equipped with laser positioning sensors, mechanical anti-collision bumpers, and photo-electric detection, our two-way shuttles achieve placement tolerances within ±2mm along extended racking lanes up to 100 meters in depth.
High-Energy LiFePO4 Power Systems
Powered by fast-charging Lithium Iron Phosphate (LiFePO4) battery packs, the shuttle car delivers over 8 to 10 hours of continuous heavy-duty operation. Automatic low-battery warning returns the shuttle to the home lane position safely.
Dual Operating Mechanics (FIFO / LIFO)
Easily configure stock rotation rules depending on supply chain demands. Support First-In, Last-Out (FILO/LIFO) for batch raw materials or First-In, First-Out (FIFO) for perishable food, pharmaceuticals, and cold-storage operations.
Information Gain Analysis
System Comparison: Shuttle Racking vs Traditional Racking Systems
When evaluating capital expenditure (CAPEX) versus long-term operational expenditure (OPEX), selecting the optimal high-density storage configuration is paramount for enterprise profitability. The comparative data matrix below illustrates why global logistics directors are replacing drive-in racking with two-way shuttle systems.
| Storage System Type | Volumetric Footprint Efficiency | Pallet Handling Speed | Forklift Damage Risk | Operating Flow | Cold Chain Compatibility |
|---|---|---|---|---|---|
| Two Way Radio Shuttle System | Maximum (Up to 85%) | Fast (1.0 - 1.2 m/s shuttle travel) | Extremely Low (Forklifts stay outside rack) | FIFO or LIFO Flex | Excellent (-25°C to +45°C) |
| Selective Pallet Racking | Moderate (35% - 40%) | High (Direct Access) | Moderate | 100% Selective FIFO | Standard |
| Traditional Drive-In Racking | High (60% - 65%) | Slow (Forklifts enter tunnels) | High (Frequent upright impact) | Strict LIFO Only | Poor Efficiency |
| Very Narrow Aisle (VNA) Racking | High (55% - 65%) | Moderate (Specialized trucks) | Low-Moderate | FIFO | Standard |
| Automated 4-Way Shuttle AS/RS | Ultra-High (85% - 90%) | Fully Automated (WCS Integrated) | Zero (Full Automation) | Dynamic FIFO | Superior Automation |
Industry Insights
Future Procurement & Technological Trends in Pallet Shuttle Racking
1. Convergence of IoT & WMS Interoperability
Future procurement specifications increasingly demand open API protocols for seamless integration between radio shuttle vehicles and enterprise Warehouse Management Systems (WMS). Real-time telemetry monitoring battery health, cycle counts, motor temperature, and load position allows predictive maintenance and zero-downtime operations.
2. Hybrid Evolution: 2-Way to 4-Way Scalability
Logistics planners are choosing modular racking infrastructure that permits a seamless upgrade from 2-way radio shuttle configurations to full 4-way autonomous multi-shuttle AS/RS systems. This phased CAPEX model reduces initial investment while preserving future automation capabilities.
3. Green Logistics & Carbon Neutrality
Energy-efficient brushless DC motors combined with ultra-lightweight structural alloys allow modern shuttles to consume up to 30% less power per pallet cycle. Furthermore, manufacturing utilizing certified recycled low-carbon steel aligns with global ESG procurement mandates.
4. Deep Cold-Chain Specialization
With global fresh food and biopharmaceutical demand surging, cold-storage-ready shuttle components—utilizing low-temperature lubricants, sealed heating elements, and anti-condensation electronics—have become standard requirements for global wholesale contracts.
Manufacturing Authority
Why Source From Our Nanjing Manufacturing Base?
Combining premium structural raw steel, state-of-the-art robotic production lines, and ISO 9001 certified quality control systems to deliver export-grade warehouse storage solutions worldwide.
Certified Mill Steel (Q235B / Q355B)
We exclusively procure certified structural steel coils from China’s leading steel mills including Baosteel, Masteel, and Wuhan Iron and Steel. Mill test certificates are supplied with every order, guaranteeing load-bearing integrity and uniform tensile strength.
Robotic Welding & Precision Roll-Forming
Using specialized continuous roll-forming machinery, upright pitch error is controlled within ±2mm across a single 12-meter profile. Automatic robotic manipulators execute 100% full-seam welds on beam connectors to prevent joint fatigue.
220-Meter Automated Coating Line
Components pass through a 10-stage degreasing and rust-removal pre-treatment before receiving Swiss Gema electrostatic powder spray coating. Polymerization at 180°C guarantees superior impact resistance, anti-scratch coating, and long life.
Procurement Guidance
Frequently Asked Questions (FAQ) for Overseas Buyers
Answers to common structural engineering, custom OEM design, shipping, and installation queries.
What essential data is required to request a custom shuttle layout design?
To provide an accurate CAD layout and load calculation report, our engineering team requires: (1) Warehouse architectural drawings specifying clear height, column grid, door locations, and floor levelling tolerances; (2) Pallet dimensions (W x D x H) including goods overhang and gross weight per unit load; (3) Desired total pallet capacity and SKU turnover rate (FIFO or LIFO); (4) Operating environmental temperature range.
How does a two-way radio shuttle system perform in freezer warehouses?
Our cold-chain shuttle units are custom-engineered for sub-zero environments down to -25°C. They incorporate internal heating circuits to prevent moisture condensation on circuit boards, low-viscosity synthetic lubricants, cold-resistant polyurethane drive wheels, and specialized low-temperature LiFePO4 batteries designed to maintain high capacity discharge rates.
What structural safety factors are designed into the racking frame?
All racking frames and beams are engineered in accordance with FEM 10.2.02 and RMI standards. Upright structural design incorporates a minimum safety factor of 1.8 against yield stress, while maximum beam deflection under nominal load is strictly limited to L/300. Additionally, seismic stability calculations (resisting M7 earthquakes) are performed for project locations in active seismic zones.
How are racking components packed and protected for sea freight export?
Uprights and beams are bundled using heavy-duty multi-tier steel strapping with protective corner guards to prevent coating abrasion during transit. Small components, safety pins, row spacers, base plates, and hardware are packed in reinforced corrugated cartons secured to fumigated plywood pallets. Container loading plans are pre-calculated using 3D simulation to maximize container volume utilization.
Do you offer overseas installation support and technical supervision?
Yes. Every project includes comprehensive English installation manuals, step-by-step assembly drawings, and video tutorials. For large-scale projects or automated shuttle installations, our certified structural engineers can be dispatched to your site for complete installation supervision, shuttle commissioning, and local operator training.
What is the expected lead time from contract signing to factory shipment?
Standard OEM production lead time is typically 20 to 30 business days following CAD drawing approval and deposit receipt. Our 20,000 m² manufacturing plant and 30,000-tonne annual capacity ensure reliable scheduling even during high-volume wholesale order periods.
Ready to Optimize Your Warehouse Capacity by 85%?
Contact our senior storage design engineers today for a free warehouse CAD layout, structural load analysis, and factory-direct wholesale quotation.
