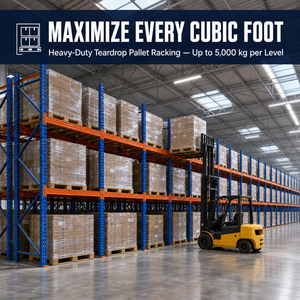

Large Scale E-Commerce Logistics Warehouse Pallet Racking System Customized High Load Industrial Conventional Heavy Duty Rack
High Capacity Durable Steel Pallet Racks Medium Shelf New EU Standard Warehouse Rack System for Order Fulfillment
Versatile Storage System Heavy Duty Warehouse Racks Storage Pallet Racking Steel Rack Heavy Duty Pallet Racking By Custom
Peterack CE Certified Warehouse Storage Steel Heavy Duty Stacking Racks Shelves Selective Pallet Racking System
All Bolt Assembly Structure Easy Disassembly and Relocation High Density Double Deep Rack Double Deep Pallet Racking
Stable Industrial Long Item Storing Solution Cantilever Racking System
Heavy Duty Warehouse Pallet Racking Steel Industrial Pallet Storage Rack for Bulk Cargo Logistics Warehouse

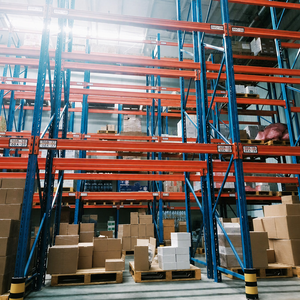

Steel Pallet Logistics Warehouse Storage Rack Heavy Duty Adjustable Selective Pallet Racking for Cold Chain
20,000 m²
Modern Manufacturing Facility
30,000 Tons
Annual Steel Racking Output
6,000+
Global Projects Installed
ISO / CE
Certified Structural Standards
Custom OEM Pallet Racking with Steel Decking Engineering White Paper
Comprehensive technical breakdown of structural load limits, material metallurgy, and fire safety compliance in heavy-duty logistics architecture.
In modern industrial logistics, fulfillment hubs, and cold-storage distribution networks, Custom OEM Pallet Racking with Steel Decking Systems constitute the structural foundation of supply chain throughput. Choosing the proper beam profiles, cold-rolled structural steel grades (Q235B vs. Q355B), and load-rated steel decking panels is vital to structural safety, space optimization, and long-term operating efficiency.
As a specialized global manufacturer and direct exporter, ApexDrive Industrial Racking Co., Ltd. builds structural pallet racking systems engineered to meet rigor standards including ANSI MH16.1 (RMI), FEM 10.2.02, and EN 15512. Integrating solid, perforated, or flanged steel decking panels directly into step beams or box beams creates a stable surface capable of handling point loads, non-standard pallets, heavy drop-loads, and broken-case manual picking operations.
"The integration of custom-engineered steel decking over traditional wire mesh or wooden decking elevates beam system capacity by up to 35%, ensuring zero deflection under sustained point loads while satisfying stringent local FM Global and NFPA fire safety sprinkler requirements."
Technical Specifications & Material Matrix
Our OEM manufacturing lines utilize prime structural steel coils sourced directly from top-tier Chinese mills including Baosteel, Masteel, and Wuhan Iron and Steel. Every beam and upright section undergoes automated precision roll-forming with continuous hole-pitch tolerances held strictly within ±2 mm across a 12-meter single-piece profile.
| System Attribute | Standard Specification | Heavy-Duty OEM Option | Engineering Standard / Compliance |
|---|---|---|---|
| Steel Grade Selection | Q235B Cold-Rolled Carbon Steel | Q355B High-Yield Alloy Steel | GB/T 700-2006 / ASTM A1011 |
| Upright Profile Width | 80mm, 90mm, 100mm, 120mm | 140mm Custom Heavy Upright | RMI / FEM 10.2.02 Certified |
| Steel Decking Panel Types | Flush Fit / Inlaid Solid Steel Deck | Ribbed Flanged / Perforated Steel Deck | UDL (Uniformly Distributed Load) Rated |
| Decking Steel Thickness | 0.7mm – 1.2mm Roll-Formed | 1.5mm – 2.5mm Heavy Gauge Structural | EN 10149-2 Standards |
| Surface Protection Finish | Electrostatic Powder Coating (60-80μm) | Hot-Dip Galvanized (HDG) (>65μm) | ISO 1461 Anti-Corrosion (Cold Chain) |
| Max Load Capacity (Per Level) | 1,000 kg – 3,000 kg UDL | Up to 5,000 kg Custom Engineering | Safety Factor 1.8 to 2.0 Applied |
ApexDrive OEM Manufacturing Advantages
Why Tier-1 logistics providers and overseas distributors partner directly with our factory for custom pallet rack fabrication.
Custom Mechanical Design & CAD Service
We provide full structural static and seismic calculations, CAD floor layouts, and 3D simulation models free of charge prior to order sign-off, ensuring perfect compatibility with your forklift aisle dimensions and building column grid.
220m Swiss Gema Coating Line
Components pass through a 10-stage automatic degreasing and phosphating wash before receiving Swiss Gema electrostatic powder spraying. Cured at 180°C, the finish yields exceptional abrasion resistance and high humidity tolerance.
Strict Export Packaging & Trial Assembly
All rack upright frames and box beams are trial-assembled in-factory to ensure zero pinhole mismatch. Shipments are bundled with multi-tier steel strapping and corner protectors on sea-worthy plywood skids for safe container transport.
Strategic Procurement Recommendations for B2B Importers & Integrators
When procuring Custom OEM Pallet Racking with Steel Decking directly from Chinese manufacturers, enterprise buyers must balance structural safety factors, spatial footprint utilization, and total cost of ownership (TCO). Below is an actionable engineering evaluation framework:
1. Evaluating Steel Decking Structural Configurations
Steel decking is not a one-size-fits-all product. Depending on the nature of your cargo—whether palletized, cartoned, or stored as un-packaged industrial parts—the decking profile must be tailored:
- Step-Beam Inlaid Steel Decking: Sits flush with the top lip of step beams. Ideal for manual order picking, split-case handling, and preventing dust accumulation around pallet bases.
- Flanged / Waterfall Steel Decking: Extends over the outer edge of structural box beams. Provides wrap-around safety anchors that keep the deck panels locked in position during aggressive forklift unloading.
- Perforated Steel Decking: Features precision-punched drainage holes (typically 50% open surface area). Designed specifically to comply with international fire codes by allowing overhead fire sprinkler water to penetrate down through multi-tier rack levels.
2. Seismic Resistance & Deflection Limits (L/300 Rule)
For high-bay installations exceeding 8 meters, rack design must incorporate dynamic load factors. ApexDrive engineers calculate beam structural displacement under maximum load based on the L/300 deflection limit (where deflection cannot exceed the total beam span divided by 300). In earthquake-prone zones, baseplates are upgraded to heavy-gauge anchored footings reinforced with chemical wedge anchors.
3. Quality Assurance: Raw Material Mill Certification
Always demand verified Material Test Certificates (MTC) matching ISO 10204 3.1 standards. Substandard structural steel prone to brittle failure under low-temperature cold storage conditions (-25°C) poses a major operational hazard. ApexDrive utilizes Q355B low-alloy steel with tested impact toughness for cold-chain facilities worldwide.
Require Custom Load Calculations or Layout Drawings?
Our engineering team delivers full CAD layout designs, structural seismic calculations, and direct factory pricing within 24 hours.
Inquire NowFuture Development Trends in Industrial Pallet Racking & Decking
The global warehousing equipment market is undergoing a rapid transition toward automation, sustainability, and ultra-high-density storage. Importers and plant managers should consider these trends when specifying racking systems:
A. Integration with Autonomous Mobile Robots (AMR) & AGVs
Conventional pallet racks are increasingly upgraded to hybrid systems compatible with floor-roaming Autonomous Mobile Robots (AMRs) and automated guided forklifts. Steel decking panels must deliver tighter surface flatness tolerances to allow robotic lifting mechanisms to index pallets accurately without micro-jamming.
B. Advanced Hot-Dip Galvanizing for Cleanroom & Food Logistics
While electrostatic powder coating remains the dominant choice for indoor ambient warehouses, hot-dip galvanizing (HDG) is rapidly gaining market share in seafood processing, pharmaceutical cleanrooms, and chemical storage. HDG coatings self-heal minor surface scratches through sacrificial zinc oxidation, eliminating structural rust in high-moisture environments.
C. Modular Bolt-Together Upright Frames
Global ocean freight rate fluctuations have accelerated the move away from fully welded upright frames toward 100% bolted structural frame assemblies. Bolted frames pack tightly into standard 40ft High Cube containers, cutting shipping volume by up to 45% while enabling easy on-site replacement of damaged structural columns.
Frequently Asked Questions (FAQ)
Clear answers from our chief racking engineers regarding design, ordering, shipping, and installation.
What parameters do you need to design a custom racking layout and quote?
To provide an accurate engineering drawing and quotation, we require:
(1) Building CAD drawing or interior dimensions showing clear ceiling height, column spacing, and door positions;
(2) Pallet dimensions (W x D x H) including overall cargo height;
(3) Maximum load weight per pallet position;
(4) Forklift model, maximum lift height, and minimum aisle turning radius;
(5) Operating environment temperature range (ambient, cold storage, or outdoor).
Why choose custom steel decking over traditional wire mesh decking or wood panels?
Custom steel decking offers superior structural rigidity, zero sagging under point loads, higher uniform load capacities (up to 3,000 kg/level), and extended operational lifespan. Unlike wood panels, steel decking is 100% non-combustible and complies with FM Global fire regulations. Unlike wire mesh, solid or ribbed steel decking prevents small parts, liquids, or box corners from falling through to lower picking levels.
Which structural steel grades and surface finishes do you supply?
We primarily manufacture using prime Q235B and Q355B structural steel coils. For standard indoor applications, components receive an electrostatic powder coating (60–80 microns) cured at 180°C. For humid, chemical, or sub-zero cold storage environments (-30°C), we supply hot-dip galvanized (HDG) components that satisfy ISO 1461 anti-corrosion standards.
How do you support on-site installation for overseas export projects?
Every export shipment includes comprehensive 3D assembly drawings, step-by-step English installation manuals, and component marking labels. Our engineering team provides real-time video guidance. For large-scale projects or complex automated racking installations (such as AS/RS or Mezzanine systems), we can dispatch certified installation supervisors directly to your project site.
How is the racking protected against transit damage during ocean freight?
Uprights and beams are bundled in high-density steel strapping with heavy-duty protective cardboard corner guards. Small hardware items, safety pins, footplates, and bolts are packed in reinforced wooden boxes or plywood-palletized cartons. This ensures components arrive scratch-free, ready for efficient site sorting and immediate installation.
