Engineered for maximum structural integrity, optimized storage density, and seamless integration with manual, semi-automated, and robotic material handling equipment.

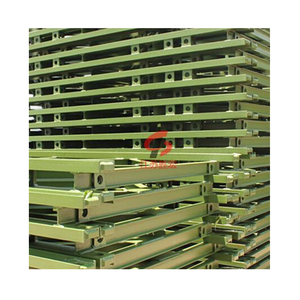

ApexDrive Industrial Racking Co., Ltd. operates a vertically integrated production infrastructure dedicated to precision cold-formed structural steel fabrication for high-bay logistics operations.
Every frame component utilizes high-yield structural steel (Q235B & Q355B) directly procured from tier-1 mills such as Baosteel, Masteel, and Wuhan Iron and Steel. Mill test reports (MTR) are provided for every batch.
Automated multi-station roll-forming lines maintain a cumulative hole-pitch tolerance within ±2 mm over a 12-meter single-piece upright, ensuring uniform stress distribution and rapid job site bolt alignment.
Beam connectors and structural baseplates undergo robotic manipulator MIG/MAG welding. This eliminates manual weld porosity, providing maximum shear resistance and fatigue resistance under high cyclic loading.
Our continuous automated surface line utilizes Swiss Gema electrostatic powder spray technology. Steel undergoes 10-stage degreasing, rust removal, surface conditioning, and 180°C high-temperature curing.
Uprights and box beams are wrapped with protective film, edge protectors, and multi-tier high-tensile steel strapping on non-fumigation plywood skids to prevent ocean freight transit corrosion or mechanical abrasion.
Systems are calculated, tested, and certified according to ISO 9001:2015 quality frameworks and European CE guidelines, adhering strictly to FEM 10.2.02 and ANSI/RMI MH16.1 storage safety design standards.
An authoritative whitepaper breakdown for supply chain engineers, logistics architects, and global procurement directors on structural steel yield stress, deflection limits, and density ratios.
In modern industrial logistics, warehouse floor space represents one of the highest capital expenditures. As industrial real estate costs escalate globally, logistics managers must pivot from vertical growth expansion to internal volume optimization. High-density pallet racking systems—ranging from Double-Deep, Drive-In, and Radio Shuttle Racking to fully integrated Automated Storage and Retrieval Systems (AS/RS)—provide the architectural foundation for achieving maximum unit-load throughput per square meter.
The structural load stability of an industrial racking frame is governed by the cold-formed steel section's yield strength ($f_y$) and ultimate tensile strength ($f_u$). At ApexDrive Industrial Racking, upright profiles are engineered primarily using Q235B structural carbon steel (Yield strength ≥ 235 MPa) and high-strength Q355B structural steel alloy (Yield strength ≥ 355 MPa).
For high-bay installations exceeding 10 meters in clear height, utilizing Q355B steel in lower upright sections allows for reduced wall thickness without sacrificing axial load-bearing capacity. This structural optimization reduces total frame weight, lowers international shipping container weight costs, and increases local earthquake acceleration tolerance (resisting dynamic ground acceleration under M7 seismic ratings).
According to FEM 10.2.02 and EN 15512 specifications, horizontal storage beams under full vertical loading must not exceed a maximum deflection ratio of: $$\text{Deflection Limit} = \frac{L}{200} \quad \text{or} \quad \frac{L}{300}$$ where $L$ represents the clear span of the step beam or box beam. For high-density semi-automated systems such as Radio Shuttle lanes, tighter deflection controls ($\le L/300$) are enforced to guarantee smooth, uninhibited travel of battery-powered pallet runners along the cold-rolled runner channels.
| Racking Architecture | Storage Density Rating | Selectivity (%) | Optimal SKU Density | Handling System Integration | Seismic Resistance |
|---|---|---|---|---|---|

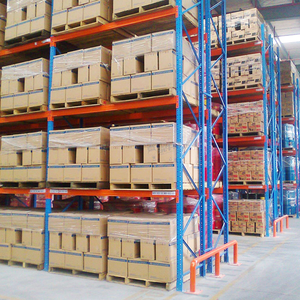

| Selective Pallet Racking | Baseline (1.0x) | 100% Direct Access | High SKU Variety / Low Volume | Standard Counterbalance / Reach Truck | Standard Anchor Plates |
| Double-Deep Pallet Rack | High (1.3x - 1.4x) | 50% Direct Access | Medium SKU Variety / Medium Volume | Deep-Reach Pantograph Forklift | Tie-Beam Connected Rows |
| Drive-In Racking System | Very High (1.6x - 1.8x) | 20-30% (LIFO) | Low SKU Variety / High Volume | Drive-In Counterbalance Truck | Top Bracing & Back Bracing Grid |
| Radio Shuttle Runner System | Maximum (2.0x - 2.5x) | FIFO or LIFO per Lane | Batch Goods / Cold Storage FMCG | Forklift + Semi-Automated Shuttle | Integrated Channel Structural Tie |
| Automated AS/RS High-Bay | Ultra-Maximum (3.0x+) | 100% Automated Access | High Throughput / 24-7 Operation | Automated Stacker Crane / WMS System | Custom Heavy Seismic Footplates |
How global enterprise buyers, 3PL providers, and cold-chain operators are shifting procurement strategies toward modularity, semi-automation, and carbon-neutral OEM supply networks.
Enterprise logistics hubs are migrating from pure manual selective racking toward semi-automated Radio Shuttle Systems. Buyers reduce operator labor reliance while keeping capital expenditure significantly lower than full-scale AS/RS deployments. Expect a 40% growth in shuttle-ready channel racking orders through 2030.
With global cold-storage demand spiking for biopharmaceuticals and frozen foods, procurement teams now mandate low-temperature impact testing (Charpy V-notch toughness down to -30°C). Racking components require high-grade epoxy-polyester coatings or hot-dip galvanizing to prevent embrittlement and surface micro-cracking.
Global buyers are moving away from proprietary, non-standard racking pitch dimensions. OEM orders are standardizing on universal tear-drop or standard 50mm / 75mm pitch profiles. This allows cross-compatibility with existing material handling accessories and facilitates rapid localized warehouse expansions.
The global industrial storage industry is undergoing a structural paradigm shift driven by smart logistics, urban fulfillment centers, and robotics. Future-focused OEM/ODM manufacturing incorporates key innovation pathways:
Direct technical answers from ApexDrive project engineers regarding customization, structural steel specs, international standards, export logistics, and installation support.
Contact our structural engineering team today for a complimentary CAD layout design, static structural calculation report, and factory-direct OEM price quotation.
