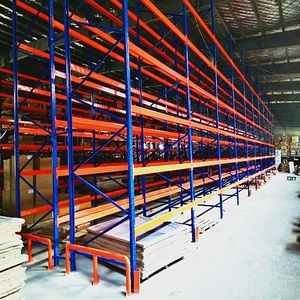

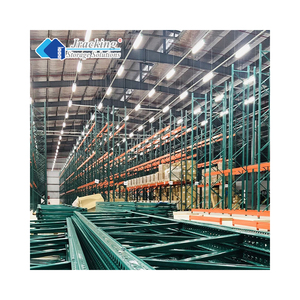

ISO9001 CE Euro Standard Outdoor Pallet Rack Storage Racking System Adjustable
Send an Inquiry

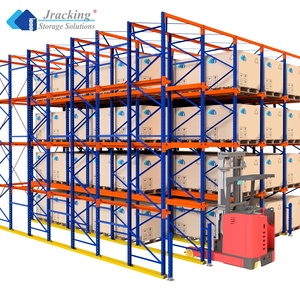

Warehouse Heavy Duty Industrial Shelves Steel EU Blue and Orange Selective Pallet Racking Shelving System CE Certified
Send an Inquiry

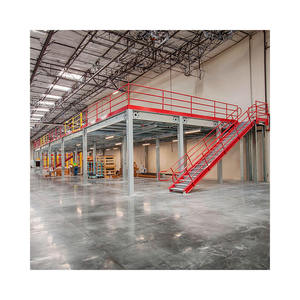

ISO CE Certified Heavy Duty Steel Mezzanine Floor Racking System Multi-level Warehouse Storage Platform Factory Supplier
Send an Inquiry

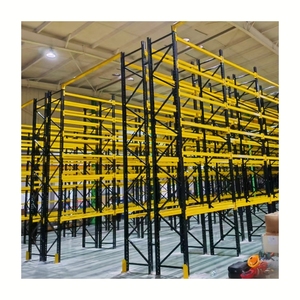

Customized Colors Storage Shelf High Density Pallet Racking Warehouse Racks Steel Heavy Duty Shelving For Warehousing
Send an Inquiry

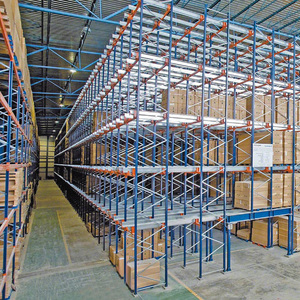

Stable Structure 5 Layer Heavy Duty Shuttle Pallet Racking Custom Intelligent Warehouse Storage System for E-commerce
Send an Inquiry

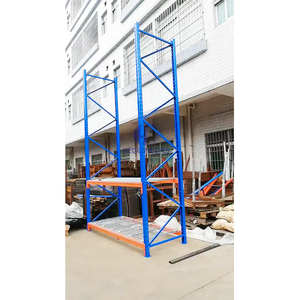

Heavy Duty High-Level Racking Shelving System Pallet Rack for Warehouse Vertical Storage High Bay Storage
Send an InquiryExecutive Summary: OEM/ODM Pallet Conveyor & Storage Architecture
Modern supply chain logistics demand unprecedented operational velocity, structural resilience, and spatial density. As global procurement managers shift toward fully automated or semi-automated material handling environments, the physical integration between static heavy-duty pallet racking and dynamic dynamic pallet conveyor storage systems has become the primary benchmark for warehouse efficiency. ApexDrive Industrial Racking Co., Ltd. serves as a tier-one OEM/ODM manufacturer, specializing in high-load pallet conveyancing platforms, automated storage and retrieval system (AS/RS) structural framing, heavy-duty shuttle racks, and specialized industrial platforms engineered to international standards (EN 15512, FEM 10.2.02, ANSI MH16.1, and RMI compliance).
Technical Insight (Information Gain): Pallet conveyor storage integration requires structural dynamic modeling (SDM) to absorb systemic kinetic vibrations generated by 1,500 kg+ unit loads entering at velocities up to 0.5 m/s. Standard static racking frames lack the torsional rigidity necessary to prevent structural shear along the beam-to-upright connection points during rapid braking cycles of motorized roller and chain conveyors.
Metallurgical Selection and Structural Load Dynamics
Our OEM/ODM manufacturing protocols strictly utilize structural steel cold-formed profiles derived from certified prime steel coils supplied by China’s premier state-owned mills: Baosteel, Masteel, and Wuhan Iron and Steel. Structural components utilize yield-optimized Q235B and Q355B structural steel grades. Q355B (equivalent to European S355JR and ASTM A572 Grade 50) offers a minimum yield strength of 355 MPa, granting high-bay rack columns and dynamic conveyor supporting structures superior load-bearing capacity without excessive deadweight addition.
Roll-forming lines engineered under German structural tolerances achieve cumulative hole-pitch precision within ±2 mm over a continuous 12-meter single-piece upright column. This manufacturing accuracy eliminates cumulative axial misalignment across multi-tier racking bays, guaranteeing seamless interfacing with motorized roller conveyors, chain-driven live roller (CDLR) beds, and automated pallet shuttles.
Engineering Core
Key Conveyance & Racking Subsystem Modules
Hardware components engineered for multi-shift continuous duty in heavy industrial and cold chain environments.
Chain Driven Live Roller (CDLR)
Heavy-duty roller tracks with welded sprocket drives designed for rugged pallet transport, ideal for dirty environments, oily bottom pallets, or dynamic impact loading zones.
Zero Pressure Accumulation (ZPA)
Motorized drive roller (MDR) zones equipped with photoelectric sensors, allowing pallets to accumulate sequentially without touching, eliminating product damage and line pressure.
Radio Shuttle Automated Interface
Deep-lane storage racking featuring high-precision guidance rails for battery-powered shuttles, seamlessly handing off pallets directly to outbound conveyor lines.
System Architecture & Product Selection Matrix
Selecting the optimal pallet conveyor storage system depends heavily on SKU variety, pallet unit weights, environmental temperature, and target throughput (pallets per hour). Below, our engineering team highlights the core technical specs for OEM/ODM integration across primary industrial warehousing categories:
| Storage System Type | Max Load / Pallet | Throughput Capacity | Structural Steel Grade | Ideal Application Sector |
|---|---|---|---|---|
| CDLR Pallet Conveyor Storage | 2,000 kg / pallet | Up to 120 pallets/hr | Q355B Heavy Structural | Automotive, Foundry, Heavy Machinery |
| Radio Shuttle + Conveyor Handshake | 1,500 kg / pallet | 60 - 90 pallets/hr | Q235B / Q355B Cold Formed | Cold Storage (-30°C), Food & Beverage |
| AS/RS High-Bay Rack Systems | 1,500 kg / pallet | 200+ pallets/hr (Multi-crane) | Precision Q355B Steel | Pharmaceuticals, E-Commerce Hubs, 3PL |
| Heavy Selective Racking + Gravity Rollers | 1,000 kg / pallet | 40 - 60 pallets/hr | Q235B Steel Profiles | General Logistics, Finished Goods Buffers |
| Multi-Tier Mezzanine Conveyor Platform | 800 kg / m² deck | Variable / Manual + Lift | Structural Steel + Q235B Deck | Spare Parts Distribution, Apparel Picking |
Automated Integration: WMS/WCS and PLC Architecture
OEM/ODM pallet conveyor storage systems manufactured by ApexDrive are engineered for seamless hardware-software handshakes. The mechanical framing, roller sensors, emergency stop channels, and photo-eye mounting brackets are standardized to accept Siemens S7-1500 series, Allen-Bradley ControlLogix, and Schneider PLC controllers. Fieldbus communication protocols—including PROFINET, EtherNet/IP, and Modbus TCP—are integrated into the wireway channels formed directly into structural racking beams, maintaining clean aesthetics and protecting signal cabling from fork-truck collisions.
Future Global Procurement Trends in Pallet Conveyance (2025–2030)
As logistics real estate costs elevate globally, warehouse operators are moving away from traditional static selective racking toward verticalized dynamic systems. Procurement decision-makers must consider several emerging macro-trends when issuing RFQs for OEM/ODM storage infrastructure:
1. Modular Plug-and-Play Conveyor Subsystems
Custom-welded static conveyor lines are rapidly being replaced by pre-galvanized modular sections. Modular OEM conveyor beds allow procurement teams to reconfigure warehouse layouts within 48 hours without heavy hot-work or structural field cutting.
2. Ultra-Low Temperature (-30°C) Electrification
Cold-chain food logistics requires specialized metallurgy and synthetic lubricants. Future-proof pallet conveyor systems utilize low-temperature synthetic gearing and IP67-rated heating cartridges inside motor drives to prevent internal condensation lockups.
3. Kinetic Energy Recovery Systems (KERS)
High-throughput automated warehouses are integrating regenerative braking modules on heavy pallet decelerators and vertical lifts. Kinetic energy from 1,500 kg descending pallets is converted back into electrical energy, reducing facility power consumption by up to 18%.
4. IoT-Embedded Predictive Maintenance Racking
Smart upright columns embedded with micro-strain gauges monitor real-time beam deflections and impact forces. Predictive algorithms alert warehouse engineers to structural overloads or forklift strikes before catastrophic rack collapses occur.
Manufacturing Authority
Why Global Supply Chains Trust ApexDrive
Excellence in raw material control, robotic fabrication, and surface treatment engineering.
Advantage 01
State-Tied Steel Sourcing
Raw materials sourced exclusively from Baosteel, Masteel, and Wuhan Iron & Steel. Mill Test Certificates (MTC) supplied with every order verifying tensile and yield parameters.
Advantage 02
Robotic Welding Precision
Automatic manipulator welding rigs eliminate missing welds and internal porosity, delivering 100% full-penetration seams at critical beam connector joints.
Advantage 03
220m Powder Coating Line
Utilizing Swiss Gema electrostatic spraying technology across a 10-stage degreasing and rust-removal process, cured at 180°C for exceptional impact and corrosion resistance.
Advantage 04
Seismic Structural Compliance
Racking structural frames designed to withstand Richter magnitude M7 seismic events, maintaining safety factors of 1.8 on upright columns under maximum rated payload.
Advantage 05
Trial Assembly & Quality Audits
Every custom OEM/ODM racking layout undergoes pre-shipment trial assembly inside our 20,000 m² factory to guarantee exact hole-pitch alignment on site.
Advantage 06
Export-Grade Packing Protection
Uprights and beams packaged with multi-tiered heavy steel strapping; small accessories packed in reinforced cartons on sea-worthy plywood pallets.
Technical Insights
Frequently Asked Questions for Procurement Directors
Detailed answers to critical engineering, manufacturing, and international shipment questions.
What design specifications are required to receive a turnkey OEM/ODM layout and quote?
To generate an accurate structural layout and engineering cost report, our technical team requires:
- CAD drawing or dimensioned sketch of the building layout (showing ceiling clear height, column matrix, building expansion joints, door locations, and sprinkler clearance lines).
- Pallet dimensions (Width x Depth x Height, including goods overhanging boundaries) and maximum gross weight per unit load.
- Required storage capacity (total pallet positions) and target hourly throughput rates (FIFO vs LIFO movement).
- Material handling equipment specifications (forklift turn radius, reach height, mast collapsed height, or AGV interface specs).
- Ambient environmental conditions (standard warehouse, food-grade clean room, humid outdoor, or -30°C cold storage).
How does ApexDrive prevent paint peeling and rust formation in high-humidity or cold storage environments?
Corrosion mitigation is handled through a rigorous 10-stage surface pretreatment system on our 220-meter automated line. Steel profiles undergo chemical degreasing, zinc-phosphate conversion coating, and high-pressure rinsing before entering the drying oven. Coating is executed using Swiss Gema electrostatic powder spray equipment, applying thermosetting epoxy-polyester powder at a uniform thickness of 60–90 microns, cured at 180°C. For extreme humidity, coastal applications, or chemical exposure, hot-dip galvanizing (HDG) conforming to ISO 1461 is available, yielding a zinc layer thickness of 65–85 microns.
What structural safety factors are applied to heavy-duty pallet racking and conveyor frames?
All structural calculations follow FEM 10.2.02 (European Federation of Materials Handling) and ANSI MH16.1 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks). Upright columns are designed with a minimum ultimate safety factor of 1.8 relative to nominal yield limits. Beam deflection under full static payload is strictly capped at L/300 (where L is the clear span length of the beam), preventing excessive flexure that could jam automated shuttle wheels or misalign sensor eyes on conveyor beds.
Can ApexDrive dispatch engineering crews for overseas installation support?
Yes. We offer complete global installation assistance. Every order is delivered with comprehensive 3D assembly drawings, step-by-step English instruction manuals, and component numbering tags. For complex automated AS/RS or multi-tier mezzanine platform projects, experienced installation project managers can be dispatched directly to your site overseas to supervise local labor, execute precision leveling, and manage final commissioning.
How are heavy pallet conveyor components packed to prevent shipping damage during ocean transit?
Components are packaged specifically to withstand multi-mode ocean transport and high-humidity container environments. Upright frames and long structural beams are bundled with multi-tier high-tensile steel strapping over plastic film wraps, featuring corner protection blocks to eliminate paint abrasion. Small hardware—such as 8.8-grade structural bolts, beam locking pins, row spacers, baseplates, and optical sensor brackets—is packed in heavy-duty corrugated cartons anchored to ISPM-15 compliant export plywood pallets.
