Featured Industrial Storage & Shuttle Systems
Explore our factory-direct OEM/ODM racking solutions engineered for extreme density, cold-storage adaptability, and high-throughput automated logistics hubs.

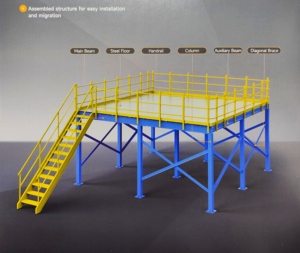

Nova Steel Heavy-Duty Mezzanine Metal Floor Rack System
Intelligent Four-Way Steel Shuttle Rack System CE/ISO
Commercial Grade Warehouse Multi Level Pallet Racking

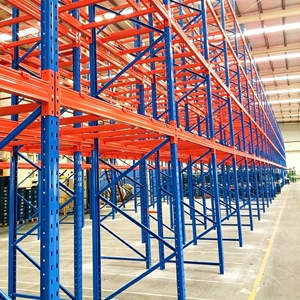

Adjustable Heavy Duty High Bay Selective Pallet Racking

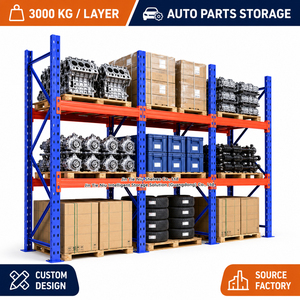

200-4000KG Selective Pallet Racking Heavy Duty Custom

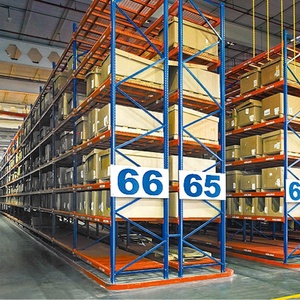

Narrow Aisle VNA Pallet Racking High-Density System

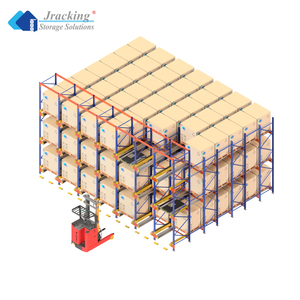

Automated Pallet Runner Four Way Radio Shuttle Rack

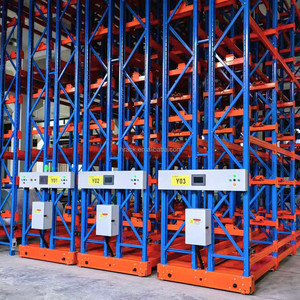

Industrial Electric Mobile Storage Shelf Automatic Racking
20,000 m²
Modern Production Base
30,000 Tons
Annual Steel Capacity
6,000+
Global Completed Projects
ISO / CE
Certified Quality Assurance
Executive Technical Briefing: The Evolution of Radio Shuttle Storage Systems
In modern intralogistics, optimizing floor footprint while maintaining rapid throughput is the ultimate benchmark of operational efficiency. Radio Shuttle Racking Systems represent a paradigm shift in semi-automated and fully automated high-density warehouse storage. Unlike conventional selective pallet racking, which requires dedicated aisles for forklift travel between every single row, radio shuttle systems operate on deep-lane channel structures. Self-powered shuttle cars travel along internal guiding rails beneath pallet positions, retrieving and placing unit loads with surgical precision.
As a premier original equipment manufacturer (OEM) and original design manufacturer (ODM), our facility integrates structural engineering, finite element analysis (FEA), advanced metallurgy (employing Q235B and Q355B structural steel grades), and intelligent shuttle control protocols. Whether configured for First-In, First-Out (FIFO) batch management or Last-In, First-Out (LIFO) deep storage, our shuttle architecture delivers up to 85% volumetric space utilization, drastically cutting operational overhead and power consumption in climate-controlled and cold-chain facilities.
Deep Engineering & Structural Superiority: Raw Steel to Finished Installation
What sets high-performance industrial racking apart from standard market alternatives is structural integrity under dynamic dynamic load profiles. A moving radio shuttle cart exerts repetitive kinetic forces, micro-vibrations, and dynamic braking torques along the rack rails. Our engineering department executes rigorous multi-axis load simulations to guarantee absolute seismic safety and zero frame deflection.
Certified Structural Steel
Sourced exclusively from tier-1 steel mills (Baosteel, Masteel, Wuhan Iron & Steel). We utilize Q235B and high-yield Q355B cold-rolled steel with guaranteed yield strengths up to 355 MPa for supreme rack stiffness.
Robotic Arc Welding
Beam connectors, upright footplates, and shuttle rail brackets feature 100% automated manipulator robotic welds. Eliminates human variance, preventing porosity, cold welds, and stress points.
220m Automated Powder Line
10-stage pre-treatment, chemical degreasing, rust stripping, and electrostatic powder coating powered by Swiss Gema automatic guns, cured at 180°C for exceptional impact and corrosion resistance.
Seismic M7 Resistance
Engineered in full compliance with EN 15512, FEM 10.2.02, and RMI standards. Rated to withstand magnitude-7.0 seismic events while maintaining frame stability and structural alignment.
Cold-Storage Resilience
Specialized low-temperature lithium iron phosphate (LiFePO4) battery packs and thermal electronics allow seamless, continuous shuttle operation down to sub-zero freezer environments (-30°C).
Tailored OEM/ODM Customization
From non-standard pallet dimension channels to customized radio frequencies, integrated barcode sensors, and bespoke steel profile shapes—we build to your exact operational drawing.
Future Strategic Trends: Next-Gen Pallet Shuttle Procurement (2025–2030)
Procurement directors and supply chain engineers must plan systems capable of adapting to next-decade automation trends. The industrial storage landscape is moving rapidly from standalone semi-automated machinery to deeply integrated, software-driven intralogistics ecosystems. When specifying your next warehouse expansion, consider these structural technological shifts:
1. Migration from 2-Way to 4-Way Radio Shuttle Kinematics
While traditional 2-way shuttles move exclusively along a straight longitudinal channel (requiring a forklift to shift the shuttle between lanes), advanced 4-Way Radio Shuttle Systems can traverse both longitudinal storage channels and lateral transfer aisles. This enables full 3D spatial motion inside the rack grid, allowing automatic elevator integration and eliminating forklift entry entirely.
2. WMS/WCS RESTful API & IoT Sensor Integration
Modern shuttles are no longer simple remote-controlled carts. They serve as intelligent IoT endpoints equipped with Wi-Fi/5G industrial communication modules, photoelectric obstruction sensors, weight diagnostics, and laser positioning meters. Through open RESTful APIs, shuttles interface directly with enterprise Warehouse Management Systems (WMS) and Warehouse Control Systems (WCS), performing automated stock auditing, task queue optimization, and predictive maintenance alerts.
3. Hybrid AS/RS & Shuttle Mother-Vehicle Concepts
For ultra-high-throughput fulfillment hubs, combining stacker cranes or vertical lifts with shuttle runners (mother-and-child shuttle systems) provides unmatched picking speeds. The stacker crane acts as the vertical transport trunk, while the shuttle vehicle dispatches into deep channels, achieving infinite scalability in both vertical height and horizontal depth.
Industrial Storage System Engineering Matrix
Selecting the ideal pallet racking geometry requires balancing footprint density, access selectivity, speed, and capital expenditure. The technical comparison matrix below highlights how Radio Shuttle Racking bridges the gap between conventional static racks and full AS/RS automation:
| Racking Type | Storage Density | Pallet Selectivity | Operating Logistics Flow | Forklift Reliance | Relative CapEx Index |
|---|---|---|---|---|---|
| Selective Pallet Racking | Low (40% - 50%) | 100% Direct Access | FIFO / LIFO (Universal) | High (Aisle Access Required) | $ (Baseline) |
| Narrow Aisle (VNA) Racking | Medium-High (60% - 70%) | 100% Direct Access | FIFO / LIFO | High (Requires VNA Turret Truck) | $$ |
| Drive-In Racking | High (70% - 75%) | Low (Lane-by-Lane) | Strict LIFO | High (Forklift Drives Inside Rack) | $$ |
| Radio Shuttle Racking | Ultra-High (80% - 85%) | Medium (Lane-Level FIFO/LIFO) | Flexible FIFO & LIFO | Low (Only at Channel Face) | $$$ (High ROI) |
| Automated AS/RS System | Maximum (85% - 95%) | Automated Direct Access | Fully Software-Controlled | Zero (Stacker Cranes / Conveyors) | $$$$$ |
| Electric Mobile Racking | Ultra-High (80% - 90%) | 100% Selectivity (Movable Aisles) | FIFO / LIFO | Medium (Standard Reach Trucks) | $$$$ |
Need a Customized Warehouse CAD Layout & Static Load Calculation?
Our engineering team provides free consultation, structural drawings, and comprehensive project budgeting within 24 hours.
Get CatalogWhy Partner With Us: Our Manufacturing Superiority
As a leading Chinese racking manufacturer based in Nanjing, our dual manufacturing plants span over 20,000 square meters, equipped with over 150 dedicated sets of roll-forming mills, automated punch presses, laser cutting centers, and robotic welding stations. We service international distributors, system integrators, and direct enterprise buyers across 60+ countries.
Complete Traceability
Every batch of raw steel is shipped with original Mill Test Certificates (MTC). Tensile strength, yield point, and chemical composition are verified prior to roll-forming.
Trial Assembly QC
Before export packing, sample frames and shuttle guide rails undergo full-scale shop-floor test assembly to guarantee strict pitch tolerances (±2mm accuracy across 12-meter uprights).
Worldwide Installation Support
Detailed 3D assembly manuals, structural CAD drawings, video guides, and on-site engineering dispatch support ensure hassle-free overseas setup and commissioning.
Frequently Asked Procurement & Engineering Questions (FAQ)
What technical data is required to design a custom OEM/ODM Radio Shuttle system layout?
To prepare an accurate structural design and commercial proposal, our engineering team requires:
- Building floor plan (CAD or PDF sketch) showing clear height under roof trusses, column locations, doors, and sprinkler clearance lines.
- Exact pallet dimensions including load overhang (Width × Depth × Height in mm).
- Gross weight per pallet (e.g., 500 kg, 1000 kg, 1500 kg).
- Operational inventory flow requirements (First-In, First-Out or Last-In, Last-Out).
- Forklift model specifications, maximum reach height, and aisle clearance capacity.
- Operating environment ambient temperature (e.g., standard +20°C, cold room -25°C).
How does the radio shuttle cart handle battery charging and duty cycles during peak operations?
Our radio shuttles feature high-density Lithium Iron Phosphate (LiFePO4) battery modules with rapid-charge capabilities. A full single charge provides 8 to 10 hours of continuous operational duty cycle. The system includes quick-swap battery trays, allowing operators to change batteries in under 60 seconds for continuous 24/7 multi-shift operations. Automated low-battery warning systems direct the shuttle to return to the front channel face before power depletion.
What safety devices and sensors are built into the automated shuttle vehicles?
Safety is paramount in automated material handling. Each shuttle is equipped with multi-layered safety mechanisms:
- Obstacle Detection Lasers: Anti-collision sensors that automatically decelerate and stop the shuttle if an unexpected object or misaligned pallet is detected.
- Pallet Position Photo-sensors: Ensure unit loads are picked and placed with sub-millimeter precision without edge scraping.
- Mechanical End-Rail Stoppers: Solid steel rail locks fitted at channel entry and exit points to prevent shuttle derailment.
- Emergency Stop Remotes: Dedicated wireless kill switches for immediate manual interruption.
Can your radio shuttle racking withstand harsh cold-storage and freezer environments?
Yes. Cold chain logistics is one of our primary specializations. Racking frames installed in cold rooms receive specialized moisture-proof powder coatings or hot-dip galvanizing to prevent rust caused by condensation. Shuttle vehicles engineered for sub-zero operation feature IP65-rated sealed electronic enclosures, anti-freezing lubricants, and internal heating elements for sensitive circuit boards and optical sensors.
What quality certifications and structural compliance codes do your racking systems meet?
Our manufacturing processes strictly conform to ISO 9001:2015 Quality Management Systems. Structural engineering designs comply fully with European standards (EN 15512 for steel static storage systems, FEM 10.2.02 for racking design), American RMI (Rack Manufacturers Institute) specs, and CE safety compliance for electrical shuttle machinery.
How are racking components packed for long-distance export ocean transport?
Upright frames and horizontal beams are securely bundled with multi-tier heavy-duty steel strapping and wrapped in protective moisture barrier film. Smaller components, hardware, footplates, safety pins, and shuttle accessories are packed in reinforced wooden crates or heavy-duty cardboard boxes secured on export-compliant plywood pallets. Packaging is optimized for standard 40ft High Cube (40HQ) containers to maximize freight volume while preventing transit damage.
Accelerate Your Storage Efficiency Today
Contact our engineering sales directors to request a product catalog, schedule a factory audit, or obtain a competitive factory-direct quote.
