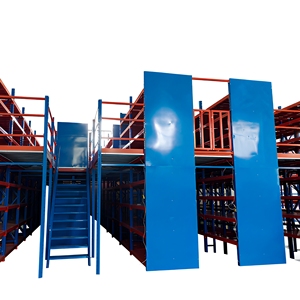

Custom Corrosion Protected Adjustable Pallet Rack Steel Structure Mezzanine Floor Heavy Duty Warehouse Loft Platform Racking

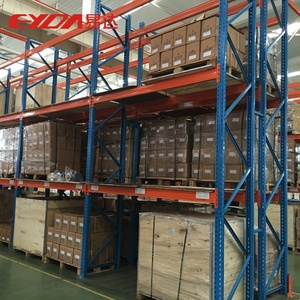

Heavy Duty Warehouse Pallet Racking Steel Industrial Pallet Storage Rack for Bulk Cargo Logistics Warehouse

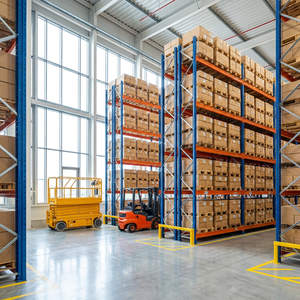

Multi Level Pallet Rack Warehouse Shelving Heavy Duty Shelves Factory Industrial Racking Systems
Blue Orange Customizable Colors Industrial Stacking Racks Heavy Duty Steel Pallet Rack System Warehouse Storage Shuttle Racking

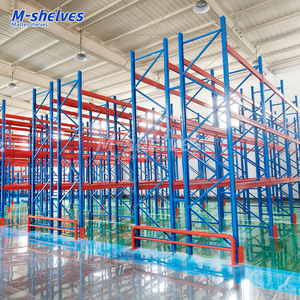

Warehouse Shelves Pallet Racking System Storage Heavy Duty Shelving Rack Pallet Racking Warehouse Racks

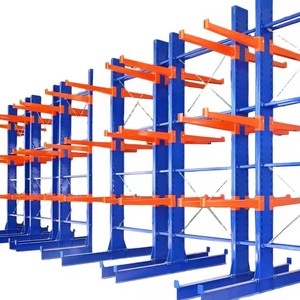

Industrial Heavy Duty OEM ODM Storage Racks Wall Mounting Tube Racking Gavenized Cantilever Rack For Warehouse

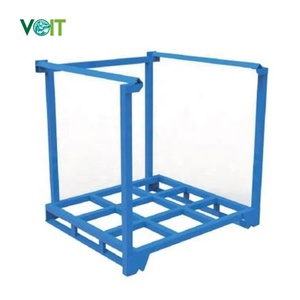

Industrial Storage 1000kg Loading Metal Nestainer Stacking Rack Stacker Pallet
OEM/ODM Selective Pallet Racking Structural Mechanics & Engineering Standards
An authoritative analysis of cold-formed structural steel behavior, safety factors, and custom OEM/ODM manufacturing workflows for high-bay warehouse operations.
The Science of Selective Storage Density & Direct Accessibility
Selective pallet racking represents the foundational architecture of global industrial logistics. Characterized by its 100% direct pallet accessibility, it allows material handling equipment to reach any stored Stock Keeping Unit (SKU) without requiring the repositioning of adjacent loads. As enterprise warehouse operators face shifting global supply chains, the demand for precision-engineered selective racking has evolved from standardized off-the-shelf components into highly specialized **OEM/ODM customized structural systems**.
From an structural engineering perspective, selective racking systems rely on an interconnected assembly of cold-formed vertical upright frames, horizontal load beams, and rigid beam-to-column connectors. Each system must be calibrated using **Finite Element Analysis (FEA)** to simulate dynamic stress distribution, axial buckling resistance, and flexural torsional behavior under variable loading scenarios.
- 100% Selectivity with uninhibited access to all pallet locations.
- Engineered compliance with EN 15512, FEM 10.2.02, and RMI (ANSI MH16.1) standards.
- Fully customizable beam pitch adjustments (50mm / 75mm / 76.2mm spacing).
- Optimized for standard counterbalance, reach trucks, and Very Narrow Aisle (VNA) stackers.
Metallurgical Integrity & Structural Deflection
Our manufacturing infrastructure utilizes premium-grade structural carbon steel—specifically **Q235B and Q355B**—sourced directly from premier steel mills such as Baosteel, Masteel, and Wuhan Iron and Steel. Yield strength capabilities are rigorously controlled:
• Q235B Steel: Nominal Yield Point $\ge 235\text{ MPa}$, Tensile Strength $370\text{--}500\text{ MPa}$. Ideal for standard warehouse load profiles up to $1,000\text{ kg/pallet}$.
• Q355B Steel: High-tensile alloy with Yield Strength $\ge 355\text{ MPa}$, Tensile Strength $470\text{--}630\text{ MPa}$. Engineered for heavy-duty structural loading, high-bay upright heights exceeding 12 meters, and high seismic zones.
Maximum beam deflection under full nominal design load is strictly constrained to **Max $L/300$** (where $L$ is the clear beam length), preventing permanent plastic deformation and guaranteeing long-term operational safety.
Factory-Direct OEM/ODM Fabrication & Surface Treatment
How our 20,000+ square meter manufacturing base ensures millimeter-precise tolerances and multi-decade corrosion prevention.
German Cold Roll-Forming Lines
Upright columns and structural beams are cold-formed on multi-stage continuous roll-forming lines. Automated CNC punching dies ensure pitch distance tolerances remain within $\pm 0.1\text{ mm}$, with cumulative hole-pitch error capped at $\le \pm 2\text{ mm}$ across an entire 12-meter upright profile.
Robotic Manipulator Welding
Beam end-connectors (claw plates) are joined to box or step beams using fully automatic robotic MIG/MAG welding manipulators. This guarantees deep weld penetration, zero porosity, continuous structural seams, and eliminates human error during assembly.
220-Meter Automated Powder Coating
Components undergo a rigorous 10-stage pre-treatment phase: chemical degreasing, acid rust removal, water rinsing, and zinc phosphating. Finished parts are coated using Swiss Gema electrostatic powder spraying guns and thermoset-cured at 180°C, delivering an impact-resistant, uniform coating thickness of $60\text{--}90\,\mu\text{m}$.
| Technical Feature | Standard Market Racking | ApexDrive OEM/ODM Enterprise Racking |
|---|---|---|
| Raw Material Origin | Commercial Scrap / Re-rolled Steel | Certified Baosteel & Masteel Q235B / Q355B Prime Steel Coils |
| Upright Pitch Accuracy | $\pm 3.5\text{ mm}$ over 6 meters | $\le \pm 2.0\text{ mm}$ cumulative error over 12-meter continuous sections |
| Safety Factor Ratio | 1.35 to 1.40 | 1.55 to 1.80 (Engineered for seismic M7 resilience) |
| Welding Quality Control | Manual Spot Welding | 100% Automated Robotic Manipulator Continuous MIG Welding |
| Surface Finish & Curing | Air-dried paint or thin spray ($30\,\mu\text{m}$) | 10-Stage Phosphating + 180°C Thermosetting Powder Coating ($60\text{--}90\,\mu\text{m}$) |
| International Compliance | Basic Internal Specs | ISO 9001:2015, CE Certified, EN 15512, RMI Compliance Reports |
Future Procurement Trends in Selective Pallet Racking (2025–2030)
How evolving supply chain paradigms, automation integration, and sustainability imperatives are redefining enterprise storage purchasing.
1. Integration of Automation-Ready Hybrid Selective Systems
Modern distribution facilities are transitioning away from purely manual forklift operations toward **hybrid automated infrastructure**. Procurement officers are increasingly specifying selective pallet racking frames engineered to accommodate future integration with Autonomous Mobile Robots (AMRs), AGV stackers, and overhead monorail picking lines.
This trend demands enhanced frame rigidity, strict floor anchor tolerances, and customized rack baseplates designed to absorb dynamic braking forces from high-speed robotic guidance vehicles. OEM manufacturers must provide pre-drilled structural attachment points and sensor mounts during primary roll-forming.
2. High-Bay VNA & Floor Area Optimization
With industrial land acquisition costs rising globally by 18-24% year-over-year, procurement strategies prioritize vertical spatial density. **Very Narrow Aisle (VNA) Selective Racking** systems utilizing specialized turret trucks allow aisle widths to shrink from $3.5\text{ meters}$ down to $1.6\text{ meters}$, elevating clear storage heights to $15\text{ meters}$ or more.
Procuring VNA systems requires absolute precision regarding ground flatness (FF/FL numbers according to ASTM E1155 or DIN 15185) and high-strength Q355B alloy upright columns to resist dynamic mast-sway during top-level pallet loading.
3. Sustainability & Low-Carbon Green Metallurgy
Multinational enterprise buyers are imposing strict Scope 3 emissions reporting across their supply chain vendors. Industrial storage procurement contracts now prioritize manufacturers who incorporate **low-carbon steel processing** and VOC-free electrostatic powder coating finishes.
Our factory leverages continuous closed-loop water recycled pre-treatment lines and energy-efficient 180°C curing ovens, reducing overall carbon footprint per ton of fabricated steel by up to 22% compared to traditional paint-dipping workshops.
4. IoT Structural Health Monitoring & Smart Sensors
Accidental forklift impacts represent one of the highest structural failure risks in heavy-duty logistics facilities. Advanced procurement specifications now request selective pallet racking fitted with **embedded IoT load cells, tilt sensors, and impact monitors**.
These smart accessories provide real-time telemetry regarding column overload, frame displacement, and seismic vibration events, allowing logistics managers to conduct predictive maintenance before catastrophic structural collapse occurs.
Product Evolutionary Trends: Cold Storage & Anti-Seismic Advances
Technological innovations enhancing performance in sub-zero environments and high-risk seismic environments.
Sub-Zero Metallurgical Ductility
Standard carbon steel experiences a sharp drop in impact toughness at sub-zero temperatures (Charpy V-Notch transition). For cold-chain food logistics operating down to $-30^\circ\text{C}$, our ODM engineering formulates modified structural steel chemistry with higher manganese and lower sulfur/phosphorus content to prevent low-temperature brittle fracture.
Dynamic Anti-Seismic Baseplates
Traditional rigid anchors often shear during seismic dynamic displacement. Advanced OEM selective racking now incorporates flexible seismic baseplates engineered with energy-dissipating friction dampers. These components absorb horizontal ground accelerations up to **Magnitude 7 on the Richter scale**, keeping storage structures intact.
Modular Fast-Lock Accessories
To minimize installation labor costs, racking design is shifting toward tool-less click-in accessories. Safety pins feature self-locking automatic drop mechanisms; column guards and drop-in wire decking snap directly into post profiles without requiring field drilling or specialized hardware.
Why Partner with ApexDrive Industrial Racking?
Established in 2006 in Nanjing, China, ApexDrive brings 18+ years of dedicated storage engineering expertise to global enterprise accounts.
Turnkey Storage Systems from Layout CAD to Final Commissioning
ApexDrive Industrial Racking Co., Ltd. operates a modernized **20,000 m² manufacturing base** equipped with over 150 sets of specialized equipment, including high-speed roll-forming mills, automated robotic welding cells, and a 220-meter continuous powder coating production line.
We provide full-spectrum engineering support: from initial building architectural analysis and custom CAD/3D structural design to load testing, trial assembly, export shipping packaging, and worldwide installation guidance.
- Raw Material Control: Exclusive usage of prime Baosteel and Masteel structural coils.
- Quality Certifications: Fully ISO 9001:2015 and CE Certified for structural safety.
- Pre-Shipment Trial Assembly: Every batch undergoes full frame fitting checks before packing.
- Export Packaging: Multi-tier steel strapping and heavy-duty plywood containers prevent transit damage.
Our Closed-Loop 8-Step Service Process
1. Technical Consultation: 24/7 engineering consultation.
2. Site Survey & Layout: Detailed dimensional checklist analysis.
3. Free CAD & Load Report: Customized layout drawings and structural calculations.
4. Design Optimization: Fine-tuning capacity, cost, and forklift clearances.
5. Contract & Spec Lock: Formal drawing approval.
6. Precision Production: Real-time production status reports.
7. Global Shipping & Logistics: Bundled export packaging.
8. Installation & After-Sales: English manuals, video guidance, and field dispatch options.
Frequently Asked Questions for Overseas Procurement Directors
Technical answers from our structural design team to simplify your warehouse equipment sourcing.
Q1: What exact technical parameters are required for a custom selective rack design quote?
To generate an accurate CAD layout and load calculation report, we require: (1) Warehouse building DWG drawing showing clear under-truss height, column grid locations, building doors, and sprinkler clearance; (2) Pallet dimensions (Width x Depth x Height including cargo overhang) and Maximum Load Weight per pallet; (3) Required total pallet position capacity; (4) Forklift model, maximum lift height, and minimum aisle turn radius; (5) Operational ambient temperature (standard room temp vs cold storage).
Q2: How do you verify material quality and structural yield strength compliance?
Every steel coil delivered to our factory is accompanied by an official Original Mill Test Certificate (MTC) stating the chemical heat analysis and mechanical physical properties (Yield Strength, Tensile Strength, and Elongation %). Components are stamped with batch numbers, and tensile test reports are available upon request for every production run.
Q3: What is the difference between teardrop and structural bolted selective pallet racking?
Teardrop racking features a punch pattern widely used in North America, allowing boltless beam installation with self-locking rivets. Structural bolted racking (common in European EN 15512 standards) uses structural steel channels or cold-formed uprights bolted directly to heavy-duty beam end-plates with Grade 8.8 high-tensile fasteners. Bolted systems provide higher shear resistance and are preferred for heavy industrial loads or seismic locations.
Q4: How are upright frames and long beams protected against container transport damage?
Uprights and beams are bundled using heavy-duty steel strapping over protective cardboard edge guards and plastic stretch film wrapping. Small accessories (baseplates, shims, safety pins, bolts) are packed into solid wooden boxes or reinforced cartons placed on plywood export pallets. This ensures easy forklift unloading and protects powder-coated surfaces from ocean salt spray and transit vibration.
Q5: Do you provide international installation support and structural engineering certification?
Yes. Every order ships with step-by-step 3D assembly manuals, detailed component piece-marks, and structural installation video walkthroughs. Our structural engineering team provides online guidance, and for large-scale enterprise projects, we can dispatch certified installation supervisors directly to your project site overseas.
Request Your Custom Selective Pallet Racks Engineering Proposal Today
Send us your warehouse floor plan and pallet specifications. Our senior structural engineers will return a complimentary CAD layout drawing, structural load analysis, and competitive factory-direct quote within 24 hours.
