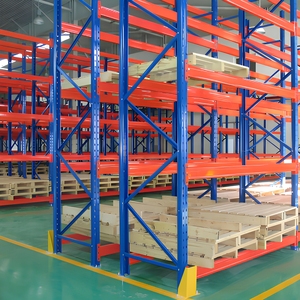

Steel Heavy Duty Double Deep 5 Pallet Rack High Density Warehouse Racking System Space Saving Reach Truck Access OEM Supplier

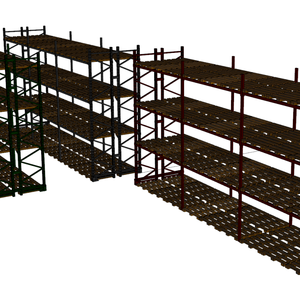

Heavy Duty Pallet Rack System Steel Storage Rack Industrial Easy Assembly Adjustable for Bulk Storage
Shuttle Rack Selective Automatic Warehouse Storage Pallet Racks Radio Shuttle Rack System for High Density

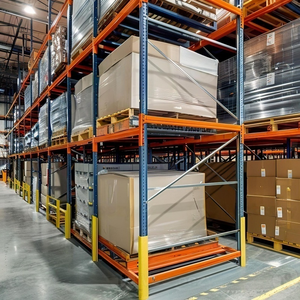

Powder Coated Steel Push Back Pallet Rack with 1000-2000kg Capacity Standard Pallet Compatible for Factory Bulk Goods Storage

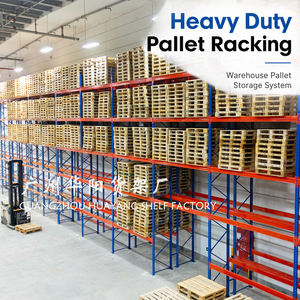

3000KG Per Level Heavy Duty Pallet Rack Industrial Warehouse Storage Steel Shelving Adjustable Pallet Racking System
Wholesale Price Heavy Duty Storage Racks Warehouse Stacking Racks Selective Steel Pallet Rack Heavy-Duty Racking For Sale

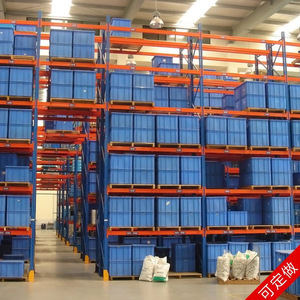

Heavy Duty Cold Rolled Steel Multi-Layer Pallet Racking High Bay Warehouse Storage System Epoxy Powder Coated Construction
Technical Whitepaper
OEM/ODM Single Deep Pallet Racking: Engineering Architecture & Structural Mechanics
In modern industrial logistics, Single Deep Pallet Racking—widely recognized as Selective Pallet Racking—remains the benchmark infrastructure for high-turnover fast-moving consumer goods (FMCG), third-party logistics (3PL) fulfillment centers, automotive manufacturing, and pharmaceutical cold supply chains. Offering 100% immediate access to every pallet position, Single Deep Racking eliminates product honeycombing while accommodating multi-SKU profiles with varying inventory velocities.
As a leading China-based OEM/ODM racking manufacturer operating since 2006, our structural design philosophy synthesizes strict compliance with international structural codes (including ISO 9001:2015, CE directives, FEM 10.2.02, and EN 15512 standards) with optimized steel consumption. By precision roll-forming high-grade cold-rolled steel coils, we engineer custom upright profiles and beam sections capable of safely sustaining unit loads up to 4,000 kg per beam level with structural deflections well below the mandatory L/300 threshold.
Information Gain Insight: Unlike standard off-the-shelf selective racking, engineered OEM/ODM Single Deep configurations utilize differential punch pitch geometry (75mm or 50mm adjustment steps) combined with cold-formed teardrop or omega upright columns. This maximizes vertical cube utilization without sacrificing lateral torsional stability under dynamic forklift impact loading.
Anatomy of Heavy-Duty Single Deep Pallet Racking
A resilient Single Deep racking architecture comprises five critical structural assemblies, each meticulously calculated to withstand static dead loads, dynamic live loads, wind forces, and seismic moments:
1. Upright Frames (Columns)
Roll-formed continuous profiles up to 12 meters in height without splice welds. Engineered with rigid bracing patterns (diagonal and horizontal members riveted or bolted using 8.8-grade tensile fasteners) to dissipate axial buckling forces.
2. Box Beams & Step Beams
Fabricated by inter-locking two C-sections or roll-forming continuous stepped beams. High-precision robotic welding joins heavy-duty cast steel beam connectors featuring 3 to 5 claw hooks for maximum shear resistance.
3. Auto-Locking Safety Pins
Integrated spring steel or heavy-duty safety pins automatically lock the beam connectors into the upright column perforations, preventing accidental dislodgement during material handling lift cycles.
Manufacturing Integrity
Factory Direct Engineering & Metallurgical Superiority
From raw structural coil inspection to 220-meter automated powder coating, experience full supply chain transparency.
Tier-1 Steel Sourcing
We source certified prime Q235B and Q355B steel coils exclusively from premier state steelmakers including Baosteel, Masteel, and Wuhan Iron and Steel. Mill certificates confirm guaranteed yield point strength and uniform wall thickness tolerances.
Automated Robotic Welding
Multi-axis ABB robotic manipulator welding stations execute continuous, full-penetration seam welds on all beam end connectors. Eliminates porosity, splatter, and localized stress concentrators common in manual arc welding.
220m Powder Coating Line
Components undergo 10-stage pre-treatment (degreasing, phosphating, pure water rinse) prior to electrostatic thermosetting epoxy-polyester powder application. Cured at 180°C to deliver superior impact resistance and salt spray anti-corrosion life.
Trial Assembly & QA
Every customized project undergoes pre-shipment trial frame assembly. Hole alignment, upright plumbness, and beam connector tolerances are verified under laser inspection tools to ensure flawless on-site installation overseas.
Future Forecasting
Global Procurement & Product Future Trends for Single Deep Racking
As global supply chains navigate volatile freight costs, warehouse land scarcity, and the rapid adoption of automated material handling equipment, procurement officers must align their storage infrastructure investments with key emerging industry trends:
1. Transition to High-Yield Cold-Formed Steels (Q355B vs Q235B)
Traditional racking relied heavily on standard Q235 steel grade (yield strength 235 MPa). Global procurement trends indicate a rapid shift toward Q355B micro-alloyed steel. With yield strengths reaching 355 MPa, Q355B allows manufacturers to reduce component deadweight while maintaining identical structural loading capacity. This directly lowers international container shipping costs per pallet slot and reduces total embodied carbon footprint.
2. Hybrid Integration with AGVs & Autonomous Mobile Robots (AMRs)
While traditional Single Deep systems were designed exclusively for manual counterbalance or reach trucks, modern enterprise procurement demands hybrid compatibility. Baseplates are now specified with flush floor anchor recesses, column base heavy-duty impact shrouds, and laser reflector bracket mounts to support guided AGVs and AMR picking vehicles operating in narrow aisle widths.
3. Modular OEM/ODM Structural Standardization
Overseas buyers increasingly avoid proprietary single-source rack geometries. The dominant trend is standardizing on universal tear-drop or 75mm beam hook pitch systems that allow cross-compatibility with secondary decking accessories (wire mesh decking, pallet support bars, drop-in steel panels, and safety mesh back-stops).
Strategic Sourcing Note: To mitigate long-term maintenance risk, global buyers should request OEM/ODM suppliers to provide certified structural CAD calculation sheets detailing beam deflection curves, seismic horizontal force acceleration vectors (Z-factors), and column base anchorage shear stress calculations under full bay load conditions.
Data Visualization
Pallet Racking System Matrix Comparison
Evaluate storage density, selectivity, forklift compatibility, and structural ROI across industrial storage topologies.
| Racking System Type | Pallet Selectivity | Storage Density | Required Aisle Width | Handling Equipment | Cost per Pallet Slot |
|---|---|---|---|---|---|
| Single Deep Selective Rack | 100% Direct | Moderate (40-50%) | 3.0m – 3.8m | Standard Forklift / Reach Truck | Lowest / Highly Economic |
| Double Deep Pallet Rack | 50% Direct | High (60-65%) | 3.0m – 3.5m | Pantascope / Deep-Reach Truck | Moderate |
| Radio Shuttle Racking | LIFO / FIFO Lanes | Ultra High (80-85%) | Aisle free (In-lane) | Radio Shuttle + Forklift | High (Automation ROI) |
| Drive-In Warehouse Rack | LIFO Only | High (65-75%) | Drive-in Tunnel | Counterbalance Forklift | Moderate |
| VNA (Very Narrow Aisle) | 100% Direct | High Vertical (70%) | 1.6m – 1.8m | VNA Turret Truck / Rail Guided | Moderate - High |
Factory Direct Advantages
Why Partner with Our Racking Manufacturing Facilities?
End-to-end engineered solutions managed under strict quality governance from raw material to global destination installation.
1. Fully Customized OEM/ODM Manufacturing
We tailor beam section depths (80mm to 160mm), column profile widths (80mm to 120mm), material gauges (1.5mm to 3.0mm), and custom brand colors (RAL color matching) to fulfill exact project engineering parameters.
2. Free Engineering Layout & 3D Modeling
Our structural design team delivers full CAD layout drawings, bay weight capacity matrix reports, and 3D warehouse simulations free of charge. We optimize aisle geometry based on your specific forklift turning radius specs.
3. Heavy Duty Export Packaging Standards
Components are bound with high-tensile steel strapping and edge-protectors. Hardware accessories, safety pins, and baseplates are packed in wooden boxes on heat-treated plywood pallets to prevent ocean transit damage.
Global Buyers FAQ
Frequently Asked Questions on Single Deep Pallet Racking Procurement
Clear, authoritative technical answers to assist your engineering and purchasing decisions.
What technical data is required to generate a custom Single Deep Racking design?
To produce an optimized CAD layout and quotation, our structural engineering team requires: (1) Warehouse building CAD drawings indicating clear underside height, column grid locations, door dimensions, and floor levelness (FF/FL numbers); (2) Pallet specifications including overall dimensions (W x D x H), total unit load weight including pallet; (3) Required stock rotation rules (FIFO/LIFO); and (4) Forklift truck model, maximum reach height, and minimum aisle turning clearance requirements.
What structural steel standards and anti-corrosion finishes are used?
We strictly utilize certified Q235B and Q355B cold-rolled structural steel from tier-1 Chinese mills (Baosteel, Masteel). Finish options include electrostatic epoxy-polyester powder coating (60–80 micron thickness) cured at 180°C for ambient indoor storage, or hot-dip galvanizing (HDG) conforming to ISO 1461 standards for cold storage (-30°C) or outdoor high-humidity environments.
How do Single Deep Selective Racking systems resist seismic activity?
Our OEM/ODM structural designs comply with FEM 10.2.02 and RMI seismic parameters. By engineering enlarged baseplates, double-anchor floor bolts, heavy-duty diagonal frame bracing, and custom moment-resisting beam-to-column connections, our systems are rated to withstand seismic ground accelerations up to M7 intensity without catastrophic bay collapse.
What support is provided for international installation and assembly?
Every project ships with detailed CAD installation assembly drawings, component marking maps, and step-by-step English installation manuals. Additionally, our engineering staff provides real-time online video technical guidance, and for major commercial warehouse projects, experienced installation supervisors can be dispatched to oversee local installation crews.
How are racking products packed for ocean container loading?
Uprights and beams are nested into rigid bundles secured with multi-tier heavy-duty steel strapping and plastic corner guards. Small hardware items (bolts, safety pins, row spacers, levelling shims) are boxed in heavy-duty export cartons and palletized on export-compliant plywood pallets, maximizing container cube space while protecting powder-coated surfaces.
