ApexDriveRACKING
Featured Warehouse Racking Systems & OEM Solutions
Factory-direct engineered pallet storage systems manufactured with Q235B/Q355B structural steel, automated robotic welding, and Swiss Gema electrostatic powder coating.
20,000 m²
Production Base
150+ Sets
Advanced Equipment
30,000 Tons
Annual Capacity
6,000+
Global Projects
1. Automated Storage and Retrieval Systems (AS/RS): Structural Physics & System Architecture
Modern automated logistics hubs require extreme dimensional tolerances, exceptional dynamic rigidity, and rigorous deflection management. An Automated Storage and Retrieval System (AS/RS) represents the pinnacle of warehouse spatial optimization, combining high-bay structural rack frameworks, precision stacker cranes (SRMs), radio shuttle cars, material handling conveyors, and integrated Warehouse Management System (WMS) & Warehouse Control System (WCS) platforms.
Unlike conventional selective pallet racking, AS/RS structures function simultaneously as structural load-bearing components and precision guidance tracks for automated machinery operating at horizontal speeds up to 240 m/min and acceleration rates exceeding 1.5 m/s². The structural integrity of high-bay AS/RS systems (ranging from 12 meters to over 45 meters in height) relies heavily on cold-formed high-tensile structural steel profiles such as Q235B and Q355B, conforming strictly to international engineering benchmarks including FEM 10.2.09 (The Design of AS/RS Racking), EN 15512, and RMI (Rack Manufacturers Institute) specifications.
Information Gain Insight: The critical failure point in high-density AS/RS automation is not ultimate tensile failure, but structural sway displacement under dynamic sway loads (L/300 to L/400 allowable deflection parameters). Precision roll-forming machines with cumulative hole-pitch tolerance under ±2 mm over 12-meter single-piece upright columns are essential to guarantee zero stacker crane jam events during high-speed insertion and extraction cycles.
When engineering high-bay unit-load AS/RS systems, material selection directly impacts lifetime structural stability and seismic tolerance. Upright profiles utilize cold-rolled C-section structural columns with multi-fold rib reinforcement, ensuring superior section modulus ($Z_x$) and radius of gyration ($r$). Structural components undergo a 10-stage pretreatment process—including hot degreasing, acid rust removal, zinc phosphating, and deionized water rinsing—before entering a 220-meter automated powder coating line utilizing Swiss Gema electrostatic spray gun systems, curing at 180°C to achieve a durable 80–120 μm protective barrier against mechanical abrasion and atmospheric oxidation.
2. Technical Parameter Matrix: AS/RS vs. High-Density Racking Systems
To assist procurement directors and supply chain engineers in selecting optimal storage technology, the table below provides an objective engineering comparison between automated stacker-crane AS/RS, multi-tier pallet shuttle systems, and conventional rack configurations.
| System Architecture | Storage Density Rating | Direct Selectivity | Operating Height Limit | Max Unit Load (kg) | Throughput Speed | WMS / WCS Integration |
|---|---|---|---|---|---|---|
| Unit-Load AS/RS (Crane-Based) | Maximum (90-95%) | 100% (Single-Deep) / 50% (Double) | Up to 45 Meters | 1,000 – 3,000 kg | Very High (Automated) | Native Full Control |
| Radio Shuttle Racking | High (80-85%) | LIFO / FIFO (Per Lane) | Up to 18 Meters | 1,500 – 2,000 kg | High (Semi-Automated) | Optional / WCS Ready |
| VNA (Very Narrow Aisle) Racking | Medium-High (65-75%) | 100% Direct Access | Up to 15 Meters | 1,000 – 1,500 kg | Moderate (Turret Truck) | Manual / Barcode Scan |

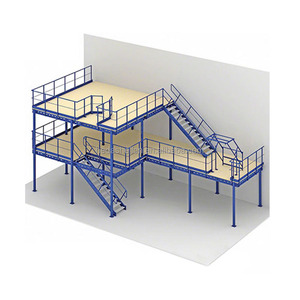

| Mezzanine Floor & Steel Platform | High Vertical Use | Manual Picking (100%) | 2 to 4 Deck Tiers | 300 – 1,000 kg/m² | Medium (Manual/Conveyor) | Manual / ERP Integrated |

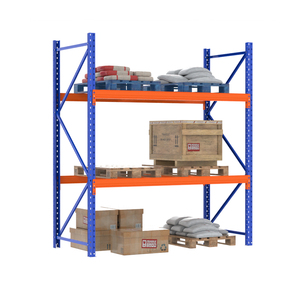

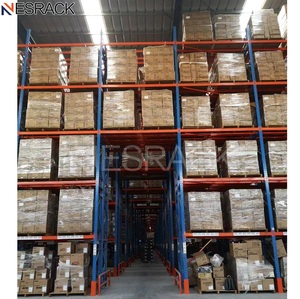

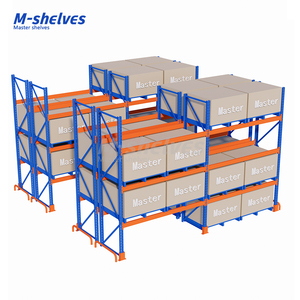

| Heavy-Duty Selective Pallet Rack | Standard (40-50%) | 100% Direct Access | Up to 12 Meters | 1,000 – 4,000 kg/layer | Standard Forklift | Manual / Basic WMS |
3. Global Top 10 ASRS Pallet Racking Manufacturers Benchmark
Selecting an OEM manufacturer for automated pallet storage infrastructure requires evaluating manufacturing engineering capacity, steel grade authenticity, structural testing capabilities, and project execution records. Below is an authoritative technical benchmark of the world's leading AS/RS and pallet racking system original equipment manufacturers (OEMs):
1. ApexDrive Racking (China OEM Base)

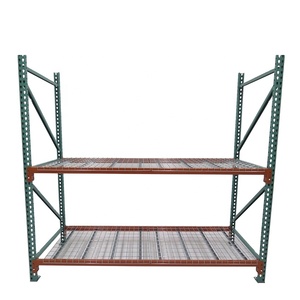

Recognized for direct factory manufacturing power with 20,000 m² facilities, 150+ equipment sets, and 30,000-ton annual output. Offers unmatched cost-to-performance ratio for structural AS/RS racks, radio shuttles, and heavy-duty teardrop pallet systems engineered to ISO 9001 and CE standards.
2. Daifuku Co., Ltd. (Japan)
Global leader in overall turn-key automated material handling systems, specializing in high-speed stacker cranes, cleanroom automation, and proprietary WMS software platforms across semiconductor and automotive sectors.
3. SSI Schaefer (Germany)
Renowned for premium European structural engineering, modular shuttle systems, and comprehensive logistics software (WAMAS) designed for high-density retail and pharmaceutical distribution hubs.
4. Dematic (KION Group, USA/Germany)
Specializes in large-scale integrated supply chain automation, offering advanced micro-fulfillment systems, high-speed unit-load AS/RS, and automated guided vehicles (AGVs).
5. Vanderlande (Toyota Automated Logistics, Netherlands)
Global specialist in airport baggage handling and warehouse automation solutions, delivering seamless parcel sorting and shuttle-based AS/RS systems.
6. Mecalux (Spain)
Major international racking manufacturer providing versatile storage racking solutions, automatic warehouse systems, and warehouse management software across Europe and the Americas.
4. Key Procurement & Technological Trends in AS/RS Racking (2025–2030)
As modern supply chains evolve toward carbon-neutral operations, extreme space efficiency, and real-time inventory visibility, enterprise procurement teams are prioritizing several technological shifts when ordering warehouse storage infrastructure:
1. 4D Pallet Shuttle Integration
Transitioning from traditional 2D shuttles to 4-directional intelligent shuttles that navigate across longitudinal and transverse tracks inside high-density storage matrixes without requiring dedicated stacker crane aisles.
2. Cold-Chain Energy Optimization
AS/RS solutions engineered for cold storage (-25°C to -40°C) using specialized low-temperature structural steel alloys that maintain ductile toughness without embrittlement, paired with high-density deep-lane layouts to reduce refrigeration air volume energy costs by up to 40%.
3. Green Steel & Sustainable Powder Coatings
Procurement specifications now favor certified low-carbon recycled steel coils (Q235B/Q355B) and heavy-metal-free epoxy-polyester powder coatings that comply with EU REACH and RoHS environmental standards.
5. OEM Factory Engineering Capabilities & Quality Assurance Protocols
ApexDrive Industrial Racking Co., Ltd. (established September 2006 in Nanjing, China) operates a modern 20,000 m² manufacturing plant equipped with over 150 advanced automated production lines. Our manufacturing ecosystem strictly enforces total process control from raw material coil inspection to container export packaging:
- Raw Material Traceability: Exclusive procurement of prime structural steel coils from top-tier Chinese steel mills including Baosteel, Masteel, and Wuhan Iron and Steel. Mill test certificates (MTC) verifying yield strength ($f_y \ge 235 \text{ MPa}$ for Q235B, $f_y \ge 355 \text{ MPa}$ for Q355B) accompany every production batch.
- Precision Roll-Forming Technology: German-engineered continuous cold roll-forming mills produce structural upright profiles up to 12 meters in a single continuous piece, maintaining pitch hole tolerances within ±2 mm over 12,000 mm.
- Robotic Manipulator Welding: Automated robotic welding cells perform full penetration welding on beam connector plates and baseplates, eliminating manual weld seams defect vulnerabilities, cold lap, or porosity.
- High-Strength Fastening: Heavy-duty beam connection structures utilize grade 8.8 high-tensile galvanized bolts and spring-loaded safety pins to prevent accidental beam dislodgment under forklift impact load.
- Export Packaging Standards: Uprights and beams are bundled with multi-tier high-tensile steel strapping and protective edge corner guards. Small components, fasteners, and footplates are boxed in reinforced multi-wall cartons mounted on heat-treated export plywood pallets.
Frequently Asked Questions (FAQ) for Global Buyers
Expert technical answers regarding structural engineering, customized warehouse layout designs, international shipping logistics, and installation procedures.
1. What key engineering parameters are required to generate a custom AS/RS racking layout and cost estimate?
To generate an accurate CAD layout, load calculation, and quotation, our structural engineering team requires:
- Building architectural drawing detailing clear height under truss, column grid spacing, floor slab slab load capacity ($kN/m^2$), doors, and overhead obstacles (sprinklers, lighting, HVAC ducts).
- Unit load specifications: Pallet length, width, height (including goods), and maximum weight per pallet ($kg$).
- Storage volume targets (number of pallet positions) and SKU turnover pattern (FIFO or LIFO).
- Material handling equipment preferences: Stacker crane model, radio shuttle type, or VNA turret truck lift height.
2. What structural steel grades and coating specifications are utilized in ApexDrive racking systems?
We use certified Q235B and Q355B cold-rolled structural steel coils sourced directly from Baosteel and Masteel. Component surfaces undergo a 10-stage chemical cleaning and phosphating process, followed by electrostatic powder coating on a 220-meter automated Swiss Gema line cured at 180°C. For humid, chemical, or outdoor environments, hot-dip galvanizing (HDG) conforming to ISO 1461 with zinc coating thickness of 60–80 μm is provided.
3. How do you support overseas installation and site assembly for large international projects?
Every export project includes comprehensive 3D assembly CAD drawings, detailed English installation manuals, and step-by-step video guides. Our engineering team provides 24/7 online technical support during installation. For large-scale automated AS/RS or multi-tier mezzanine platform projects, ApexDrive can dispatch certified site installation engineers and project supervisors to manage installation, commissioning, and load testing directly on-site.
4. What seismic design considerations are integrated into high-bay AS/RS and pallet racking structures?
Our structural racking designs incorporate dynamic seismic acceleration parameters based on local building codes (such as US IBC/RMI standards, Eurocode 8, or AS 4084). Structural calculations account for seismic zone factors ($Z$), soil type coefficients, dynamic frame sway stiffness, back-bracing frame systems, and heavy-duty floor anchor bolt embedment depth to withstand seismic events up to Magnitude 7.0 without structural collapse.
5. How does ApexDrive guarantee structural quality and prevent transit damage during ocean freight shipping?
Quality control includes pre-shipment trial assembly in our factory to confirm hole alignment and beam connection tolerances. For export transit, upright frames and beams are bundled with multi-tier steel strapping, wrapped in protective stretch film, and fitted with impact-resistant corner guards. Small hardware items are packed in heavy-duty corrugated cartons anchored to heat-treated plywood pallets to survive container sea freight without damage.
Ready to Engineer Your Automated Warehouse Logistics System?
Get in touch with our senior structural racking engineers today for a complimentary CAD layout design, structural load calculation report, and factory-direct quotation.
