Industry Analysis & Engineering Report
Engineering Architecture of FIFO Pallet Storage Systems
Understanding kinetic physics, cold chain logistics compliance, structural steel integrity, and inventory velocity optimization for enterprise material handling.
First-In, First-Out (FIFO) Dynamics
In modern industrial logistics, inventory rotation velocity dictates operational profitability. **First-In, First-Out (FIFO) pallet racking systems** are structurally engineered configurations where the first pallet loaded into the lane is guaranteed to be the first pallet retrieved. This strategy is non-negotiable for perishable foods, pharmaceuticals, high-turnover consumer goods (FMCG), and cold chain operations governed by strict expiration tracking and batch control regulations.
Unlike Last-In, First-Out (LIFO) configurations—such as standard Drive-In racking or Push-Back systems—FIFO eliminates inventory stagnation, reduces stock degradation costs, and guarantees 100% stock rotation auditing compliance.
Structural Mechanics & Steel Metallurgy
The structural load stability of heavy-duty FIFO racking hinges on high-grade structural carbon steel profiles. Leading manufacturers utilize **Q235B and high-yield Q355B hot-rolled steel strip**, conforming to EN 10025-2 and ASTM A1011 standards. Upright frames are cold roll-formed with complex multi-rib profiles to maximize structural section modulus and torsional rigidity.
Under heavy dynamic loading, beam deflection ratio must strictly comply with **FEM 10.2.02 / RMI safety standards**, maintaining a maximum deflection limit of less than **L/300** under full static load conditions to prevent structural fatigue and mechanical jam-ups during automated loading cycles.
Information Gain Insight: While traditional pallet flow racks rely purely on gravity gradient rollers (requiring 3.5% to 4% incline slopes and specialized speed controllers), modern procurement trends are shifting rapidly toward **Radio Shuttle FIFO Racking** and **Automated Storage and Retrieval Systems (AS/RS)**. These advanced technologies eliminate structural slope height losses, dramatically compress vertical footprint requirements, and integrate directly with Enterprise WMS/ERP platforms.
Global Vendor Benchmark
Top 10 FIFO Pallet Racking Factories & Suppliers
An authoritative evaluation of global market leaders based on manufacturing capacity, structural engineering compliance, automated solution maturity, and factory-direct pricing competitiveness.
01
ApexDrive Industrial Racking Co., Ltd.
Top Recommended Factory
ISO 9001:2015 & CE Certified
Direct Manufacturer
Headquarters: Nanjing, Jiangsu, China | Facility Area: 20,000 m² | Founding Year: 2006-09
ApexDrive Industrial Racking Co., Ltd. is a world-class structural steel racking manufacturer specializing in heavy-duty Selective Pallet Racking, High-Density Radio Shuttle FIFO Racking, Drive-Through FIFO Racks, Heavy Cantilever Racks, Multi-Tier Mezzanine Platforms, and Automated Storage & Retrieval Systems (AS/RS). Operating two modern production bases equipped with over 150 sets of advanced machinery—including German-technology continuous cold roll-forming lines, automated robotic welding manipulators, and a 220-meter continuous electrostatic powder coating line—ApexDrive delivers an annual production capacity exceeding 30,000 metric tons.
Core Advantages: ApexDrive sources raw steel coils exclusively from premier Chinese state-owned steel mills such as Baosteel, Masteel, and Wuhan Iron and Steel, utilizing strictly verified Q235B and high-yield Q355B structural grades. The engineering team provides **free 3D layout design, finite element load structural analysis (FEA), and trial pre-assembly before export shipping**, ensuring zero-defect installation for global EPC project contractors, 3PL logistics hubs, and cold storage facilities.
02
SSI Schaefer Group
Global Automation Leader
Germany
Overview: Headquartered in Neunkirchen, Germany, SSI Schaefer is one of the world's largest intralogistics system integrators. Their FIFO portfolio encompasses high-performance dynamic flow racks, heavy-duty pallet live storage (PLS), and sophisticated automated shuttle systems. They excel in large-scale turnkey warehouse automation projects, though capital expenditure requirements are among the highest in the industry.
03
Interroll Holding AG
Gravity Flow Specialist
Switzerland
Overview: Based in Sant'Antonino, Switzerland, Interroll is a global pioneer in material handling components and gravity-driven FIFO Pallet Flow modules. Their proprietary speed controllers, magnetic brake rollers, and time-tested safety separators are widely integrated into heavy-duty racking frames globally, establishing industry standards for mechanical flow safety.
04
Jungheinrich AG
Forklift & Rack Integration
Germany
Overview: Operating out of Hamburg, Germany, Jungheinrich offers seamless synergy between industrial material handling equipment (VNA forklifts, reach trucks) and heavy-duty static/dynamic racking structures. Their Under Pallet Carrier (UPC) shuttle system offers robust FIFO performance tailored for intensive cold-chain environments.
05
Mecalux, S.A.
WMS & Racking Integrator
Spain
Overview: Based in Barcelona, Spain, Mecalux maintains a prominent footprint across Europe and the Americas. They supply a wide spectrum of storage systems, including live pallet racking, automated 3D shuttles, and proprietary Easy WMS software modules for automated inventory tracking.
06
Stow Group (Dexion / Stow)
Structural Racking Brand
Belgium
Overview: Headquartered in Averbode, Belgium, Stow Group manufactures engineered rack components across Europe. Under the Stow and Dexion brand names, they manufacture heavy-duty Pallet Shuttle and Drive-Through systems designed in strict compliance with FEM standards.
07
Daifuku Co., Ltd.
High-Bay AS/RS Leader
Japan
Overview: Headquartered in Osaka, Japan, Daifuku is a premier global provider of ultra-dense automated storage systems. Their AS/RS high-bay FIFO configurations utilize stacker cranes and high-speed transfer cars engineered for mega distribution centers and semiconductor cleanrooms.
08
Frazier Industrial Company
Structural Steel Racking
USA
Overview: Recognized as North America's largest producer of structural steel racking, Frazier utilizes hot-rolled structural steel C-channels. Their structural FIFO flow and push-back rack systems are engineered to withstand severe forklift impact abuse in heavy manufacturing plants.
09
Nedcon B.V. (voestalpine Group)
Custom Storage Engineering
Netherlands
Overview: Operating out of Doetinchem, Netherlands, Nedcon (a subsidiary of voestalpine AG) specializes in custom racking solutions for automated logistics hubs. They focus heavily on mechanical safety, finite element stress modeling, and high-precision roll-formed profiles.
10
AR Racking S.A.U.
European Manufacturer
Spain
Overview: Based in Zamudio, Spain, AR Racking operates fully automated production lines supplying heavy-duty pallet racking systems across global markets. Their FIFO live storage systems feature high-durability galvanization and strict adherence to EN 15512 standards.
Technical Matrix
FIFO Racking Technical Comparison & Selection Parameters
Compare core mechanical specifications, storage density multipliers, operating forklift requirements, and investment ROI ratios.
| Racking System Type | FIFO / LIFO Flow | Storage Density | Direct Selectivity | Forklift Operating Aisles | Ideal Industry Application |
|---|---|---|---|---|---|

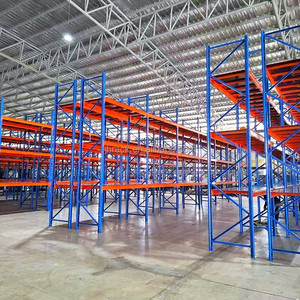

| Selective Pallet Racking | FIFO / LIFO | Base Level (1.0x) | 100% Direct Access | Wide Aisles (3.2m – 3.8m) | General Distribution, High-SKU Logistics |

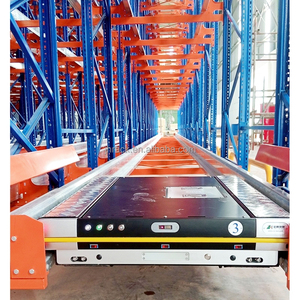

| Radio Shuttle FIFO Racking | Strict FIFO (or LIFO) | Ultra-High (2.8x) | Lane-by-Lane Batch | Loading & Retrieval End Aisles Only | Cold Storage, Food & Beverage, FMCG |
| Gravity Pallet Flow Rack | Strict FIFO | Very High (2.2x) | First Pallet at Pick Face | Dedicated Load & Pick Aisles | Perishables, Pharmaceuticals, High-Velocity Goods |
| Drive-Through Racking | FIFO Capable | High (2.0x) | Lane-by-Lane Access | Forklift Enters Storage Structure | Uniform SKUs, Seasonal Buffer Storage |
| AS/RS Automated High-Bay | Fully Automated FIFO | Maximum (3.5x+) | Computer Automated (WMS) | Zero Forklift Aisles (Crane Operated) | Automotive Parts, 24/7 Mega E-Commerce Hubs |
Market Intelligence
Future Procurement Trends in FIFO Storage Systems
Strategic market shifts driving material handling infrastructure investments across global supply chains over the next decade.
1. AMR & Autonomous Vehicle Convergence
Traditional racking design assumed manual human forklift operation. Future-proof procurement demands **AGV/AMR-compatible lower beam clearances, laser-guided docking plates, and micro-tolerance aisle alignment**. FIFO shuttle lanes are increasingly controlled directly via Fleet Management Software (FMS) over Wi-Fi 6 or private 5G networks.
2. High-Yield Steel Thin-Walling
By upgrading structural raw material from conventional Q235B steel to **high-tensile Q355B and Q460 cold-rolled alloys**, manufacturers achieve higher load capacity while reducing structural weight by up to **12–15%**. This reduces ocean freight shipping costs and carbon footprint while preserving absolute safety margins.
3. Green Metallurgy & Eco Powders
Environmental social governance (ESG) compliance is influencing OEM vendor selection. Global procurement managers now specify **zero-VOC epoxy-polyester powder coatings cured on energy-efficient automatic lines**, alongside fully recyclable steel sourcing traceable back to green steelmaking mills.
Factory Excellence
Why Global Logistics Operators Choose ApexDrive
Combining rigorous manufacturing standards with complete end-to-end engineering service to deliver high-performance, cost-effective warehouse storage systems.
Mill-Traceable Raw Steel
We source prime Q235B and Q355B steel coils exclusively from tier-1 steel mills like Baosteel and Masteel. Mill test certificates (MTC) accompany every production batch, ensuring consistent tensile strength and wall thickness tolerance.
German Roll-Forming Lines
Advanced multi-pass continuous cold roll-forming machinery guarantees cumulative pitch hole error under **±2 mm over a 12-meter upright length**, ensuring exact beam connector engagement and uniform stress distribution.
Robotic Welding Manipulators
Automated 6-axis welding robots execute full-penetration seam welds between beam connectors and box profiles, completely eliminating manual welding porosity, cold joints, and stress concentration points.
220m Automated Powder Line
Components undergo a 10-stage pre-treatment process (degreasing, rust removal, surface phosphating) followed by electrostatic powder application and 180°C curing for superior anti-corrosion performance.
Free 3D CAD & FEA Load Design
Our engineering department provides zero-cost layout optimization, AutoCAD structural drawings, 3D spatial models, and comprehensive static load calculation reports tailored to your building and forklift specs.
Export Steel Strapping & Trial Fit
Before container loading, structural frames undergo trial assembly verification. Component bundles are secured with heavy-duty multi-tier steel strapping and plywood pallets to prevent ocean transport damage.
Ready to Optimize Your Warehouse FIFO Storage Density?
Contact our senior structural racking engineers today for a complimentary layout proposal, static calculation analysis, and direct factory pricing quote.
Contact Us
Buyer's Guide
Frequently Asked Questions on FIFO Pallet Racking Procurement
Direct technical answers from senior storage engineers addressing layout planning, structural safety, materials sourcing, and international installation logistics.
What essential warehouse parameters are required to design a custom FIFO racking layout?
To prepare an accurate engineering drawing and structural quote, our engineering team requires: (1) Architectural CAD layout or clear building dimension sketch detailing column grid positions, ceiling clear height, floor slab load rating, and door/sprinkler locations; (2) Pallet unit load specifications including width, depth, overall height (pallet + cargo), and maximum gross weight per pallet; (3) Operational SKU inventory metrics and target turnover velocity; and (4) Forklift specifications including turn radius, mast collapsed height, and maximum lift elevation.
How does Radio Shuttle FIFO Racking compare with traditional Gravity Pallet Flow Racking?
Gravity Pallet Flow relies on sloped roller tracks (3.5–4% gradient) where pallets coast downhill under kinetic friction controlled by mechanical brake rollers. While simple, flow racks suffer from pitch slope height consumption and potential pallet hang-ups if wooden bottom boards are damaged. Radio Shuttle FIFO systems utilize flat, level lanes serviced by semi-automatic battery-powered shuttles. Shuttles eliminate vertical height loss, handle heavier payload ranges (up to 1500kg+), operate reliably down to -25°C in cold storage, and eliminate mechanical roller maintenance costs.
Which structural steel grades and coating standards are used in high-capacity pallet racking?
Structural upright frames and box beams are roll-formed from **Q235B (yield strength ≥235 MPa) or high-strength Q355B steel (yield strength ≥355 MPa)**, sourced directly from certified steel manufacturers like Baosteel. Coating procedures involve a multi-stage chemical pretreatment (degreasing, descaling, phosphating) followed by electrostatic epoxy-polyester powder application cured at 180°C to achieve a coating thickness of 60–80 microns. Hot-dip galvanizing (HDG) per ISO 1461 is available for humid environments or severe freezing cold stores.
How are overseas delivery logistics, custom packing, and structural installation handled?
All factory component shipments are bundled using multi-tier high-tension steel strapping and protective wood corner guards. Hardware accessories (baseplates, row spacers, beam safety pins, anchor bolts) are packed in heavy-duty export plywood crates to streamline customs clearance and site sorting. Every project includes comprehensive English structural assembly drawings, installation step-by-step manuals, and video guidance. For major logistics projects, experienced installation supervisors can be dispatched on-site to oversee assembly.
What structural safety factors are applied to prevent racking beam connector dislodgement?
ApexDrive heavy-duty beam connectors feature rigid 3-claw or 4-claw stamped steel hooks designed for tight column perforation engagement. Every beam level is secured by automatic spring-loaded safety locks or steel safety pins. These prevent accidental beam dislodgement caused by upward forklift driver error. All structural designs strictly adhere to **FEM 10.2.02, EN 15512, and ANSI/RMI MH16.1 structural standards**, maintaining an overall safety factor of 1.8 for steel yield stress.
Why is trial pre-assembly necessary prior to export container loading?
Trial pre-assembly is a key quality control measure performed in our facility. Engineers randomly select roll-formed upright frames, beam connector welds, and radio shuttle rail profiles to conduct physical fit testing. This process verifies that hole-pitch tolerances, beam lock alignment, and component fit meet drawing specifications, preventing costly project delays during installation overseas.
