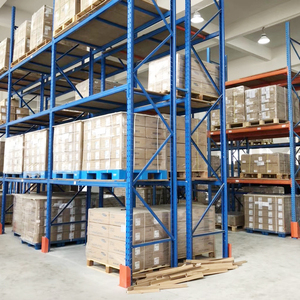

Industrial Pallet Rack Warehouse Rack Q235B Steel Heavy Duty 5 Adjustable Storage Rack Manufacturer FEM/RMI Certified Custom
Inquire Now
Customized Industrial Pallet Rack System Warehouse Storage Solution Manufacturer
Inquire Now
All Bolt Assembly Structure Easy Disassembly and Relocation High Density Double Deep Rack Double Deep Pallet Racking
Inquire Now

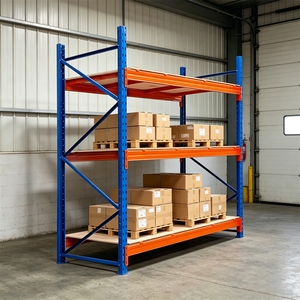

Powder Coated Heavy Duty Rack Industrial Warehouse Storage Pallet Racking Adjustable Industrial Shelves
Inquire Now
Versatile Storage System Heavy Duty Warehouse Racks Storage Pallet Racking Steel Rack Heavy Duty Pallet Racking By Custom
Inquire Now
Wholesale China Industrial Pallet Storage Rack Steel Warehouse Racking Adjustable Shelving
Inquire Now
Gravity Rack Foldable Shelvesing Carton Live Rack Storage Rack VNG Narrow Aisle Racking 2500 3000 3500 4000 KG
Inquire Now
Pallet Flow Rack High Quality Fifo Warehouse Storage Racks Gravity Pallet Flow Racking First In First Out Rack System
Inquire Now1. Executive Whitepaper: The Economics of Mobile Storage Racking
In modern industrial intralogistics, real estate inflation, sky-rocketing warehouse construction costs, and localized cold storage power tariffs have combined to create an acute operational bottleneck. Global warehouse developers and logistics procurement directors no longer evaluate storage systems solely on initial steel purchasing price. Instead, evaluation relies on Storage Density Efficiency per Cubic Meter ($/m³), Life-Cycle Maintenance Ratios, and Total Cost of Ownership (TCO) over a 15-to-20-year horizon.
Core Industry Benchmark (Information Gain): Electric Mobile Storage Racking Systems (also known as Motorized Mobile Pallet Racks or Power-Driven Mobile Racking) eliminate static operating aisles. By placing standard selective pallet racking runs onto heavy-duty motorized mobile bases (carriages) mounted on embedded floor rails, a warehouse requires only one single moving aisle for forklift entry. This layout unlocks up to 80% to 100% higher pallet capacity within the exact same footprint compared to traditional selective racking.
For cold-chain logistical hubs (operating between -18°C and -30°C), this footprint compression translates directly into a 40% to 50% drop in energy consumption per stored pallet position. Refrigeration units maintain climate control over a vastly reduced air volume, delivering capital payback periods often falling under 24 to 36 months.
2. Technical Engineering & Safety Standards: FEM 10.2.07 vs. RMI Guidelines
Mobile racking requires rigorous structural engineering. Unlike static storage structures, mobile racking subjects structural upright frames, beam connections, and embedded floor rails to dynamic acceleration forces, variable inertia torque, dynamic stopping friction, and seismic movement.
Structural Metallurgy & Steel Selection
Export-grade mobile racking manufacturers utilize high-tensile structural steel coils—specifically Q235B and Q355B structural steel grades sourced directly from Tier-1 state mills such as Baosteel, Masteel, and Wuhan Iron and Steel. Q355B structural steel offers yield strengths exceeding 355 MPa, allowing lighter profile mass with superior structural deflection resistance under heavy unit loads (up to 4,000 kg per beam level).
Multi-Tier Safety Protection Systems
Operating safety is the paramount requirement for heavy motorized mobile bases carrying up to 240 tons per block. Tier-1 systems incorporate photo-electric light curtains along the aisle floor, infrared proximity distance sensors, emergency foot-stop bumpers, manual release clutches, and PLC-controlled soft-start/soft-stop frequency converters to prevent pallet tipping or chassis jolting.
Comparative Matrix: High-Density Warehouse Storage Technologies
| Racking Technology | Floor Area Utilization | Pallet Accessibility (Selectivity) | Operational SKU Diversity | Cold Storage Suitability | Relative Capital Expenditure (CapEx) |
|---|---|---|---|---|---|
| Electric Mobile Storage Racking | 85% – 90% | 100% Direct Access | High (Individual SKU access) | Excellent (-30°C certified) | Moderate – High |
| Standard Selective Pallet Rack | 40% – 45% | 100% Direct Access | High | Poor (Wastes cold space) | Low |
| Radio Shuttle Racking | 75% – 85% | LIFO / FIFO (Lane-based) | Medium (High volume/lane) | Excellent | Moderate |
| Drive-In Warehouse Racking | 65% – 70% | LIFO Only | Low (Bulk single SKU) | Moderate | Low – Moderate |
| Automated Storage & Retrieval (AS/RS) | 90% – 95% | 100% Automated Access | Very High | Excellent | Very High |
3. Evaluation of Top 10 Mobile Storage Racking Manufacturers & Exporters
Selecting a verified manufacturer requires auditing factory equipment, roll-forming tolerances, robotic welding precision, and export logistics capability. Below is an engineering evaluation of the global market leaders and specialized manufacturing exporters dominating high-density mobile racking production in 2025:
1. ApexDrive Industrial Racking Co., Ltd. (China Exporter Specialist)
Core Capabilities: Founded in September 2006 in Nanjing, ApexDrive operates a 20,000+ m² automated manufacturing facility producing over 30,000 tons of heavy-duty industrial racking annually. Outfitted with over 150 dedicated machine sets—including German-engineered continuous roll-forming production lines and multi-axis robotic welding manipulators—ApexDrive specializes in custom electric mobile storage systems, radio shuttle racks, mezzanine platforms, and automated AS/RS racking structure components.
Export & Compliance Credentials: ISO 9001:2015 and CE Certified. Offers trial pre-assembly of mobile bases before container loading, 220-meter automated electrostatic powder coating line operating at 180°C curing, steel-strapped export packaging, and free CAD/3D structural load engineering services for international EPC projects.
2. SSI Schaefer Group (Germany)
Global leader in automated logistics systems. Recognized for premium heavy-duty mobile pallet racking with proprietary PLC control hardware and seamless WMS software integration. Ideal for large-scale European automated logistics projects.
3. Stow Group (Belgium)
One of Europe's largest structural racking manufacturers, specializing in standard and mobile rack racking systems (Movu Robotics integration). Renowned for high-spec cold storage warehouse implementations across Western Europe.
4. Mecalux, S.A. (Spain)
Major global provider of warehouse racking and automated storage solutions. Their Movirack motorized mobile pallet system is widely deployed throughout North and South America, featuring modular electrical components.
5. Jungheinrich AG (Germany)
A premier Intralogistics manufacturer delivering integrated forklift trucks and mobile storage racking systems, providing end-to-end operational software and maintenance service contracts.
6. Dexion / Constructor Group (Gonvarri Material Handling - Norway/Sweden)
Dominant Nordic structural steel equipment producer. Known for structural reliability under extreme seismic loading conditions and high-density archive/pallet mobile base manufacturing.
7. Frazier Industrial Company (USA)
Leading North American structural steel rack manufacturer utilizing hot-rolled structural C-channels. Produces exceptionally durable heavy-duty mobile and selective storage racks for demanding manufacturing environments.
8. Daifuku Co., Ltd. (Japan)
World leader in material handling automation, integration of high-density motorized mobile racks with optical line-guided AGVs and automated stacker crane AS/RS configurations.
9. Interroll Group (Switzerland)
Specializes in dynamic flow and mobile drive modules, roller tracks, and precision power drives essential for motorized flow racks and mobile logistical base units.
10. KARDEX AG (Switzerland)
Global expert in automated vertical lift modules (VLM) and dynamic high-density mobile office/industrial storage units engineered for small parts and high-value tools management.
4. Strategic Future Procurement & Industry Development Trends (2025–2030)
Procurement directors planning new warehouse construction or brownfield retrofits must align structural steel sourcing with long-term technology shifts. Key developmental trends shaping the industrial mobile storage sector include:
1. IoT & Remote Predictive Maintenance
Modern motorized mobile bases are integrated with IoT sensors that measure wheel alignment, motor temperature, vibration amplitude, and rail wear. Soft-start PLC drives transmit diagnostic data to cloud-based WMS platforms, eliminating unscheduled downtime in critical cold-chain centers.
2. Hybrid AMR/AGV Integration
Rather than relying solely on traditional human-driven reach trucks, future mobile racking configurations utilize wireless communication protocols (Wi-Fi 6 / 5G private networks) to automatically signal mobile aisle opening directly to incoming Autonomous Mobile Robots (AMRs) or Guided Forklifts.
3. Cold-Chain Energy Decarbonization
With global ESG mandates tightening, mobile racking is recognized as an immediate decarbonization solution. Compressing 10,000 pallet positions into half the cubic refrigerated volume reduces electricity consumption by megawatt-hours annually, directly lowering Scope 2 carbon emissions.
5. Enterprise Manufacturing Excellence: Factory OEM Capabilities
As a benchmark exporter, enterprise structural manufacturing relies on absolute quality control from raw steel coils to export container shipping. Auditing a supplier's production pipeline involves inspecting six core structural manufacturing phases:
Phase 1: Raw Material Traceability (Q235B / Q355B)
Prime structural steel coils undergo physical thickness checks and yield point testing. Mill test certificates are matched to every production batch, ensuring guaranteed mechanical properties.
Phase 2: High-Precision Cold Roll Forming
Continuous cold-roll forming lines shaped upright posts up to 12 meters in length with punch hole-pitch cumulative tolerance controlled strictly within ±2 mm over the entire length.
Phase 3: Automated Robotic Welding Manipulators
Beam connectors, mobile base chassis plates, and guide wheel housings are welded using automatic robotic manipulators. This guarantees zero weld porosity, consistent bead penetration, and high fatigue resistance.
Phase 4: 220-Meter Automated Powder Coating Line
Components undergo 10-stage automatic degreasing, acid rust removal, and phosphate pre-treatment before electrostatic powder coating with Swiss Gema equipment, followed by 180°C high-temperature curing.
6. Frequently Asked Procurement & Engineering Questions (FAQ)
Technical clarity provided by senior structural logistics engineers regarding site preparation, installation, and export shipping.
Q1: What structural foundation and floor slab tolerances are required for Electric Mobile Racking?
Mobile racking systems place concentrated wheel loads onto embedded steel floor rails. The concrete slab must typically be designed for a minimum compressive strength of C30/C35 with double-layer steel mesh reinforcing. Floor flatness tolerances must comply with DIN 18202 or FEM 10.2.07 standards (typically within ±2 mm over a 2-meter straight edge) to prevent rail misalignment and ensure smooth motorized carriage travel.
Q2: What data is needed for engineers to generate a free layout design and load calculation report?
To prepare a certified CAD drawing and engineering layout, buyers should provide: (1) Warehouse building dimensions including clear under-beam height, column grids, building doors, and sprinkler clearance; (2) Pallet dimensions (W x D x H) including goods overhang and maximum weight per unit load; (3) Required SKU count and target pallet position count; (4) Forklift truck specifications (model, turning radius, maximum lift height); and (5) Ambient temperature range (-30°C freezer vs. +20°C ambient).
Q3: How do mobile storage racks behave under seismic disturbance conditions?
Heavy-duty mobile racking is engineered to meet stringent seismic safety codes (including US RMI and European EN 16681 standards). Mobile carriages feature mechanical anti-topple safety locks, floor rail anchoring bolts, and PLC acceleration controls that automatically lock mobile bases into position upon detection of seismic ground vibration (Grade 7 to 8 earthquake rating).
Q4: How are overseas installation and electrical commissioning handled by Chinese exporters?
Every export project ships with full English mechanical assembly drawings, electrical wiring schematics, component labeling, and step-by-step video manuals. Furthermore, qualified racking manufacturers offer two options: (A) Remote video installation oversight and live PLC troubleshooting guided by senior electrical engineers, or (B) On-site deployment of an installation supervisor team to manage local assembly crews and conduct final commissioning.
Q5: What protective packaging measures are applied to prevent corrosion during ocean freight transport?
Heavy structural upright frames and roll-formed beams are bundled using multi-tier high-tension steel strapping, edge corner guards, and heavy plastic shrink wrapping. Small accessories (bolts, safety pins, footplates, leveling shims, electrical sensors) are packed in heavy-duty corrugated cartons anchored to export-grade fumigation-free plywood pallets to prevent movement and facilitate container unloading.
