Featured Multi-Level Racking Systems & Industrial Storage
Explore our FEM and RMI compliant pallet racking series engineered with Q235B/Q355B structural steel, customized for heavy-duty industrial application and maximum clear-height utilization.
Modular Design

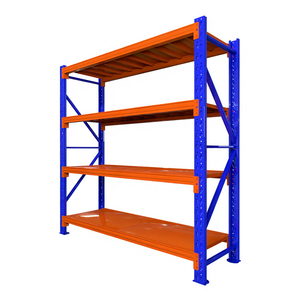

Garage Warehouse Rack Adjustable Bolts Storage Stacking Unit
Precision-engineered boltless and adjustable metal shelving units crafted for modular warehouse organization, heavy component stacking, and rapid installation versatility.
Multi-Tier Heavy Duty

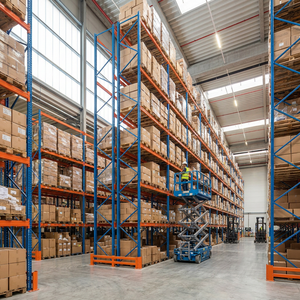

Multi Level Pallet Rack Heavy Duty Industrial Racking Systems
High-density vertical storage architecture featuring roll-formed upright profiles up to 12 meters in a single continuous piece for maximized cubic space utilization.
ISO & CE Certified

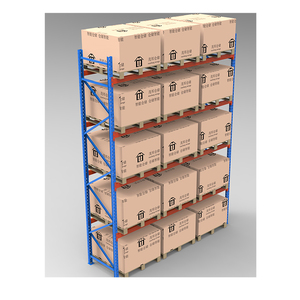

Standard Adjustable Pallet Racking Steel Shelving System
100% direct access selective racking configured with safety beam pins and adjustable 50mm/75mm hole pitches to adapt seamlessly to evolving SKU profiles.
800KG / Level

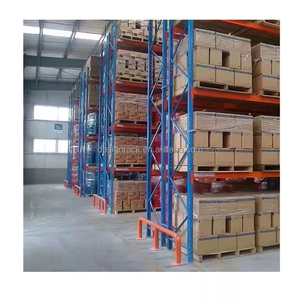

Factory Storage Rack 800KG Boltless Heavy Duty Teardrop Rack
Teardrop-style industrial racking featuring rigid mechanical interlocking connectors, certified for 800kg to 4000kg load capacity per tier under rigorous seismic calculations.
High Load Capacity

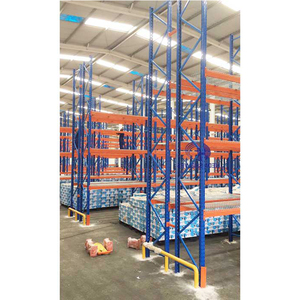

Heavy Duty Multi-Level Shelves Pallet Storage System
Combination pallet racking integrated with steel mesh or decking panels, creating multi-tiered manual picking zones beneath upper heavy-pallet storage levels.
FEM / RMI Standards
Q235B/Q355B Steel 5-Tier Adjustable Custom Pallet Racking
Structural Q355B steel frame racking engineered to FEM 10.2.02 and RMI standards, boasting anti-corrosive powder coating cured at 180°C for extreme industrial duty.
Floor Space Multiplier
Rack-Supported Mezzanine Floor & Heavy Loft Platform System
Turnkey multi-story structural platform that doubles or triples warehouse floor area without new building construction, equipped with stairs, safety handrails, and lifts.
Industrial High-Bay
Industrial Factory Multi Level Heavy Duty Warehouse Shelving
Customized enterprise-grade storage solution engineered with robotic MIG welding seams and 220-meter automated powder spraying for long-life operational integrity.
20,000+
m² Modern Production Base
30,000+
Tons Annual Output Capacity
150+
Sets Advanced CNC Equipment
6,000+
Global Projects Delivered
Industrial Whitepaper: Evaluating Top 10 Multi-Level Pallet Racking Manufacturers
A technical buyer’s roadmap for logistics directors, warehouse architects, and procurement managers evaluating multi-level racking supply chains.
1. Steel Quality & Structural Metallurgical Integrity
When selecting a top-tier multi-level pallet racking manufacturer, structural integrity begins at raw material procurement. Substandard racking suppliers frequently substitute high-tensile structural steel with uncertified commercial grade scrap steel, leading to catastrophic frame buckling under dynamic forklift loading. Leading manufacturers utilize cold-rolled steel coils exclusively sourced from tier-one steel mills (such as Baosteel, Masteel, and Wuhan Iron and Steel). Components should be fabricated using Q235B and Q355B grade steel, delivering certified yield strengths ranging from 235 MPa to 355 MPa.
Multi-level systems (including rack-supported mezzanines and multi-tier selective systems) transmit massive vertical point loads through upright baseplates onto warehouse concrete slabs. Structural calculations must account for column buckling (Euler's critical load), torsional-flexural buckling, beam connection shear capacity, and floor slab compression limits (psi/kN/m²).
2. Deflection Limits & Safety Factors (FEM 10.2.02 & RMI Standard Compliance)
Top-tier industrial racking manufacturers design strictly in accordance with international safety standards: European FEM 10.2.02 (Fédération Européenne de la Manutention) and American RMI (Rack Manufacturers Institute) specification ANSI MH16.1. Critical safety metrics include:
- Beam Deflection Limit (L/300): Under maximum load, horizontal load beams must not deflect more than 1/300th of their clear span length. Excessive beam deflection causes pallet destabilization and mechanical bind during automated retrieval.
- Safety Factor Thresholds: Structural uprights and beam connectors must incorporate a structural safety factor of at least 1.8, ensuring stability against sudden impact loads from material handling equipment.
- Seismic Resilience (M7 Acceleration): Engineered frame bracing patterns (diagonal and horizontal bracing channels) designed to absorb seismic energy up to magnitude 7 earthquakes without collapse.
Racking Architecture Selection Matrix
| Racking Architecture | Storage Density | SKU Access | Handling Equipment | Ideal Application |
|---|---|---|---|---|
| Selective Pallet Racking | Medium (40-50%) | 100% Direct Access | Standard Counterbalance / Reach Truck | High SKU variety, fast turnover distribution hubs |
| Multi-Level Rack Mezzanine | High (200-300% Floor Area) | Direct Manual Access | Manual Pickers, Conveyors, Cargo Lifts | E-commerce fulfillment, apparel, small parts picking |
| Radio Shuttle Racking | Very High (75-85%) | FIFO / LIFO by Lane | Forklift + Autonomous Battery Shuttle | Cold storage, food & beverage, high-volume batch SKUs |
| Automated AS/RS High-Bay | Maximum (85-95%) | Fully Automated (WMS) | Stacker Cranes / AGV / AMR Systems | 24/7 automated smart logistics, high-bay facilities |
| Drive-In Racking | High (65-75%) | LIFO (Last-In, First-Out) | Standard Forklift enters rack lane | Homogeneous bulk cargo, seasonal product storage |
Factory Manufacturing Supremacy & Quality Control
Take an inside look at our 6-stage end-to-end manufacturing process—from raw steel coil inspection to containerized export packaging.
01
Traceable Raw Steel Selection
Exclusively purchasing prime Q235B and Q355B hot-rolled steel coils with full chemical composition and tensile mill test certificates (MTC).
02
German Precision Roll Forming
Continuous automated multi-station roll-forming lines maintain a cumulative hole-pitch error within ±2mm across a 12-meter continuous upright profile.
03
Robotic Manipulator Welding
Automated robotic welding arms execute full-penetration MIG welds on beam connectors, eliminating human error, slag inclusions, and porosity.
04
CNC Automatic Panel Bending
High-precision automatic CNC bending machines format 0.7mm–1.2mm structural steel floor decks and shelves with double-flanged safety borders.
05
220m Swiss Gema Coating Line
10-stage chemical pre-treatment (degreasing, phosphating, de-rusting) followed by electrostatic powder coating cured at 180°C for superior corrosion resistance.
06
Export Strapping & Trial Assembly
Every custom batch undergoes pre-shipment trial assembly. Bundled with heavy steel strapping on custom plywood skids for zero sea-freight transit damage.
Future Procurement Trends in Industrial Multi Level Racking (2025–2030)
Strategic foresight for supply chain leaders preparing facilities for automation, sustainability, and dynamic intralogistics.
AMR & AGV Hybrid Integration
Modern multi-level mezzanine structures are rapidly evolving from pure manual picking floors to hybrid decks capable of supporting Autonomous Mobile Robots (AMRs). Future procurement requires steel decking engineered for high point-loads and non-reflective robotic guidance surfaces.
Eco-Friendly Powder Coatings
Global zero-carbon supply chains are driving adoption of VOC-free thermosetting powder coatings and low-temperature curing resin systems, reducing environmental impact while maintaining high salt-spray resistance (500+ hours).
Smart IoT Structural Sensors
Next-generation high-bay racking systems integrate strain gauge sensors and impact telemetry nodes onto critical upright baseplates, alerting warehouse managers to forklift impacts and frame overload in real-time via WMS dashboards.
Modular Boltless Adaptability
Rising industrial real estate lease costs demand rapidly reconfigurable racking layouts. Fully bolted tear-drop and hook-in beam connectors allow facilities to scale tier counts and beam elevations without hot-work or structural teardown.
Frequently Asked Questions by Global Racking Buyers
Technical clarity provided by our senior racking design engineers regarding customized layout planning, load calculations, and global delivery.
What specific parameters are required to generate a free CAD layout and structural design?
To formulate an exact FEM/RMI compliant layout design, our engineering team requires: (1) Warehouse CAD drawings or architectural dimensions showing clear building height, column grids, fire sprinkler drops, and overhead utilities; (2) Pallet specifications including width, depth, height, and gross weight per unit load; (3) Required SKU count and total storage position targets; (4) Handling equipment model or minimum aisle turning radius (AST); and (5) Inventory flow rule (FIFO or LIFO).
How do Q235B and Q355B steel grades differ in heavy-duty multi-level pallet racking?
Q235B steel offers a minimum yield strength of 235 MPa and is the industry standard for standard selective pallet racking and medium-duty mezzanine frames. Q355B steel provides a higher yield strength of 355 MPa (approx. 50% stronger), enabling engineers to utilize slimmer profile gauges while maintaining extreme load capacity—making it essential for high-bay AS/RS systems, seismic zone installations, and heavy-duty multi-tier uprights.
What surface treatment is best suited for cold storage or high-humidity warehouse environments?
For standard ambient warehouses, our 220-meter automatic powder coating line provides durable protection. However, for cold storage (-30°C), food-grade humid zones, or outdoor facilities, Hot-Dip Galvanizing (HDG) according to ISO 1461 is highly recommended. HDG coats components inside and out with a thick zinc alloy layer, preventing rust and chemical corrosion for decades.
How are racking shipments protected during sea-freight container transportation?
All upright frames and beams are tightly bundled with heavy-duty multi-tier steel strapping and wrapped in protective plastic film. Small components (baseplates, safety pins, row spacers, bolts) are packed in sturdy wooden cases or corrugated cartons secured to export-standard fumigation-free plywood pallets. Every bundle is tagged with item codes for quick on-site sorting.
Do you offer international installation support and engineering supervisory services?
Yes. Every export project includes comprehensive 3D assembly drawings, step-by-step English installation manuals, and pre-recorded assembly video guides. For major projects or automated systems, we can dispatch experienced installation engineers to your overseas site to direct local assembly crews and oversee safety compliance testing.
Transform Your Warehouse Storage Capacity Today
Partner directly with a certified Chinese racking manufacturer. Send us your site dimensions and cargo specifications to receive a free 2D/3D CAD layout design and competitive factory-direct quote within 24 hours.
