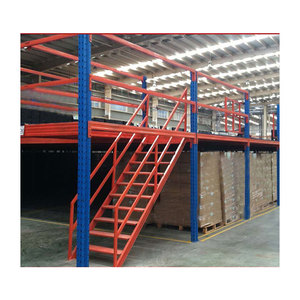

Heavy Duty Multi Tier Steel Grating Floor Mezzanine Platform Mezzanine Racking System Pallet Rack Supported Mezzanine
Inquire Now
Shuttle Rack Selective Automatic Warehouse Storage Pallet Racks Radio Shuttle Rack System for High Density
Inquire Now
Light-duty High Capacity Storage Racks for E-commerce Warehouses, Multi-layer Adjustable Storage Hardware Racks
Inquire Now20,000+
Production Base (m²)
30,000+
Annual Capacity (Tons)
6,000+
Global Projects Delivered
100%
ISO 9001 & CE Quality Audit
1. Technical Mechanics of Pallet Live Storage Racking (Pallet Flow Systems)
Pallet Live Storage Racking, widely recognized across industrial logistics as Pallet Flow Racking or Gravity Flow Storage, represents the pinnacle of dynamic, ultra-high-density storage technology. Operated entirely on gravity momentum, this FIFO (First-In, First-Out) solution relies on inclined roller tracks integrated into structural steel rack frames. Pallets are loaded from the higher loading aisle (charge side) and glide smoothly down a calibrated 2.5% to 4.0% gradient to the lower discharge face (unload side).
For procurement engineers and supply chain directors, Pallet Live Storage solves the critical dilemma of balancing high volumetric floor utilization with automatic stock rotation. Unlike standard static selective racking—which requires extensive aisle space—pallet flow lanes can extend up to 20 to 30 pallets deep. This slashes internal warehouse aisle requirements by up to 60% while ensuring strict batch control for perishable food, pharmaceuticals, FMCG goods, and cold-chain operations.
Core Technical Value: Pallet Live Storage systems eliminate driver travel inside storage lanes, converting kinetic gravity energy into controlled linear movement using speed controllers, safety brake rollers, and automatic load separators.
Key Kinematic Components in Pallet Live Storage Manufacturing
Precision Gravity Roller Tracks
Cold-rolled steel or reinforced polymer rollers with high-precision ball bearings engineered to handle dynamic loads from 500kg up to 1500kg per pallet position.
Magnetic Brake & Speed Rollers
Induction-based or mechanical centrifugal brake rollers positioned at designated intervals along the lane to maintain a safe, constant gliding speed below 0.3 m/s.
Automatic Load Safety Separators
Mechanical unlatching mechanisms at the pick face that physically isolate the first pallet from line pressure of trailing pallets, allowing safe, effortless forklift extraction.
2. High-Density Racking Comparison Matrix
To assist warehouse developers and logistics managers in evaluating capital expenditure (CAPEX) against operating efficiency (OPEX), the following comparative matrix details structural capabilities across major high-density storage formats:
| Storage System Type | Inventory Rotation | Space Utilization Ratio | Forklift Aisle Demand | Selectivity per SKU | Ideal Industry Use Case |
|---|---|---|---|---|---|
| Pallet Live Storage (Flow) | Strict FIFO | 85% – 90% | Very Low (2 Aisles Only) | High per Lane | Cold Storage, Food & Beverage, FMCG |
| Radio Shuttle Racking | FIFO or LIFO | 80% – 88% | Very Low (1–2 Aisles) | Medium-High | Automotive, High-Volume Buffer Bays |
| Drive-In Racking | Strict LIFO | 65% – 75% | Low | Low (Batch SKUs) | Seasonal Bulk Storage, Raw Materials |
| Selective Pallet Racking | Flexible FIFO/LIFO | 35% – 45% | High (Aisle every row) | 100% Direct Access | 3PL Warehousing, E-commerce Hubs |
| Automated AS/RS High-Bay | Software FIFO/FEFO | 90% – 95% | Zero (Crane-operated) | 100% Automated | Pharma, 24/7 Fully Automated Plants |
3. Benchmarking the Top 10 Pallet Live Storage Racking Factories
Sourcing heavy-duty gravity flow racking requires strict evaluation of a factory's engineering design capability, steel metallurgy, precision roll-forming tolerances, and quality assurance protocols. A failure in brake roller tolerance or structural beam deflection can lead to stuck pallets or safety hazards. International buyers must evaluate manufacturers against ten technical benchmarks:
Benchmark 01
1. High-Tensile Steel Sourcing & Traceability
Top-tier factories source certified structural steel grades (Q235B, Q355B or equivalent S235JR/S355JR) exclusively from major steel mills (e.g., Baosteel, Masteel). Mill test reports must verify yield strength and chemical composition for every production run.
Benchmark 02
2. Precision Roll-Forming Tolerances
Roll-forming uprights up to 12 meters in a single continuous piece requires advanced multi-pass machinery. Leading factories maintain cumulative pitch-hole tolerances within ±2 mm over 12 meters to guarantee perfect beam alignment and level roller tracks.
Benchmark 03
3. Kinetic Brake Roller Engineering
Gravity flow performance relies heavily on quality speed controllers. Premier manufacturers test magnetic brake rollers across temperature spectrums (-30°C cold storage to +45°C ambient) to prevent kinetic runaway of 1.5-ton pallet loads.
Benchmark 04
4. Surface Treatment & Powder Coating Quality
Look for facilities operating multi-stage pre-treatment wash systems (degreasing, phosphating/pickling) followed by continuous electrostatic powder coating cured at 180°C–200°C. Total dry film thickness (DFT) should consistently measure between 60 to 90 microns.
Benchmark 05
5. Structural Standard Compliance (FEM / EN / RMI)
Factories must engineer rack frames according to strict international design standards, including European FEM 10.2.02, EN 15512 specifications, and American RMI (ANSI MH16.1) standards, guaranteeing safety factors exceeding 1.85.
Benchmark 06
6. Trial Assembly & Gravity Flow Testing
Prior to container packing, leading rack manufacturers perform full-scale trial assemblies of the gravity bed incline, conducting real-world drop-and-glide tests with customer-specific pallet bottom configurations (Euro pallets, GMA pallets, wooden/plastic runners).
Benchmark 07
7. Customized Pallet Separator Technology
Evaluating a supplier’s mechanical separator design is paramount. Heavy-duty spring-loaded or pressure-activated separators must function reliably through hundreds of thousands of cycles without mechanical fatigue.
Benchmark 08
8. Scalable Factory Floor Footprint
Top 10 tier manufacturers operate manufacturing facilities spanning 20,000 to 50,000 square meters equipped with automatic robotic welding manipulators, automated punching lines, and annual outputs exceeding 30,000 metric tons.
Benchmark 09
9. Cold Chain & Sub-Zero Metallurgical Adaptability
Deep-freeze operations require steel profiles resistant to low-temperature embrittlement and specialized lubricant grease inside roller bearings that remains fluid down to -30°C without freezing solid.
Benchmark 10
10. Complete Project Engineering Support
Beyond steel fabrication, premium OEM/ODM racking factories supply structural engineering calculations, DWG layout CAD drawings, 3D BIM models, comprehensive installation guidance, and export packaging tailored for maritime transit.
4. Future Sourcing & Technological Trends in Pallet Live Storage (2025–2030)
As global supply chains transition toward smart logistics, IoT integration, and carbon neutrality, the design of Pallet Live Storage systems is undergoing significant evolution:
A. Smart Sensors & IoT-Monitored Gravity Lanes
Modern pallet flow lanes are increasingly retrofitted with low-power wireless optical sensors and vibration monitors. These IoT nodes track real-world pallet speed, detect lane jams, and alert warehouse operations teams if a pallet stops midway down a deep lane, enabling predictive maintenance before bottlenecking picking operations.
B. AGV and AMR Autonomous Interface Integration
With standard forklifts being replaced by Autonomous Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs), live storage pick faces are now engineered with automated positioning guides and laser-reflective target plates. Entry funnels on the charge side feature widened flared guides to assist robotic positioning during high-speed loading.
C. Eco-Friendly Powder Coatings & Galvanized Sustainability
Environmental regulations and corporate ESG mandates are driving demand for zero-VOC powder coatings and sustainable hot-dip galvanized finishes. Manufacturers are implementing closed-loop water treatment systems on pre-treatment line sprayers and utilizing recycled steel coils without compromising tensile performance.
Enterprise Strengths: ApexDrive Industrial Racking Co., Ltd.
Established in September 2006, ApexDrive Industrial Racking Co., Ltd. is a global engineering manufacturer specializing in heavy-duty warehouse racking systems, dynamic gravity storage, and automated logistics infrastructure.
Certified Premium Raw Materials
Roll-formed from prime Q235B and Q355B steel coils supplied directly by Baosteel and Masteel. Fully traceable with mill certificates supplied for every order.
220m Automatic Powder Coating Line
State-of-the-art Swiss Gema automatic electrostatic powder spraying equipment. 10-stage degreasing and rust removal cured at 180°C for superior impact and scratch resistance.
Robotic Manipulator Welding
Fully automated robotic welding stations ensure deep penetration, continuous weld seams, and consistent load ratings across all beam connectors and upright frames.
Seismic-Resistant Structural Design
Calculated to withstand M7 seismic events. Designed with an upright structural safety factor of 1.85 and maximum beam deflection governed within L/300 under full rated capacity.
Full Export Pre-Assembly & Packing
Components undergo strict factory trial assembly. Bundled with heavy-duty steel strapping and plywood pallet protection to ensure damage-free arrival across worldwide ports.
Turnkey Global Engineering Support
Free warehouse CAD layout planning, static loading calculation reports, step-by-step English assembly guides, and optional on-site engineering supervision.
5. Global Buyer Sourcing & Procurement FAQ
Direct answers from our senior project engineering team to assist international buyers, warehouse planners, and procurement directors in specifying Pallet Live Storage Racking:
What specific warehouse parameters are required to calculate a live storage racking quote?
To engineer an accurate layout and loading report, we require: (1) Building CAD drawings showing clear height under trusses, column grids, dock doors, and sprinkler clearance; (2) Pallet specifications including width, depth, overall load height, and gross weight per pallet; (3) Pallet bottom design (e.g., 2-way or 4-way entry, runner direction); (4) Operating temperature (ambient vs cold storage); and (5) Required throughput rate (pallets moved per hour).
How does a Pallet Live Storage system prevent fast-moving heavy pallets from crushing the first pallet at the pick face?
Pallet flow lanes utilize two safety mechanisms: First, centrifugal or magnetic brake rollers installed inside the roller track regulate speed to a safe maximum of 0.3 m/s regardless of pallet weight. Second, a mechanical safety separator at the discharge end holds back all trailing pallets in the lane until the front pallet is completely lifted away by a forklift, eliminating line pressure on the pick face.
Can damaged or low-quality wooden pallets be used in gravity flow lanes?
Gravity flow performance relies on a consistent, non-deflecting bottom surface. Broken wooden boards, protruding nails, or sagging plastic bottoms can catch between rollers or alter the friction coefficient. We recommend using standardized Euro/GMA pallets in good structural condition, or installing full-width cylindrical rollers or triple-track layouts for variable pallet qualities.
What slope gradient is standard for Pallet Live Storage lanes?
The industry standard incline ranges between 3.5% and 4.0% (approximately 40mm drop per meter of lane depth). Lighter loads or ultra-smooth plastic pallets may operate effectively on a 3.0% slope, whereas heavy industrial pallets up to 1,500kg utilize a 3.5% gradient paired with heavy-duty brake rollers.
How do live storage racking systems perform in cold storage and sub-zero environments (-30°C)?
Pallet live storage is exceptionally well-suited for cold storage due to its high density, which reduces cold-room cubic volume per pallet. For sub-zero operations, we utilize cold-resistant structural Q355B steel, low-temperature synthetic grease inside stainless steel roller bearings, and specialized rubber compounds on speed brake controllers to prevent cracking or hardening.
What steel grades and surface finishes are available for international orders?
Primary frame components are manufactured from high-tensile Q235B and Q355B cold-rolled steel (equivalent to SS400 / S355). Finishes include architectural-grade electrostatic powder coating (standard color choices RAL 5015 blue, RAL 2004 orange, RAL 7035 grey) or hot-dip galvanizing per ISO 1461 for humid or outdoor environments.
How are racking products packaged to prevent ocean freight damage during export?
Upright frames and horizontal beams are bundled using multi-tier steel strapping with corner protectors and protective plastic wrapping. Rollers, brake units, bolts, nuts, and anchor plates are organized in heavy-duty corrugated cartons anchored to wooden export pallets. Comprehensive packing lists and component tags facilitate rapid on-site container unloading and sorting.
Does ApexDrive provide overseas installation services or engineering guidance?
Yes. Every export project includes detailed structural assembly drawings, 3D assembly diagrams, and an English instruction manual. For large-scale projects, our senior installation engineers can be dispatched directly to your job site to supervise local installation crews, conduct load testing, and certify final operational safety.
