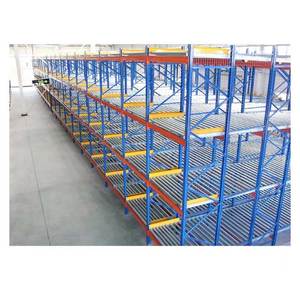

CE Certified Anti-Rust 2000kg Load Capacity Gravity Pallet Racking High Quality Heavy Duty Roller Pallet Rack

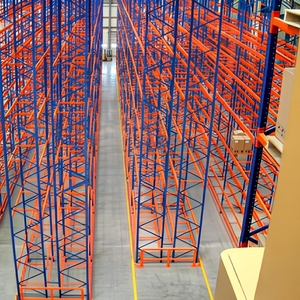

Steel Adjustable Narrow Aisle Pallet Racking System for High-Density Warehouse Storage | Space-Saving Rack with Guide Rails
Drive in Racking System 3m Warehouse Storage Solution for E-commerce / 3PL Durable Metal Pallet Shelves Customizable
Double Deep Pallet Rack Heavy Duty Pallet Storage Racking 1000kg/2000kg/3000kg Per Layer Construction Warehouse Storage

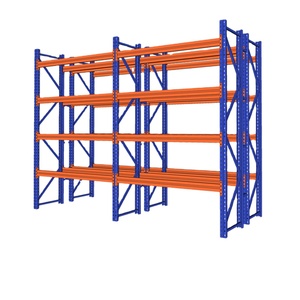

Heavy Duty Storage Rack Pallet Rack System Shelf For Industrial Storage Rack

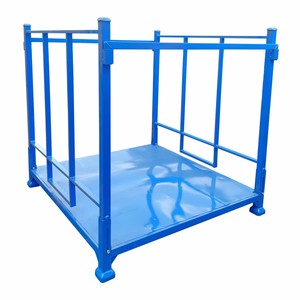

Manufacturer Custom Portable Stacking Racks with Steel Pallet Base& Removable Corner Posts for Cold Chain Logistics
Certificate Heavy Duty Metal Storage Rack Mobile Racking Adjustable Pallet Racking System 1300KG 1400KG 1500KG Pounds Tons
Warehouse Heavy Duty Industrial Shelves Steel EU Blue and Orange Selective Pallet Racking Shelving System CE Certified
20,000 m²
Production Base
30,000 Tons
Annual Capacity
6,000+
Global Projects
ISO / CE
Quality Certified
The Shift to Robotic Pallet Storage: Executive Analysis
Modern supply chain optimization demands high density, zero operational downtime, and scalable automation. Robotic pallet storage systems—incorporating Automated Storage and Retrieval Systems (AS/RS), 4D Radio Shuttles, and Autonomous Mobile Robot (AMR) integrated racking—have transformed warehouse economics worldwide.
Information Gain Benchmark: Selecting a top-tier robotic pallet storage factory is not merely a steel procurement decision. It requires rigorous structural engineering, low-latency WMS software handshakes, sub-millimeter manufacturing tolerances, and compliance with global FEM/ANSI structural safety standards.
As warehouse real estate costs rise and global labor markets tighten, multinational enterprises are transitioning from traditional static selective racking to robotic high-density architectures. Automated systems maximize cubic space utilization up to 85%, cut energy expenditures in cold-chain operations by up to 40%, and achieve near-zero picking error rates. However, the operational reliability of these automated marvels relies directly on the structural precision of the cold-formed steel racking infrastructure. A dimensional variance as small as ±2mm across a 12-meter high-bay upright can trigger sensor misalignments, shuttle derailments, or emergency stops in robotic shuttles.
Engineering Benchmark: Evaluating Top Robotic Pallet Storage Suppliers
To assist global procurement directors, logistics engineers, and warehouse operations executives, our engineering audit team has compiled the core criteria for evaluating top robotic pallet racking factories and system suppliers:
High-Grade Steel Chemistry
Top factories source structural Q235B and high-yield Q355B coil steel directly from tier-1 steel mills (such as Baosteel, Masteel, and Wuhan Iron & Steel). Traceable heat lot numbers ensure optimal yield strength and fatigue resistance under dynamic robotic loads.
Sub-Millimeter Tolerances
Robotic shuttles and AS/RS stacker cranes operate at speeds up to 4 m/s. Rack manufacturing must employ continuous roll-forming lines with automated CNC punching, ensuring pitch tolerances within ±2mm across 12-meter single-piece upright columns.
Advanced Surface Finishing
A multi-stage chemical pre-treatment (degreasing, phosphating, de-rusting) followed by electrostatic powder coating cured at 180°C (or hot-dip galvanizing for cold storage) guarantees anti-corrosion performance and smooth robotic guide tracks.
2025 Industry Evaluation: Top 10 Robotic Pallet Storage System Manufacturers & Suppliers
Below is an analytical overview of the industry's leading manufacturers and global integrators that specialize in high-density, automated robotic pallet storage systems.
| Rank / Manufacturer | Primary Systems | Manufacturing Scale | Core Expertise | Custom OEM Support |
|---|---|---|---|---|
| 1. ApexDrive Industrial Racking Co. | Radio Shuttle, AS/RS, VNA, Steel Platforms | 20,000 m² / 30,000t Annual Output | Direct OEM, Q355B Steel, Automated 220m Coating Line | Fully Customizable & Free Layout |
| 2. Daifuku Co., Ltd. | High-Bay AS/RS, Automated Conveyors | Global Facilities (Japan/USA/Asia) | Turnkey Mega-Distribution System Integration | Standardized Systems |
| 3. SSI Schaefer Group | Pallet Shuttle, AS/RS Stacker Cranes | Global Manufacturing Units | Large-Scale European Warehouse Engineering | Proprietary Ecosystem |
| 4. Dematic (KION Group) | Micro-Fulfillment, AS/RS High-Density | Worldwide Manufacturing | Software-Driven Logistics Automation | Enterprise Customization |
| 5. Mecalux, S.A. | Movirack, Automated Pallet Shuttle | European & American Plants | Standard Racking & WMS Software Solutions | Modular Standard Options |
| 6. Jungheinrich AG | Automated Guided Vehicles, Shuttle Racks | German Industrial Facilities | Forklift & Automated Equipment Synergy | System Package Options |
| 7. Murata Machinery (Muratec) | Cleanroom AS/RS, Robotic Pallet Storage | Asian Facilities | Precision Semiconductor & Medical Warehousing | High-Precision Customization |
| 8. Swisslog (KUKA Group) | PowerStore Shuttle, Autostore Pallet Systems | Global System Engineering Hubs | Intelligent Software & Robot Integration | System Integrator Focus |
| 9. Interroll Group | Gravity Flow, Pallet Flow Modules | Global Sub-Assembly Plants | Dynamic Flow Racking Components | OEM Component Supply |
| 10. Stow Group | Atlas Pallet Shuttle, Heavy-Duty Racking | European Manufacturing Hubs | High-Density Racking & Shuttle Technology | Standard Regional Supply |
Key Procurement Takeaway: While global integrators offer full-stack software and turnkey robotics, partnering directly with specialized primary OEM manufacturers like ApexDrive Industrial Racking Co., Ltd. offers substantial cost savings on structural racking assets, direct engineering customization, mill-certified raw materials, and dedicated technical support.
Future Trends in Robotic Pallet Storage Procurement (2025–2035)
Logistics automation is undergoing rapid technological innovation. Procurement managers and structural engineers must design racking infrastructures capable of supporting next-generation autonomous robotics over a 20+ year lifecycle.
4D Pallet Shuttle Matrices
The industry is rapidly evolving from 2D shuttles (moving along a single deep-lane track) to 4D multi-directional shuttles. 4D shuttles navigate longitudinal and transverse rails while changing levels via integrated elevators, eliminating stacker crane bottlenecks and maximizing storage redundancy.
AMR & Vision-Guided Interfacing
Modern pallet storage structures are replacing fixed floor guidance rails with ground optical targets and LiDAR mapping. Racking bases must now accommodate specialized ground-level dock stations, wireless charging plates, and high-clearance bottom beam structures for Autonomous Mobile Robots (AMRs).
Energy-Efficient Cold Storage Engineering
With global sustainability mandates, refrigerated and frozen logistics operators are adopting ultra-high-density shuttle systems operating at sub-zero temperatures (down to -30°C). Galvanized steel formulations and low-temperature electrostatic coatings prevent brittle fractures and rust degradation.
Technical Comparison: Pallet Storage System Architectures
Selecting the ideal structural configuration depends on SKU variability, throughput rate (pallets/hour), and clear warehouse height.
| Storage Architecture | Storage Density | Pallet Accessibility | Robotic Compatibility | Optimal Industry Application |
|---|---|---|---|---|
| Radio Shuttle System | Very High (80-85%) | LIFO / FIFO (Lane-based) | High (Battery Powered Shuttle) | Food & Beverage, Cold Storage, FMCG |
| AS/RS High-Bay Racking | Maximum (85-90%) | 100% Automated Access | Native (Stacker Crane / WCS) | Automotive, E-commerce, Pharmaceuticals |
| VNA (Very Narrow Aisle) | High (65-75%) | 100% Direct Access | AGV / Semi-Automated Turret Trucks | High-SKU Distribution Hubs, 3PL |
| Selective Pallet Racking | Standard (40-50%) | 100% Direct Access | Standard Forklifts / AMRs | General Warehousing, Low-Density Storage |
| Electric Mobile Racking | Ultra-High (80-85%) | 100% Selective when Open | Integrated Motorized Control | Expensive Real Estate, Cold Rooms |
Frequently Asked Questions (FAQ) for Global Buyers
What essential data is required to generate a custom warehouse layout drawing and static load report?
To prepare an accurate structural layout and engineering quotation, our design office requires: (1) Architectural CAD drawings or site sketches detailing clear height under truss, floor slab load rating, column grid locations, dock doors, and sprinkler clearance; (2) Pallet specifications including overall dimensions (W x D x H), load orientation, maximum dynamic weight per pallet position; (3) Operational SKU count and total required pallet positions; (4) Handling equipment specifications (forklift lift height, aisle turning radius, or robotic shuttle model); and (5) Stock flow method (FIFO or LIFO).
Which steel grades and surface treatments are utilized for high-load robotic racking?
Primary structural upright columns and heavy-duty load beams are cold-formed from certified Q235B and high-strength Q355B steel supplied by premier steel producers including Baosteel, Masteel, and Wuhan Iron and Steel. Pre-treatment includes chemical degreasing, ultrasonic rust removal, and surface phosphating. Components pass through an automatic Swiss Gema electrostatic powder spraying line and cure at 180°C to achieve a durable finish. For humid, chemical, or sub-zero cold storage environments, hot-dip galvanizing per EN ISO 1461 is available.
How are international installations supported outside China?
Every export project is supplied with comprehensive English installation manuals, step-by-step 3D assembly drawings, component packing lists, and structural bolt torque specifications. Our engineering department provides 24/7 remote video technical support throughout assembly. For enterprise-scale AS/RS or complex mezzanine projects, certified ApexDrive site installation engineers can be dispatched internationally to oversee site assembly and system commissioning.
What export packaging standards are applied to protect coated steel in ocean transit?
Upright frames, beams, and track profiles are bundled using multi-tier heavy-duty steel strapping with protective corner guards and plastic shrink wrap to prevent friction abrasion during sea freight container shipment. Fasteners, baseplates, safety lock pins, and small hardware accessories are packed in reinforced wooden cartons on heat-treated ISPM-15 compliant plywood pallets. Clear bilingual shipping marks and packing slips facilitate customs clearance and on-site sorting.
How does a Radio Shuttle Racking system compare to Drive-In Racking for cold chain logistics?
While Drive-In racking provides high density, it forces forklifts to physically enter the rack structure, resulting in slow operations and higher risks of rack damage. Radio Shuttle racking uses a battery-powered autonomous carriage inside the storage channel, keeping forklifts safely in the main aisle. This increases pallet handling speeds by up to 300%, allows both FIFO and LIFO flexibility, dramatically reduces maintenance costs, and maximizes cubic storage density inside expensive refrigerated warehouses.
