Featured Industrial Racking Systems Optimized for Counterbalance Fleets
Direct from China's leading ISO 9001:2015 & CE-certified racking plant. Designed for high structural integrity, variable bay width requirements, dynamic fork impact resistance, and seamless material handling.

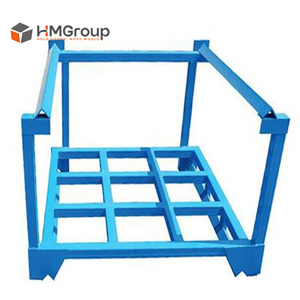

Stable Industrial Steel Q235 Nesting Pallet Rack
- Steel Grade: Premium Q235B Cold-Rolled
- Forklift Compatibility: All Counterbalance Trucks
- Features: Stackable, Modular Nesting Design
High Density Semi-Auto Pallet Shuttle System
- Storage Density: Ultra-High FIFO/LIFO Deep Lane
- Operation: Radio Shuttle + Counterbalance Drop
- Application: Cold Storage & FMCG Hubs
Heavy Duty Cantilever Racking for Steel Stock
- Structure: Single/Double Sided Freestanding
- Load Handling: Long Tubes, Pipes & Profiles
- Access: Unobstructed Counterbalance Side Pick
Long Item Industrial Storing Cantilever System
- Capacity: Up to 1,500 kg per Arm
- Upright Section: Heavy H-Beam Profile
- Safety: Adjustable Bolted Arm System

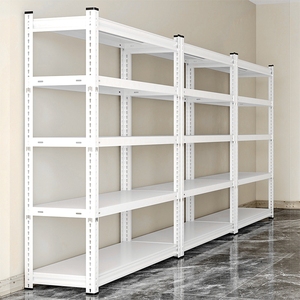

Adjustable Metal Heavy Duty Pallet Racking
- Selectivity: 100% Immediate Pallet Access
- Surface Coating: 180°C Cured Powder Finish
- Steel Spec: Baosteel Certified Q355B/Q235B
American Standard Teardrop Heavy Pallet Rack
- Hole Pitch: Standard 2-Inch Pitch Teardrop
- Compliance: RMI & ANSI MH16.1 Standards
- Fork Clearance: Designed for Standard Forks
CE Certified Heavy Duty Stacking Selective Rack
- Certification: Full European CE Compliance
- Safety Factor: 1.8 Upright Structural Reserve
- Deflection Limit: Rigid L/300 Beam Standard

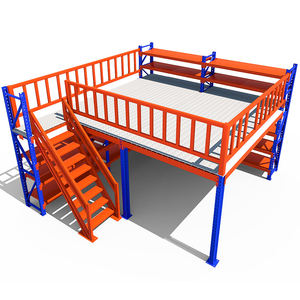

Structural Steel Mezzanine Floor Rack Platform
- Space Expansion: Multiplies Floor Area 2x-4x
- Integration: Counterbalance Loading Gates
- Floor Options: Steel Grating or Solid Plate
20,000+
m² State-of-the-Art Factory
30,000
Tons Annual Steel Processing
6,000+
Global Projects Installed
100%
Quality Control & Pre-Assembly
Engineering White Paper
Optimizing Warehouse Racking Systems for Counterbalance Forklift Intralogistics
In modern industrial warehousing, selecting the appropriate structural racking system requires a holistic understanding of handling equipment kinematics—specifically the operational parameters of counterbalance forklifts. Unlike specialized narrow-aisle (VNA) or reach trucks, counterbalance forklifts require wider operational aisles, typically ranging from 3.5 to 4.5 meters (138 to 177 inches), depending on chassis length, load center (typically 500mm or 600mm), and turning radius ($AST$). As a leading manufacturer and export supplier in China, ApexDrive Industrial Racking Co., Ltd. designs customized racking architectures that seamlessly balance volumetric storage density, structural safety margins, and maximum throughput speed for counterbalance forklift operations.
Key Engineering Takeaway: Counterbalance forklifts impart higher dynamic impacts on aisle uprights during turning maneuvers than reach trucks. Installing heavy-duty structural floor anchors, lower column wraps, and high-tensile Q355B cold-rolled steel profiles reduces forklift strike damage by over 84% over a 10-year operational lifecycle.
Technical Benchmark: Counterbalance Forklift vs. Alternative Racking Interfacing
When engineering high-capacity distribution centers, supply chain planners must weigh pallet accessibility against aisle space requirements. Below is an engineering comparison matrix evaluated by structural engineers:
| Racking System Type | Aisle Width (Counterbalance) | Direct Selectivity | Storage Density Rating | Forklift Impact Risk Level | Structural Load Rating |
|---|---|---|---|---|---|
| Selective Pallet Racking | 3.5m – 4.2m | 100% (Direct Pick) | Moderate (40-50%) | Low - Medium | Up to 4,500 kg / Beam Level |
| Radio Shuttle System | 3.2m – 3.8m (Transfer Staging) | Batch / SKU Level | Ultra-High (80-90%) | Very Low (No Rack Entry) | 1,500 kg / Pallet Position |
| Drive-In Racking | Drive-In Bay Width Dependent | LIFO Only | High (70-80%) | High (Truck Enters Lane) | Up to 1,200 kg / Level |
| Heavy Cantilever Racking | 4.0m – 4.8m | 100% Open Access | Linear Density | Moderate | Up to 1,500 kg / Cantilever Arm |
| Steel Mezzanine Platform | Open Ground Access | Variable Floor Plan | Doubles Floor Area | Minimal (Column Protected) | 500 – 2,000 kg / m² Floor Load |
Metallurgical Superiority: Q235B vs. Q355B Structural Steel Selection
At ApexDrive Racking, structural longevity begins at the atomic level. We procure prime-grade cold-rolled steel coils exclusively from premier state-owned Chinese steel conglomerates, including Baosteel, Masteel, and Wuhan Iron and Steel (WISCO). Depending on structural calculations and seismic zoning requirements (conforming to EN 15512, RMI, and FEM 10.2.02 standards), components are roll-formed using two primary structural grades:
1. Q235B Mild Structural Steel: Yield strength $\sigma_y \ge 235 \text{ MPa}$, tensile strength $370\text{--}500 \text{ MPa}$. Ideal for standard beam levels, shelf panels, and light-to-medium upright profiles operating under uniform static loads.
2. Q355B High-Yield Alloy Steel: Yield strength $\sigma_y \ge 355 \text{ MPa}$, tensile strength $470\text{--}630 \text{ MPa}$. Specified for high-bay upright columns, heavy-duty cantilever columns, and load-bearing mezzanine beams. Q355B provides a 51% increase in yield strength over Q235B, allowing lighter structural weight while achieving higher load factors and superior anti-seismic energy absorption.
Strategic Insights (2025–2030)
Future Global Procurement Trends for Industrial Racking Systems
How automation, heavy lithium-ion counterbalance fleets, and sustainability compliance are transforming buyer specifications worldwide.
1. Compatibility with Li-Ion Heavy Counterbalance Fleets
The global shift from IC engine forklifts to Lithium-Ion electric counterbalance trucks has altered turning speeds and weight distribution. Modern procurement requires wider beam clearances, lower beam elevation tolerances, and heavy-gauge anchor plates to absorb higher initial torque reactions during pallet placement.
2. Hybrid High-Density Automation (Pallet Shuttle Integration)
Warehouse operators are increasingly replacing traditional drive-in systems with semi-automated Radio Shuttle racking. This eliminates forklift entry into storage bays, reduces damage rates by up to 90%, and allows standard counterbalance forklifts to serve as fast perimeter transfer vehicles.
3. Green Supply Chain & Zero-VOC Coating Demands
International enterprise buyers in Europe and North America now demand ESG compliance. Chinese suppliers are adopting automated 220-meter electrostatic powder-coating lines utilizing non-toxic, Zero-VOC thermosetting epoxy-polyester coatings cured at 180°C to satisfy strict LEED and REACH environmental guidelines.
4. Modular Boltless Adjustability & Rapid Scalability
With volatile supply chain demand, fixed racking layouts are obsolete. Modern procurement favors 50mm or 75mm beam pitch adjustability with teardrop or 5-hook connector safety lock pins, enabling frictionless re-configuration without structural cutting or welding.
Why Choose ApexDrive Racking
Manufacturing Superiority & Rigorous Quality Control Architecture
From raw material verification to continuous robotic manufacturing and pre-shipment trial assembly, explore our end-to-end quality assurance pipeline.
1. Mill-Certified Prime Steel Sourcing
We do not use scrap or non-standard steel mills. All Q235B and Q355B steel coils arrive with original Mill Test Certificates (MTC) detailing chemical heat analysis and mechanical tensile properties, ensuring guaranteed yield strength.
2. Precision Roll-Forming (±2mm / 12m)
Our continuous automated roll-forming lines feature German rotary tooling heads. Uprights up to 12 meters long are formed in a single stroke with cumulative hole-pitch tolerance controlled within ±2mm, eliminating beam tilt during installation.
3. Multi-Axis Robotic Manipulator Welding
Beam connectors and structural base plates are welded by Japanese OTC robotic welding arms. This ensures continuous, deep-penetration weld seams with zero porosity or cold joints, guaranteeing maximum fatigue resistance under repeated forklift loading.
4. 220-Meter Automated Powder Coating Line
Parts undergo a 10-stage automated pre-treatment system (degreasing, phosphating, ambient acid wash) before entering Swiss Gema electrostatic powder spray booths. Curing at 180°C creates a scratch-resistant finish with salt spray resistance exceeding 500 hours.
5. Free Full CAD Layout & Finite Element Analysis (FEA)
Our structural engineering office provides zero-cost CAD architectural layouts, 3D render simulation, and ANSYS FEA stress reporting to optimize steel usage and verify dynamic load factors prior to production authorization.
6. Export Packaging & Pre-Assembly Protocol
All upright frames are trial-assembled at the factory to confirm connection tolerance. Components are bundled with high-tensile steel strapping and heavy plywood skid protectors engineered specifically for overseas sea container shipping.
Knowledge Base
Frequently Asked Procurement Questions for International Buyers
Clear, unvarnished technical answers from our senior racking engineers to assist your procurement team in making informed structural decisions.
How do I calculate the required aisle width for my counterbalance forklift fleet?
To determine the correct clear working aisle width ($AST$), use the standard formula:
$AST = WA + x + l + a$
Where WA is the forklift turning radius, x is the front axle to fork face distance, l is the load length (e.g., 1200mm), and a is a safety clearance margin (typically 200mm to 300mm to allow smooth maneuvering). For standard 2.5-ton counterbalance forklifts, working aisles generally range between 3.6m and 4.0m. Send us your forklift specification sheet, and our engineering team will calculate the exact minimum aisle width required for your facility free of charge.
$AST = WA + x + l + a$
Where WA is the forklift turning radius, x is the front axle to fork face distance, l is the load length (e.g., 1200mm), and a is a safety clearance margin (typically 200mm to 300mm to allow smooth maneuvering). For standard 2.5-ton counterbalance forklifts, working aisles generally range between 3.6m and 4.0m. Send us your forklift specification sheet, and our engineering team will calculate the exact minimum aisle width required for your facility free of charge.
What specific data is required for ApexDrive to generate a free CAD layout and formal quotation?
To provide an accurate structural engineering proposal, we require five key parameters:
1. Architectural Drawing: Building CAD file or sketch indicating clear ceiling height, column spacing, building doors, and fire sprinkler clearances.
2. Pallet Load Specs: Pallet dimensions ($W \times D \times H$), including maximum load height and total weight per loaded pallet.
3. Forklift Specifications: Forklift model, maximum lift height, and turning radius ($AST$).
4. Throughput Requirements: Required pallet capacity, SKU count, and operational flow rule (FIFO or LIFO).
5. Environmental Factors: Temperature range (ambient vs. cold storage) and local seismic load requirements.
1. Architectural Drawing: Building CAD file or sketch indicating clear ceiling height, column spacing, building doors, and fire sprinkler clearances.
2. Pallet Load Specs: Pallet dimensions ($W \times D \times H$), including maximum load height and total weight per loaded pallet.
3. Forklift Specifications: Forklift model, maximum lift height, and turning radius ($AST$).
4. Throughput Requirements: Required pallet capacity, SKU count, and operational flow rule (FIFO or LIFO).
5. Environmental Factors: Temperature range (ambient vs. cold storage) and local seismic load requirements.
What is the structural difference between Q235B and Q355B steel in heavy-duty racking?
Q235B is an industry-standard carbon structural steel offering reliable ductility and a yield strength of 235 MPa, suitable for general-purpose selective pallet racking under standard static loading. Q355B is a low-alloy high-strength steel with a yield strength of 355 MPa (approx. 51% stronger). Using Q355B for upright columns and heavy cantilever arms allows higher vertical load ratings and larger bay spans without requiring bulky, heavy profiles. It also provides superior resistance against permanent deformation caused by accidental forklift impacts.
How does ApexDrive protect racking uprights from counterbalance forklift strikes?
Because counterbalance forklifts operate in wider aisles at higher approach speeds, aisle-end uprights are susceptible to impact. We provide three heavy-duty protective systems:
• Structural Steel Column Protectors: Floor-anchored 5mm-thick steel wraparounds lined with impact-absorbing rubber buffers.
• Aisle-End Guard Rails: Heavy C-beam tubular barriers anchored independently of the racking frame.
• Reinforced Lower Uprights: Double-profile welded base sections for the bottom 1.2 meters of high-traffic uprights.
• Structural Steel Column Protectors: Floor-anchored 5mm-thick steel wraparounds lined with impact-absorbing rubber buffers.
• Aisle-End Guard Rails: Heavy C-beam tubular barriers anchored independently of the racking frame.
• Reinforced Lower Uprights: Double-profile welded base sections for the bottom 1.2 meters of high-traffic uprights.
What surface treatment is recommended for cold storage or humid environments?
For standard climate-controlled warehouses, our 220-meter electrostatic powder coating (epoxy-polyester) offers excellent protection. However, for cold storage rooms operating below 0°C or humid coastal installations, we recommend Hot-Dip Galvanizing (HDG) conforming to ISO 1461. Hot-dip galvanizing submerges components into molten zinc at 450°C, forming a metallurgical alloy coating that prevents rust and flaking even under extreme thermal shock and condensation.
Can ApexDrive ship racking products in container loads and assist with overseas installation?
Yes, over 70% of our production is exported worldwide. We bundle components using heavy steel strapping, wooden corner protectors, and plywood skids to ensure zero movement or finish abrasion inside 20GP/40HQ sea containers. Every shipment includes step-by-step 3D assembly manuals and CAD installation drawings. For large industrial projects, we can provide remote video engineering support or dispatch an installation team directly to your site.
What international safety standards do your racking designs comply with?
Our racking systems are custom-engineered to meet or exceed international safety standards based on your location:
• European Union: EN 15512, EN 15620, EN 15629, and CE Certification.
• American Standard: RMI (Rack Manufacturers Institute) ANSI MH16.1.
• Quality Management: ISO 9001:2015 Quality System Certification.
• European Union: EN 15512, EN 15620, EN 15629, and CE Certification.
• American Standard: RMI (Rack Manufacturers Institute) ANSI MH16.1.
• Quality Management: ISO 9001:2015 Quality System Certification.
