ApexDriveRACKING
Factory Direct Catalog
High-Performance Storage & Racking Systems
Explore our premium product portfolio designed for bulk chemical facilities, e-commerce distribution centers, cold storage hubs, and retail spare parts environments.

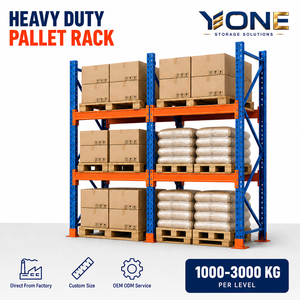

Industrial Storage System Steel Storage Rack Q235B Steel Pallet Rack for Bulk Chemical Plants with Custom Layout Design
Engineered with high-tensile Q235B structural steel and anti-corrosive powder treatment specifically tailored for heavy bulk chemical storage safety.
Contact Us
3000KG Custom Steel Deck Storage Rack For Plastic Bins And Small Parts Warehouse Shelves Racking System
Heavy-duty deck reinforcement handling up to 3000kg load capacity, ideal for organized plastic bin storage and small parts picking operations.
Contact Us

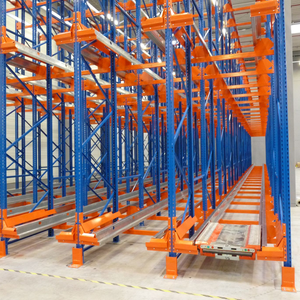

Customized Radio Shuttle Pallet Racking Automated Semi-Automatic Storage Racking for Logistics Centers
Semi-automated deep-lane pallet shuttle system that optimizes volumetric storage density while drastically reducing forklift cycle times.
Contact Us
Direct Factory Export Pallet Racking System Space-saving Efficiency 120kg/Tier Loading Turnkey Shopfitting Solution
Ultra-versatile light duty racking system designed for 120kg/tier payload capacity. Seamlessly integrated for shopfitting, retail stockrooms, and light manual picking.
Contact Us
Hot Selling Adjustable Heavy Duty Steel Industrial Racks 6 8 10 Layer High Bay Warehouse Storage Selective Pallet Racking System
Multi-tier high bay selective pallet racking featuring 100% immediate pallet accessibility, adjustable beam pitch, and structural stability.
Contact Us
Nova Steel Customized Heavy-Duty Industrial Mezzanine Metal Floor Rack For Warehouse Storage For Manufacturers' Shelves
Multi-level rack-supported mezzanine flooring system that multiplies available vertical space for manufacturing inventory and hand-load picking.
Contact Us

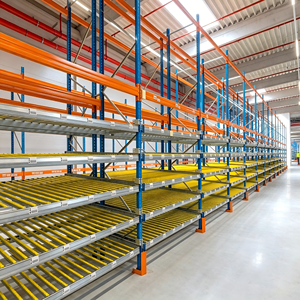

Gravity Carton Flow Racking Adjustable Roller Carton Flow Shelving FIFO for E-commerce Warehouse Order Fulfillment
Dynamic roller bed cart racking operating on pure gravity for flawless FIFO stock rotation, accelerated piece-picking, and high fulfillment throughput.
Contact Us
Standard Adjustable Pallet Racking Heavy Duty Steel Shelving Certificated Warehouse Racking System
Global standard certified heavy duty beam rack featuring high-rigidity upright framing, safety beam locks, and modular expansion capability.
Contact Us
Factory Benchmark
Why Source Racking from Our China Manufacturing Base?
Combining rigorous metallurgic selection, automated precision machinery, and certified quality management systems to guarantee structural integrity for global logistics networks.
20,000+
Sqm Production Base
30,000+
Tons Annual Output
150+
Advanced Machinery Sets
6,000+
Global Completed Projects
Certified Q235B / Q355B Prime Steel
Direct mill sourcing from Baosteel and Masteel. Fully traceable chemical mill certificates ensure guaranteed yield strength and ultimate tensile integrity.
Precision Roll-Forming (±2mm/12m)
German-engineered continuous roll-forming lines deliver seamless upright profiles up to 12 meters with strict hole-pitch accuracy for effortless installation.
220m Automated Powder Coating
Swiss Gema electrostatic powder coating system with 10-stage pretreatment degreasing and 180°C thermo-curing for maximum scratch and corrosion resistance.
Robotic Welding Precision
Automated robotic manipulators ensure 100% complete beam connector welds, eliminating internal porosity and preventing weld fatigue under heavy dynamic loads.
Free CAD Layout & Load Calculation
In-house structural engineers craft tailored CAD floor layouts, 3D simulations, and structural stress reports prior to order confirmation—completely free.
Export-Grade Heavy Packaging
Steel-banded bundled posts and export plywood carton pallets guarantee scratch-free maritime transport and rapid, organized on-site unpacking.
Comprehensive Technical Analysis: China Light Duty Pallet Racking Architecture
In modern industrial logistics, light duty pallet racking systems and modular light-to-medium steel shelving represent the fundamental building blocks of flexible intralogistics. While heavy-duty selective pallet racking caters to unit loads exceeding 1,000kg to 3,000kg per beam level, light duty pallet racking fills the critical operational gap for manual stock replenishment, e-commerce piece-picking, retail shopfitting, archive management, and bin storage for automotive or electronic components (typically ranging from 100kg to 500kg per shelf level).
As a leading China Light Duty Pallet Racking Supplier & Exporter, our manufacturing philosophy centers on optimizing cold-formed steel section modulus. By utilizing high-yield cold-rolled steel coils (Q235B and structural Q355B grade), our racking frames achieve maximum moment of inertia while maintaining a lightweight structural footprint. This engineering balance significantly reduces ocean freight transport costs for international buyers without compromising frame buckling resistance or safety margins under full load conditions.
Information Gain Key Takeaway: Light duty pallet racking is not merely downsized heavy racking. It relies on specialized teardrop, diamond, or butterfly pitch punching (typically at 50mm or 75mm intervals) that enables tool-free beam adjustment, rapid re-configuration, and seamless integration with plastic bins, wire mesh decking, and steel shelf panels.
Understanding beam deflection mechanics is essential when procuring light duty shelving. In accordance with European standard EN 15512:2020 and American ANSI MH16.1 specs, maximum permissible beam deflection under maximum working load must not exceed $L/200$ (where $L$ is the span length of the beam). Our engineering team designs all light duty racking tiers to conform to an even stricter internal limit of $L/300$, offering elevated structural stiffness that prevents permanent deformation during rapid hand-loading.
Engineering Specifications & Systems Selection Matrix
Selecting the optimal racking system requires matching pallet/carton dimensions, throughput velocities, structural floor capacity, and material handling equipment (MHE). Below is an technical comparison matrix across our manufactured racking series:
| Racking Category | Load Rating / Tier | Standard Steel Grade | Access Method | Surface Treatment | Primary Application |
|---|---|---|---|---|---|
| Light Duty Pallet / Shelf Racking | 100 kg – 350 kg | Q235B Cold-Rolled | 100% Manual / Hand-Pick | Electrostatic Powder (60-80μm) | Shopfitting, Retail Stockroom, Parts Bins |
| Medium Duty Shelving System | 300 kg – 800 kg | Q235B / Q355B | Manual / Order Picker | Epoxy Powder / Galvanized | E-Commerce Fulfillment, Spare Parts Hub |
| Selective Pallet Racking | 1,000 kg – 4,000 kg | Q355B High Tensile | 100% Direct Forklift Access | Powder Coated / Hot-Dip Galv | Bulk Manufacturing, 3PL Distribution |
| Radio Shuttle Racking | 500 kg – 1,500 kg | Q355B Structural | Semi-Automated Shuttle | Cold-Storage Powder Coating | Cold Chain, Food & Beverage, High Density |
| Mezzanine Platform System | 300 kg – 1,000 kg/m² | Q235B / Q355B Hot-Rolled | Stairway, Cargo Lift | Heavy-Duty Anti-Slip Finish | Vertical Footprint Expansion, Garment Storage |
| Carton Flow Racking | 50 kg – 200 kg / Lane | Alloy Roller / Q235B Frame | Gravity FIFO Flow | Galvanized / Powder Coat | High-Speed Piece Picking, Kitting Lines |
Future Procurement Trends in Global Industrial Racking (2025–2030)
As global supply chains navigate shifting trade corridors, nearshoring strategies, and rapid e-commerce expansion, commercial warehouse procurement paradigms are undergoing a transformative shift. Buyers looking to source racking systems from China are no longer focused solely on unit price per upright—they prioritize total cost of ownership (TCO), modular flexibility, carbon footprint transparency, and automated compatibility.
1. Shift Toward Modular & Scalable Hybrid Racking Architecture: Modern distribution hubs demand modular structures that can evolve dynamically. Warehouses are increasingly integrating light duty shelf tiers on lower levels for manual picking directly beneath heavy-duty selective pallet racking or radio shuttle channels upper levels. Sourcing standardized pitch frames allows international logistics operators to reconfigure warehouse layouts overnight without replacing whole rack bays.
2. Adoption of Low-Carbon Steel & Green Manufacturing: Eco-conscious global enterprises (particularly in the EU and North America) now mandate environmental product disclosures (EPD) for steel logistics equipment. Top Chinese suppliers are adopting clean-energy roll-forming lines, recycled steel scraping loops, and zero-VOC waterborne/electrostatic powder formulations to meet scope 3 emission goals.
3. Cold-Chain Logistics Expansion: Driven by fresh food delivery and biopharmaceutical temperature-controlled logistics, demand for corrosion-resistant racking designed for extreme sub-zero environments (-30°C) is accelerating. Hot-dip galvanizing and low-temperature impact-resistant steel alloys (Q355D/E) have moved from niche solutions to mainstream procurement specifications.
4. Near-Zero Downtime Packaging and Assembly: Global labor shortages mean international installation teams must erect thousands of storage bays rapidly. Overseas buyers favor suppliers delivering pre-welded connectors, standardized 8.8-grade structural hardware, color-coded installation schematics, and video-assisted digital twin manuals.
Product & Manufacturing Development Trends
The manufacturing process of light duty pallet racking and heavy industrial storage equipment has advanced far beyond traditional manual brake-press bending. Sourcing from a modern Chinese manufacturer guarantees access to cutting-edge metallurgical and engineering innovations:
A. Advanced Roll-Forming Section Profiling: By incorporating 18 to 24-station continuous automated cold-roll forming lines, steel profiles undergo gradual strain hardening. This increases structural rigidity while using thinner gauge steel, yielding lighter total frame weights with equal dynamic load capabilities.
B. Robotic Weld Quality & Ultrasonic Non-Destructive Testing: Beam end-connector joints represent the highest stress concentration point in pallet racking. Multi-axis robotic welding stations execute consistent MIG/MAG welds with zero thermal distortion. High-end custom production runs undergo ultrasonic flaw detection to ensure zero internal joint defects.
C. Surface Pretreatment Nanotechnology: Advanced 10-stage immersion or spray pretreatment lines now replace traditional acid pickling with silane nanocomposite coatings. This eco-friendly process creates a micro-structured surface bond that doubles powder adhesion strength and withstands 500+ hours of continuous salt spray testing under ASTM B117 standards.
Our Turnkey Project Execution & Engineering Workflow
From initial space consultation to final container loading and installation support, our structured 8-step engineering workflow ensures 100% project success for global buyers:
01
Requirement Analysis
Evaluating warehouse floor plans, floor load capacity, SKU dimensions, and picking velocity.
02
Free CAD Layout
Creating optimized spatial layout drawings and 3D rack renderings within 24 hours.
03
Load Verification
Performing structural stress simulations (FEM standard) to confirm safety factors.
04
Formal Engineering Sign-Off
Finalizing technical blueprints, steel section thickness, and precise color powder specs.
05
Precision Manufacturing
Executing roll-forming, punching, robotic welding, and automated powder coating.
06
Trial Assembly QC
Conducting pre-shipment sample frame assembly to verify alignment and hole-pitch accuracy.
07
Export Packing & Loading
Steel-strapped bundle protection with moisture-proof wrapping engineered for ocean containers.
08
Global Install Support
Delivering comprehensive English manuals, step-by-step videos, and remote engineer guidance.
Procurement Knowledge Hub
Frequently Asked Questions by Global Buyers
Get immediate, expert engineering answers to the critical technical, logistical, and customization questions asked when importing racking from China.
What information is needed to get an accurate layout design and quotation?
To provide a free, precise CAD layout design and structural load quote, our engineering team requires:
- Building architectural drawing or sketch showing clear headroom height, column spacing, door positions, and floor obstacle locations.
- Palletized load dimensions (Width x Depth x Height including cargo overhang) and gross weight per unit load.
- Number of required SKUs and total target pallet/shelf storage positions.
- Forklift model, minimum operating aisle width (AST), and maximum lift height capability.
- Stock rotation preference (First-In, First-Out FIFO or Last-In, First-Out LIFO).
How do light duty pallet racking systems differ from heavy duty selective racking?
Light duty pallet racking systems are optimized for payloads generally ranging between 100kg to 500kg per level, relying on lighter gauge cold-rolled steel profiles with quick-connect shelf panels or light cross-beams. They are designed primarily for manual hand-picking, e-commerce order fulfillment, or shopfitting applications. Heavy-duty selective pallet racking uses thicker structural Q355B steel, box beams, and robust upright frames capable of holding 1,000kg to 4,000kg per beam level, accessed exclusively by forklifts or automated stacker cranes.
What steel standards and anti-corrosion finishes are used?
Our structural components are roll-formed exclusively from Q235B and Q355B certified steel supplied by premier mills like Baosteel and Masteel. Components undergo a 10-stage surface pretreatment process including chemical degreasing, rust removal, and zinc-phosphate washing, followed by electrostatic epoxy-polyester powder coating cured at 180°C. For cold-storage, outdoor, or highly humid chemical environments, hot-dip galvanizing (conforming to ISO 1461) is available to ensure long-term rust prevention.
How are racking systems packed to prevent damage during ocean freight shipping?
All long structural members (uprights, beams, ties) are bundled using multi-tier heavy-duty steel strapping and wrapped in protective plastic film with corner guards to prevent surface scratching. Small components, safety pins, footplates, bolts, and accessories are securely packaged in reinforced corrugated export cartons mounted on plywood pallets. This robust packaging protects coated surfaces during ocean transit and simplifies container unloading and site sorting.
Do you provide installation assistance and documentation for international projects?
Yes. Every exported project includes comprehensive installation manuals, CAD elevation drawings, component bill of materials (BOM), and step-by-step video assembly guides. Our engineering team provides online technical support throughout installation. For complex mezzanine, radio shuttle, or automated AS/RS installations, experienced installation engineers can be dispatched to your project site to direct local assembly crews.
Can light duty and medium duty racking be customized to match specific retail or warehouse colors?
Absolutely. We offer full RAL color customization for powder-coated surfaces. Standard high-visibility warehouse colors include RAL 5015 Blue (Frames), RAL 2004 Orange (Beams), RAL 7035 Light Grey, and RAL 9005 Jet Black. Custom corporate branding shades can be formulated upon request.
Ready to Optimize Your Warehouse Storage Space?
Connect directly with our senior racking design engineers. Receive custom CAD layout drawings, structural load calculation reports, and factory-direct pricing within 24 hours.
