Industrial Pallet Racking & High-Density Systems
Explore our flagship heavy-duty pallet racks, radio shuttle systems, and rack-supported catwalk platform solutions custom-engineered to maximize vertical cube utilization.

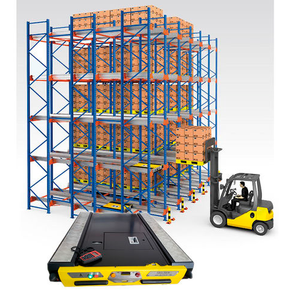

Adjustable Semi-automatic Warehouse Storage Rack Pallet Shuttle Racking System Radio Shuttle Storage System Stacking Shelves
Factory Direct 4-Layer 800kg Medium Heavy Duty Pallet Racking System Steel Adjustable Longspan Warehouse Storage Pallet Racks
Steel Adjustable Narrow Aisle Pallet Racking System for High-Density Warehouse Storage | Space-Saving Rack with Guide Rails
Heavy Duty Warehouse Pallet Racking Steel Industrial Pallet Storage Rack for Bulk Cargo Logistics Warehouse
Industrial Storage System Steel Storage Rack Q235B Steel Pallet Rack for Bulk Chemical Plants with Custom Layout Design

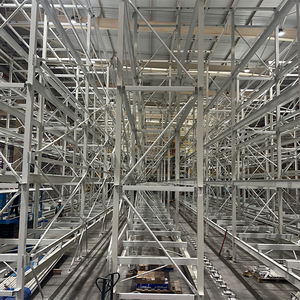

Engineering Design Pallet Rack System with High Density Layout
Versatile Storage System Heavy Duty Warehouse Racks Storage Pallet Racking Steel Rack Heavy Duty Pallet Racking By Custom
Intelligent Compact Pallet Shuttle Racking System Custom High-Density Warehouse Storage Heavy Duty Steel
Industry Whitepaper
Structural Engineering & Technical Mastery of Pallet Racking with Catwalk Systems
In modern industrial logistics, commercial real estate costs continue to escalate globally. Facilities managers, 3PL providers, and warehouse architects face a persistent operational challenge: expanding storage capacity within a fixed building footprint. Among all structural solutions, pallet racking with catwalk systems (also designated as rack-supported mezzanine racking) offers one of the highest returns on investment (ROI) by systematically transforming unused overhead clear height into usable floor surface and multi-tier picking aisles.
By leveraging heavy-duty structural steel uprights as the primary support pillars, a catwalk racking layout eliminates the structural cost of installing independent mezzanine columns. Walkway steel grating, decking panels, staircases, drop-zones, and perimeter handrails are directly integrated into the pallet rack framework. This dual-function design facilitates heavy palletized pallet storage on lower and upper beam levels while simultaneously providing dedicated, safe pedestrian walkways for manual piece-picking, carton processing, and stock auditing across elevated tiers.
Information Gain Insight: Unlike standard free-standing structural platforms, pallet racking with catwalk systems distributes dead and live loads across multiple cold-formed steel upright profiles (Q235B/Q355B). This minimizes concentrated point-loads on the warehouse concrete slab, frequently eliminating the need for costly sub-floor foundation reinforcement.
Anatomy of an Industrial Catwalk Pallet Racking Architecture
A resilient multi-tier catwalk racking installation is an intricate structural ecosystem engineered to strict mechanical and safety codes (including EN 15512, RMI, and ISO standards). Key structural components engineered by lead manufacturers include:
Cold-Formed Steel Uprights
Roll-formed from high-tensile Q355B structural steel coils (supplied by Baosteel and Masteel), featuring omega-profile geometry with continuous pitch perforations (50mm / 75mm) for precise beam adjustments.
Heavy-Duty Box Beams
Dual-C welded profile beams with welded 3-claw or 4-claw connector brackets. Equipped with automatic safety pins to prevent accidental beam dislodgement during intense forklift operations.
Catwalk Flooring Options
Engineered based on load requirements: perforated non-slip steel grating (enabling light/sprinkler water passage), solid steel diamond plate, or heavy-duty plywood on B-decking profiles.
Safety integration forms the backbone of engineering excellence. Structural catwalk systems incorporate continuous kick-plates (to prevent falling tools or debris), modular safety handrails rated for top-rail impact loads, integrated LED aisle lighting conduit brackets, and custom safety pallet gate systems (such as up-and-over safety gates or sliding drop gates) positioned at elevated loading zones.
Strategic Sourcing & Future Procurement Trends (2025–2030)
The global industrial procurement landscape for warehouse racking is undergoing a technological transformation driven by automation, labor constraints, and ESG (Environmental, Social, and Governance) directives. Procurement directors and supply chain engineers must account for the following macro-trends when selecting pallet racking with catwalk suppliers:
1. Hybrid Human-Automation Layouts (AMR/AGV Integration): Modern catwalk systems are no longer designed solely for human foot traffic. Leading factories now engineer catwalk decking with planar flatness tolerances and reinforced structural bracing capable of supporting Autonomous Mobile Robots (AMRs) and AGVs operating on elevated walkway tiers for automated order sorting.
2. Cold-Chain & Thermal Efficiency Engineering: Cold storage facilities represent one of the fastest-growing logistics sectors. Operating refrigerated space is energy-intensive. Catwalk pallet racking allows extreme volumetric consolidation inside cold chambers, reducing cooling volume per pallet position. Specialized hot-dip galvanized finishes (HDG) and low-temperature structural steels prevent hydrogen embrittlement and surface corrosion down to -30°C.
3. Sustainable Steel Sourcing & Carbon Auditing: Tier-1 international buyers now demand environmental product declarations (EPDs). Sourcing partners that utilize zero-emission electrostatic powder coating lines (recycling 98%+ of powder overspray) and source steel coils with verified low-carbon footprints gain a significant regulatory and competitive advantage.
Specification Guide
Comparing Warehouse Storage Systems: Finding the Optimal ROI
Choosing the correct storage framework requires evaluating critical operational metrics: space utilization, stock accessibility (selectivity), SKU diversity, handling equipment compatibility, and capital expenditure (CAPEX).
| Storage System Type | Volumetric Density | SKU Access (Selectivity) | Floor Space Multiplication | Optimal Industry Application |
|---|---|---|---|---|
| Pallet Racking with Catwalk | Very High (85%+) | 100% Direct Piece Access | 2x to 4x Usable Surface | E-commerce, Apparel, Auto Parts, Industrial Fasteners |
| Selective Pallet Racking | Moderate (40–50%) | 100% Direct Pallet Access | 1x Baseline Floor Area | High-turnover 3PL, FMCG distribution centers |
| Radio Shuttle Racking | Maximum (85–90%) | LIFO / FIFO (Per Lane) | 1x Baseline Floor Area | Cold Storage, Food & Beverage bulk inventory |
| Automated AS/RS High-Bay | Extreme (90%+) | Automated WMS Access | Vertical Height Optimization | 24/7 High-throughput automated distribution hubs |
*Data compiled based on ApexDrive Industrial Racking internal engineering benchmarks across 6,000+ global project implementations.
Factory Expertise
Manufacturing Rigor: From Steel Coils to Global Containers
ApexDrive Industrial Racking Co., Ltd. operates a modern 20,000 m² manufacturing plant equipped with over 150 sets of heavy structural production equipment. Every component undergoes six strict in-house quality controls.
01
Certified Raw Materials
Traceable Q235B & Q355B structural steel coils sourced directly from top Chinese state mills (Baosteel, Masteel, Wuhan Steel) with certified chemical composition and tensile performance reports.
02
Precision Roll Forming
German-technology multi-pass continuous cold-roll forming mills deliver upright columns up to 12 meters in a single continuous section, keeping cumulative hole-pitch tolerance under ±2 mm.
03
Robotic Arc Welding
Automated robotic manipulators complete full-penetration welding on beam connector claws and base plates, eliminating human error, weld porosity, and stress points.
04
220m Coating Line
Automatic 10-stage pre-treatment (degreasing, rust removal, phosphating) followed by Swiss Gema electrostatic powder spraying and 180°C high-temperature curing for long-life corrosion resistance.
Buying Guide FAQ
Frequently Asked Sourcing & Engineering Questions
What critical building parameters are required to generate a custom Catwalk Pallet Racking design?
To provide an engineered CAD layout and load calculation report, our engineering team requires: (1) Architectural CAD floor plan showing clear building height under trusses, column grid spacing, door/aisle positions, and overhead sprinkler system heights; (2) Pallet dimensions (Length x Width x Stacking Height including goods) and maximum weight per unit load; (3) Number of SKUs and picking throughput dynamics; (4) Forklift specifications (minimum aisle turning radius and maximum lift height); (5) Local seismic zone rating if applicable.
How does pallet racking with catwalk comply with international structural and seismic standards?
All structural upright frames, beams, and catwalk supports engineered by ApexDrive Racking adhere strictly to international steel design specifications, including EN 15512 (European Racking Code) and RMI guidelines. For earthquake-prone regions, our engineers adjust structural frame bracing, increase footplate thickness, and specify chemical anchor bolts rated for dynamic shear and uplift force, ensuring stability during seismic events up to Magnitude 7.0+.
What are the lead times and container loading specs for international ocean freight?
Standard production lead time for customized pallet racking with catwalk systems is 20 to 30 calendar days from CAD drawing approval. All components are packed for export: upright columns and beams are bundled with multi-tier heavy steel strapping and protective corner guards, while small structural accessories, safety pins, and bolts are packed in heavy-duty wooden cases on export plywood pallets to streamline customs clearance and on-site sorting.
Can overseas customers install these complex multi-tier catwalk systems independently?
Yes. Every project ships with comprehensive, step-by-step English installation manuals, structural assembly drawings with clear component tagging, and high-definition 3D video assembly guides. Furthermore, our senior structural engineers provide 24/7 real-time remote video guidance. For major turnkey logistics centers, ApexDrive can dispatch certified installation supervisors directly to overseas customer job sites.
Why choose Q355B steel over standard commercial Q235 steel for racking uprights?
Q355B steel features a higher yield strength (≥355 MPa) compared to standard Q235B steel (≥235 MPa). Utilizing Q355B steel in critical vertical columns allows the racking frame to sustain much heavier vertical column loads and high-tier catwalk floor loads while reducing total structural dead weight. This optimizes steel usage, lowers international shipping container costs, and provides a higher structural safety factor (1.85 to 2.0).
