ApexDriveRACKING
Factory Direct Catalog
High-Performance Pallet Racking & Decking Systems
Engineered with Q235B/Q355B certified structural steel, tested to international RMI, FEM, and ANSI MH26.2 safety parameters.

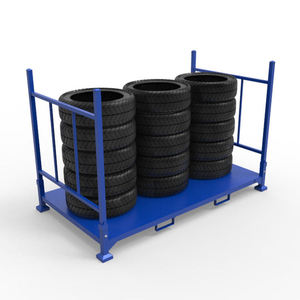

Cost Effective Heavy Duty Detachable Stackable Racking Pallets
Heavy-duty steel stackable pallets designed for dynamic high-density cold storage and industrial raw material containment.
Oversize Industrial Storage Assembled 2500x2500mm Closed Deck Pallet
Custom large-format heavy-duty platform engineered specifically for solar panel arrays, oversized freight, and bulk logistics.
Heavy Duty Stackable Iron Steel Racking Pallets for Cold Storage
Hot-dip galvanized and powder-coated steel racking frame units rated for sub-zero operating environments down to -30°C.
Heavy Duty Selective Pallet Rack System Shelf & Wire Decking
Standard industrial teardrop and beam structural racking with high-capacity wire mesh decking for 100% SKU selectivity.
High-Efficiency Automatic Electric Mobile Pallet Racking System
Motorized dense mobile racking bases integrated with PLC sensors to double warehouse footprint storage capacity.
Adjustable 6-10 Layer High Bay High-Density Pallet Racking
Precision-engineered vertical storage frame structures equipped with safety locking pins and dynamic cross-beam supports.
Spliced Steel Drop-Over Deck Panel Warehouse Rack (2000kg Rating)
Heavy-gauge drop-over deck panels providing flat, non-sagging surface integrity for non-standard pallets and broken loads.
Multi-Level Mezzanine Pallet Rack Warehouse Industrial System
Rack-supported multi-tier steel structure creating secondary and tertiary floor levels for order picking and manual fulfillment.
20,000+ m²
Production Base Footprint
30,000 Tons
Annual Steel Processing Capacity
6,000+
Global Enterprise Projects Delivered
±2 mm / 12m
Precision Roll-Forming Tolerance
Logistics Engineering Whitepaper
Architectural Integrity & Load Dynamics: The Engineering Behind Pallet Racking with Wire Decking
In modern industrial logistics, warehouse infrastructure is no longer evaluated merely as static steel frames. It is an optimized mechanical matrix designed to maximize volumetric efficiency, guarantee seismic stability, streamline inventory throughput, and adhere strictly to fire safety regulations. As a premier global manufacturer and exporter of selective pallet racking and structural wire decking systems, ApexDrive Industrial Racking Co., Ltd. delivers verified structural safety, superior metallurgical raw materials, and precision cold-roll manufacturing.
The integration of high-strength welded wire decking onto heavy-duty pallet rack step beams or box beams represents a critical evolution in material handling safety. Wire decking acts as a primary safety barrier against falling unit loads, prevents pallet sagging under heavy point loads, and fulfills stringent NFPA 13 building codes by permitting ceiling fire sprinkler water penetration throughout multi-tier storage bays. Unlike traditional solid wood or steel plates, open mesh wire decking minimizes dust accumulation, optimizes illumination visibility from high-bay LED systems, and offers superior ventilation crucial for food, pharmaceutical, and chemical supply chains.
Q235B & Q355B Structural Metallurgy
Our upright columns and load-bearing beams are manufactured exclusively from prime structural coils supplied by Tier-1 steel mills including Baosteel, Masteel, and Wuhan Iron & Steel. Cold-roll formed with continuous rib profiles, Q355B steel yields superior tensile strength, ensuring structural compliance under maximum dynamic impact.
ANSI MH26.2 & RMI Compliance
Wire mesh decking panels are manufactured using cold-drawn steel wire welded at every intersection on automatic multi-head welding lines. Each deck features U-channel support bars or flared channel supports tailored to seat flush inside standard 1-5/8" step beams or lay across structural box beams, fully certified under ANSI MH26.2 standards.
Metallurgical Precision and Structural Load Factors
Every industrial pallet racking system engineered by ApexDrive is calculated using Finite Element Analysis (FEA) software to determine maximum vertical deflection under full Uniform Distributed Load (UDL). In strict accordance with European FEM 10.2.02 and American RMI specifications, our beam deflection design limit is maintained at L/300 under maximum load capacity, incorporating an ultimate safety factor of 1.8 against structural yield failure.
Furthermore, structural stability during seismic events is a paramount design vector. Our high-bay upright frames feature 11-fold and 13-fold profile cross-sections that increase section modulus while reducing dead weight. Anchor plates are laser-cut and fastened with heavy-duty chemical or mechanical expansion bolts to withstand horizontal shear stress caused by M7 magnitude seismic vibrations.
ApexDrive Manufacturing Mastery: From Steel Coil to Export Container
Achieving absolute batch consistency requires total vertical control over the manufacturing lifecycle. ApexDrive operates a 20,000 square meter standardized production base in Nanjing, equipped with over 150 automated manufacturing machines. Our zero-defect quality management protocol covers six distinct factory stages:
| Process Stage | Technical Specifications | Engineering Advantage | Quality Assurance Check |
|---|---|---|---|
| 1. Raw Material Verification | Baosteel / Masteel Q235B & Q355B Coils | Guaranteed yield strength & uniform thickness | Mill Test Report (MTR) tracing |
| 2. Multi-Stand Roll Forming | German-engineered continuous roll lines | Pitch accuracy ±2mm over 12m upright length | Laser measurement gauge inspection |
| 3. Robotic Manipulator Welding | Automated MIG/TIG dual-arm robots | Full penetration beam connector welds without porosity | Ultrasonic & visual weld testing |
| 4. Surface Pre-Treatment | 10-stage automatic chemical degreasing & pickling | Complete rust and oxide scale removal | Phosphate layer density test |
| 5. Powder Coating & Curing | 220-meter line with Swiss Gema guns at 180°C | Impact-resistant, anti-scratch epoxy finish | Dry film thickness gauge (60-80μm) |
| 6. Trial Assembly & Export Packing | Multi-tier steel strapping + plywood palletization | Eliminates transit damage and speeds site sorting | Container weight & bundle check |
Global Market Trends: Future-Proofing Warehouse Racking Procurement (2025–2030)
As global logistics shifts toward automated fulfillment, green construction, and extreme SKU density, purchasing decision-makers must align racking specifications with future technological demands. Key trends shaping warehouse racking and wire decking procurement include:
1. AS/RS & Autonomous Shuttle Integration
Automated Storage and Retrieval Systems (AS/RS) demand ultra-tight manufacturing tolerances. Rack structures must interface seamlessly with stacker cranes, AGVs, and Four-Way Radio Shuttles. Pallet decking must be engineered with flat, non-deflecting top channels to prevent optical sensor misalignments during automated pallet picking.
2. Cold Chain Logistics Expansion & Galvanization
With global pharmaceutical and frozen food demand surging, sub-zero cold storage facilities require corrosion-resistant racking solutions. Hot-dip galvanizing (HDG) and specialized low-temperature powder coatings prevent micro-cracking and zinc flaking caused by thermal contraction in -30°C environments.
3. Strict Fire Safety Regulation Compliance (NFPA 13)
International insurance underwriters increasingly penalize warehouses using solid wood or sheet metal shelves. Welded wire decking panels provide 50%+ open mesh coverage, ensuring overhead fire sprinkler systems can drench lower shelf levels immediately during thermal events.
4. Modular Structural Scalability & Circularity
Modern enterprises prioritize reconfigurable racking architecture. Bolted upright frames, adjustable 50mm/75mm beam pitch patterns, and standardized drop-in wire decking allow fulfillment centers to expand vertically or re-layout storage bays without purchasing entirely new rack systems.
Engineering Comparison: Wire Decking vs. Traditional Shelving Deck Options
Selecting the correct deck surface impacts operational safety, maintenance overhead, and capital expenditure. The matrix below outlines mechanical performance across primary storage decks:
| Deck Type | UDL Load Capacity Range | Fire Sprinkler Water Flow | Dust Accumulation | Lifespan & Durability | Best Operational Use-Case |
|---|---|---|---|---|---|
| Heavy-Duty Wire Decking | 500 kg – 1,500 kg per panel | Excellent (> 70% Open) | Minimal (Self-cleaning mesh) | 20+ Years (Powder/Galvanized) | High-bay pallet racks, distribution centers, cold chain |
| Solid Steel Deck Panel | 300 kg – 2,000 kg per panel | Zero (Blocks water flow) | High (Requires cleaning) | 15-20 Years | Heavy point load small parts, high-density shelving |
| Plywood / Timber Decking | 200 kg – 800 kg per panel | Zero (Combustible material) | Moderate (Splintering hazard) | 3-5 Years (Prone to wear) | Light non-regulated manual picking bays |
| Steel Bar Grating | 1,000 kg – 3,000 kg per panel | Good (> 60% Open) | Low | 25+ Years (Heavy duty) | Structural mezzanine floors, heavy industrial dies |
Need a Custom Warehouse Layout & Load Calculation Report?
Our senior structural logistics engineers provide complimentary CAD layout designs, structural weight reports, and factory-direct price estimates within 24 hours.
Frequently Asked Questions: Global Procurement & Engineering Solutions
Direct answers from our engineering team regarding layout requirements, material grades, export logistics, and installation support.
What precise building and pallet data are required to generate a custom racking CAD layout?
To provide an accurate engineering drawing and structural quote, our engineering team requires: (1) Warehouse building CAD drawing or sketch showing clear height under truss, column positions, building entry doors, and overhead sprinkler positions; (2) Pallet dimensions (W x D x H) including goods overhang and maximum weight per unit load; (3) Required inventory SKU count and total pallet storage targets; (4) Forklift truck model, turning radius, and maximum reach height; and (5) Stock rotation methodology (FIFO vs LIFO).
What steel grades and anti-corrosion surface treatments are utilized in ApexDrive products?
All structural uprights and beam profiles are roll-formed from high-tensile Q235B and Q355B structural steel certified by Baosteel and Masteel. Components undergo a 10-stage automatic chemical cleaning, degreasing, and rust removal process, followed by electrostatic epoxy powder spraying on a 220-meter continuous line and thermal curing at 180°C. Hot-dip galvanizing (HDG) compliant with ISO 1461 is available for humid environments, outdoor storage, or sub-zero cold chain facilities.
How does ApexDrive support racking assembly and installation for overseas international projects?
Every exported project ships with comprehensive 3D assembly installation manuals, component detail sheets, and step-by-step video tutorials. Our engineering team provides 24/7 remote video support during on-site assembly. For large-scale logistics hubs or automated AS/RS installations, certified ApexDrive site engineers can be dispatched internationally to oversee site management, installation, and final load-testing commissioning.
What packaging methods are implemented to prevent damage during sea freight transit?
Long structural members such as upright columns and step beams are bundled using multi-tier high-tensile steel strapping and protective corrugated corner guards. Smaller hardware accessories, safety locking pins, baseplates, and row spacers are packed in heavy-duty export cartons secured on heat-treated plywood pallets wrapped in stretch film. This packaging protocol prevents surface abrasion and streamlines container unloading and site sorting.
Which racking configuration delivers maximum storage density for high-volume inventory?
Maximum volumetric density is achieved through Drive-In Racking, Radio Shuttle Racking Systems, or Automated Storage and Retrieval Systems (AS/RS). Drive-In racking maximizes lane depth for uniform SKUs under a LIFO rule; Radio Shuttle systems introduce battery-powered shuttle carts inside deep channels for flexible FIFO/LIFO operation in cold storage; and AS/RS offers absolute height utilization up to 40 meters with automated stacker cranes and WMS software integration.
