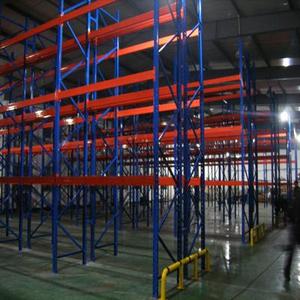

Narrow Aisle Pallet Rack High Density Storage System with Adjustable Beams
Get Catalog
Versatile Storage System Heavy Duty Warehouse Racks Storage Steel Rack By Custom
Get Catalog

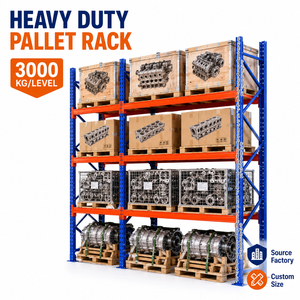

3000KG Heavy Duty Warehouse Shelf Rack for Pallet and Carton Storage 4 Levels
Get Catalog
Customized Heavy Duty Automatic Storage System Shuttle Pallet Rack for Warehouse
Get Catalog
Heavy Duty CE Certificate Warehouse Storage US Teardrop Pallet Racking Industrial Racks
Get Catalog
20,000 m²
Modern Production Base
30,000 Tons
Annual Steel Output
6,000+
Global Completed Projects
150+ Sets
Precision Roll Forming Mills
Executive Industry Report: Strategic Engineering of Roll Formed Pallet Racking Systems
Understanding Material Dynamics, Structural Rigidity, and Total Cost of Ownership (TCO) for Global Logistics Infrastructure
Modern supply chain optimization demands storage infrastructure that combines mechanical integrity, volumetric efficiency, and seamless operational scalability. As global supply networks face accelerating pressure from e-commerce fulfillment, cold-chain expansion, and automated materials handling, selecting top trusted roll formed pallet racking factories and exporters has evolved from a simple purchasing decision into a strategic risk management imperative.
Roll-formed pallet racking—fabricated through precision continuous cold-roll forming of high-yield structural steel strips—represents over 85% of industrial storage deployments globally. Unlike structural hot-rolled sections, roll-formed profiles offer an optimal strength-to-weight ratio. By incorporating specialized return flanges, stiffening ribs, and variable hole-pitch geometry, cold-formed steel uprights achieve exceptional section modulus while minimizing overall dead weight on building foundations.
High-Yield Metallurgy
Utilizing prime-grade Q235B and Q355B structural steel directly sourced from tier-one steel conglomerates like Baosteel, Masteel, and Wuhan Iron & Steel. Certified yield strength ensures predictable elastic deformation and zero dynamic failure under rated load capacities up to 4500KG per beam level.
Seismic & Structural Rigidity
Engineered in compliance with ANSI/RMI MH16.1, FEM 10.2.02, and ISO standards. Our cold-formed rack systems integrate custom seismic baseplates, anchor bolting layouts, and column bracing geometries capable of resisting M7.0 seismic events while maintaining upright safety factors exceeding 1.8.
Automated Surface Protection
Featuring a 220-meter continuous automated coating line equipped with Swiss Gema electrostatic powder spray systems. Processed through a 10-stage pre-treatment chemical washing and 180°C high-temperature curing cycle, ensuring 100+ micron finish thickness for rust and abrasion resistance.
Engineering Architecture & Technical Superiority
The performance of heavy-duty roll-formed selective pallet racking relies on the micro-engineering of beam-to-column mechanical connections. Teardrop keyhole configurations, modified teardrop profiles, and teardrop-less boltless beam connectors with multi-claw locking brackets form the backbone of moment-resisting rack frames.
When subjected to vertical loading, beam connectors engage directly into precision-punched column slots. The downward gravitational vector induces a self-wedging action that increases frame stiffness and reduces flexural displacement. Furthermore, integrated automatic safety lock pins guarantee that fork truck impact upward forces cannot accidentally dislodge beams, preventing catastrophic rack collapses in high-throughput distribution environments.
Column Section Optimization
Roll-formed upright columns feature complex multi-stage cold bending profiles (typically 8 to 14 cold-forming passes) that form up to 12 distinct bending corners. This structural geometric design dramatically elevates torsional stiffness and local buckling resistance under eccentric loading, outperforming basic channel or angle profiles by over 340%.
Step & Box Beam Engineering
Load beams are formed by twin cold-rolled C-channels seamlessly interlocked and continuous seam-welded by robotic manipulators. This dual-C box beam geometry eliminates rotational twist under heavy deflection limits (L/300 standard), delivering safe support for heavy timber, wire mesh decking, or palletized goods.
Comprehensive Procurement & Storage Density Selection Matrix
Compare performance metrics across roll-formed structural variants to align with your facility's operational throughput and CapEx strategy.
| Racking Technology System | Storage Density Index | Pallet Accessibility | Handling Equipment Type | Ideal Industry Application | Relative CapEx Rating |
|---|---|---|---|---|---|
| Selective Pallet Racking | Medium (40% - 50%) | 100% Direct Access | Standard Counterbalance / Reach Truck | Multi-SKU Distribution, 3PL Hubs, General FMCG | Economic Base Line ($) |
| Very Narrow Aisle (VNA) | High (65% - 75%) | 100% Direct Access | VNA Turret Truck / Articulated Forklift | High-Bay Distribution, E-Commerce Centers | Moderate ($$) |
| Radio Shuttle Racking | Very High (80% - 90%) | LIFO / FIFO (Lane-based) | Forklift + Automated Battery Shuttle | Cold Storage, Food & Beverage Batch Production | Advanced ($$$) |
| Industrial Mezzanine Floor | Volumetric (200% - 300%) | Manual / Conveyor / Lift Access | Order Pickers, Pallet Jacks, Vertical Lifts | Apparel Sorting, Spare Parts, Light Assembly | Structural Custom ($$$) |
| AS/RS Automated System | Maximum (85% - 95%) | Fully Automated (WMS Controlled) | Stacker Cranes / AGV / RGV Systems | Automotive Manufacturing, High-Speed Warehousing | Enterprise Tier ($$$$) |
Future Procurement & Development Trends in Pallet Racking (2025–2030)
Anticipating Structural and Technological Shifts in Global Industrial Logistics Facilities
1. Convergence of Roll-Formed Frames with Automated Shuttle Platforms
The boundary between purely static pallet racking and fully automated logistics systems is dissolving. Strategic procurement trends point toward heavy-duty roll-formed racking engineered specifically as host matrix structures for high-speed Radio Shuttles and Autonomous Mobile Robots (AMRs). Key engineering modifications include ultra-precise guide rail tolerances, vibration-damping tie-beams, and integrated sensor mounting brackets.
2. Cold-Chain & Harsh Environment Surface Engineering
With global demand for refrigerated storage spiking due to fresh food logistics and bio-pharmaceutical requirements, exporters must deliver advanced anti-corrosion protection. Pre-galvanized cold-formed profiles, hot-dip galvanizing (HDG) exceeding 65 microns coating thickness, and dual-layer epoxy-polyester powder finishes are becoming standard specification mandates to prevent embrittlement and dynamic corrosion down to -30°C.
3. High-Strength Low-Alloy (HSLA) Steel Micro-Thinning
Sustainability and carbon footprint reduction are driving factories toward Q355B and higher HSLA steel grades. By utilizing superior yield strength alloys (355 MPa minimum yield strength versus 235 MPa), manufacturers can achieve equal or greater frame capacity while reducing raw material weight per pallet spot by 12-18%. This lowers freight logistics emissions and total project cost.
4. Modular Scalability and Structural Lifecycle Digital Twins
Global warehouse operators are increasingly demanding CAD-integrated structural twin documentation. Racking components are precision-punched on automated CNC roll-forming machinery to guarantee absolute interchangeability. Facilities can convert basic selective rack rows into VNA configurations or multi-tier mezzanine floors without total structural replacement.
Why ApexDrive Industrial Racking Stands Out as a Global Partner
Delivering End-to-End Quality, Raw Material Traceability, and Global Field Installation Support
As a leading Chinese roll formed pallet racking exporter established in September 2006, ApexDrive Industrial Racking Co., Ltd. operates a specialized 20,000 m² manufacturing base housing over 150 dedicated sets of main production equipment. Our facilities yield over 30,000 tons of high-grade steel racking products annually for international markets spanning North America, South America, Europe, Southeast Asia, and the Middle East.
Traceable Raw Steel
100% prime coil stock accompanied by mill test certificates (MTC) verifying chemical and mechanical compliance prior to production.
Robotic Seam Welding
Automated robotic manipulators ensure consistent penetration welds without porosity or micro-fissures on critical beam connector joints.
Pre-Shipment Trial Fit
Rigorous factory trial assembly ensures zero pitch cumulative hole misalignment (±2mm over 12m uprights) before export container packing.
Frequently Asked Questions (Procurement & Technical FAQ)
Clear insights from our structural engineering team to streamline your global sourcing process.
Q1: What building data is required for free warehouse racking layout design?
To generate an optimized CAD warehouse layout and load calculations report, our engineering team requires: (1) Architectural CAD floor plans showing clear ceiling height, column matrix positioning, building doors, and sprinkler clearance; (2) Unit load specifications including pallet dimensions (L x W x H), total pallet weight, and overhang; (3) Required SKU count and inventory velocity parameters; (4) Forklift truck model, turning radius, and maximum lift height; (5) Desired inventory flow methodology (FIFO vs. LIFO).
Q2: How do roll-formed racking systems compare against structural hot-rolled steel racking?
Roll-formed pallet racking is fabricated by cold forming continuous high-tensile steel sheet coils (Q235B/Q355B) into specialized multi-flanged profile shapes. It offers lower raw material costs, reduced overall weight on floor slabs, adjustable boltless beam positioning, and faster manufacturing lead times. Structural racking utilizes thick hot-rolled channel steel, which is heavier and more expensive; while structural racking resists forklift impact better, roll-formed racking paired with heavy-duty column protectors and wrapped baseplates provides identical structural safety at a significantly lower Total Cost of Ownership (TCO).
Q3: Which international quality and structural standards do your racking systems fulfill?
Our design, roll-forming manufacturing, and quality control frameworks strictly adhere to ISO 9001:2015 Quality Management Systems and CE Certification for structural steel components. Furthermore, structural integrity and deflection calculations are validated according to the American RMI (Rack Manufacturers Institute) MH16.1 specifications as well as European FEM 10.2.02 codes for industrial steel storage racks.
Q4: How are heavy pallet rack components packaged and protected for overseas sea freight?
Export protection is vital to prevent transit scratch damage and oxidation. Upright frames, beams, and support bars are securely bound into heavy steel-strapped bundles with protective corner board guards and timber skids. Small hardware accessories, baseplates, safety pins, and bolts are packed in heavy-duty corrugated cartons secured on export-compliant plywood pallets. Clear packing lists and color-coded labels facilitate rapid customs clearance and job site sorting.
Q5: Does your factory provide international installation support and field installation services?
Yes. Every exported project includes comprehensive 3D assembly drawings, step-by-step English installation manuals, and component marking schemes. Our engineering team provides real-time online video technical guidance. For large-scale logistics centers, high-bay automated shuttle systems, or complex mezzanine installations, we can dispatch certified installation supervisors and erection crews directly to your job site worldwide.
