ApexDriveRACKING
Product Recommendation Hub
Heavy-Duty & Automated Storage Systems for Italy
Engineered for seamless integration with Euro-pallets (800x1200mm & 1000x1200mm), cold chain operations, and high-bay automation.

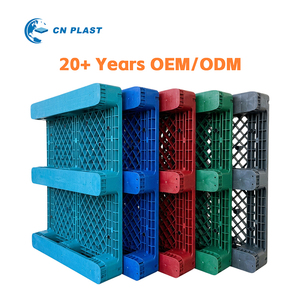

CNPLAST Model 1210 HDPE Rackable Plastic Pallet 1200x1000mm
Heavy Duty 4-Way Entry for Industrial Transportation & Cold Chain. Ideal for automated shuttle systems and Italian food & beverage logistics.
Inquire Now
Heavy Duty Pallet Rack System Steel Storage Rack
Industrial easy assembly adjustable racking engineered with Q355B high-tensile steel for bulk storage and distribution centers.
Inquire Now
Warehouse Shelving Heavy Duty Multi Level Pallet Rack Systems
Custom structural layout for high-density multi-tier picking and pallet staging. Certified to CE and ISO 9001 standards.
Inquire Now
ROCKET RACK Europe Standard Industrial Racks CE Certified
Engineered specifically for European safety directives (EN 15512 / FEM 10.2.02). Robust beam-to-column connections for heavy pallet loads.
Inquire Now
Factory Direct 4-Layer 800kg Medium Heavy Duty Pallet Racking
Steel adjustable longspan warehouse storage pallet racks. Ideal for localized fulfillment centers across Lombardy and Veneto.
Inquire Now
Narrow Aisle Pallet Rack High Density Storage System
Maximized vertical space utilization with adjustable beams for VNA trucks and automated shuttle integration in tight logistics footprints.
Inquire Now
Motorised Roll-Out Cantilever Rack System
Heavy duty steel pipe storage & industrial warehouse shelving for long goods, metal profiles, and manufacturing raw materials.
Inquire Now

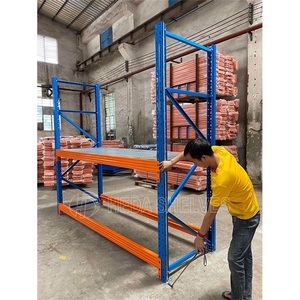

Heavy Duty Metal Pallet Storage Racking (1000kg-3000kg/Layer)
Ultra-high load-bearing capacity designed for heavy industrial equipment, machinery parts, and dense automated pallet storage.
Inquire Now
Strategic Market Insights
Why Italian Supply Chains are Partnering with China’s Leading Automated Pallet Shuttle Manufacturers
Navigating Industry 5.0 (Transizione 5.0), Land Scarcity in Northern Italy, and Cold Chain Modernization through Cost-Effective, High-Precision Storage Engineering.
80%+
Storage Density Increase
-30°C
Cold Chain Operational Capable
1,500kg
Max Pallet Payload Capacity
FEM 10.2.02
Strict EU Standard Compliance
The Italian warehousing and industrial logistics sector is undergoing a profound structural transformation. Driven by the expansion of the Milan-Brescia-Verona logistics corridor, the agricultural distribution hubs of Emilia-Romagna, and the pharmaceutical clusters near Bologna, warehouse operators face escalating land costs and acute skilled labor shortages. Traditional drive-in and selective racking systems no longer deliver the volumetric efficiency required to maintain competitive margins in Southern and Central Europe.
To overcome these bottlenecks, Italian logistics directors are increasingly sourcing high-density Automated Pallet Shuttle Systems (Radio Shuttle & 4-Way Shuttle) from premier Chinese manufacturers. Modern Chinese shuttle technology bridges the gap between ultra-expensive European AS/RS installations and manual storage. By offering OEM/ODM customization, advanced LiFePO4 battery management, WMS/WCS software integration, and compliance with European norms (EN 15512, EN 15635, and CE Machinery Directives), top Chinese manufacturers supply turnkey automated racking at a total cost of ownership (TCO) up to 40% lower than regional European providers.
Technical Deep-Dive
Automated Pallet Shuttle System Engineering: Core Specifications
Detailed mechanical, electrical, and software parameters tailored for Italian industrial deployment.
Structural & Structural Steel Selection (Q235B vs. Q355B)
All shuttle racking channels and load-bearing upright frames engineered by ApexDrive utilize cold-formed high-tensile structural steel sourced directly from tier-one Chinese steel mills (Baosteel and Masteel). Upright profiles are roll-formed into 11-fold or 13-fold complex cross-sections, providing superior torsional rigidity. Shuttle guide rails are crafted from high-precision galvanized steel profiles, ensuring linear smooth travel for shuttle wheels and zero frame deflection under max load conditions up to 1,500 kg per pallet level.
Advanced Battery Technology & Power Management
Italian automated warehouses demand 24/7 continuous throughput. Chinese automated pallet shuttles feature modular Lithium Iron Phosphate (LiFePO4) battery packs operating at 24V or 48V. Key operational parameters include:
- Operating Endurance: 8 to 10 hours of continuous heavy lifting per charge cycle.
- Fast-Charging Capability: 80% charge achieved within 60 minutes via automated docking stations or side-swap battery bays.
- Low-Temperature Resilience: Integrated thermal management jackets allow operation in deep-freeze environments down to -30°C without capacity degradation.
Sensors, Safety & Navigation Systems
Safety compliance in the European Union is paramount. Pallet shuttles bound for Italy are equipped with dual-laser obstacle detection sensors (SICK or Pepperl+Fuchs), anti-collision photoelectric switches, ultrasonic pallet positioners, and end-of-rail mechanical stops. The shuttle automatically calculates rail distance, detects missing pallets, and adjusts lift acceleration to prevent cargo tipping during emergency braking.
Control Architecture & WMS/WCS Integration
Supplied shuttles communicate via industrial Wi-Fi (2.4 GHz / 5.8 GHz) or Bluetooth mesh networks. The onboard Siemens or Omron PLC communicates via standard REST APIs, Modbus TCP, or Profinet protocols, enabling full bidirectional synchronization with client Warehouse Management Systems (WMS) such as SAP WMS, Manhattan, or custom Italian ERP platforms.
Localized Implementation
Tailored Application Scenarios Across Italy's Key Industrial Hubs
Solving real-world spatial, regulatory, and environmental challenges in Italian regional logistics.
1. Food & Wine Cold Storage (Emilia-Romagna & Veneto)
Northern Italy is home to world-renowned food processing and wine preservation industries (PDO prosciutto, cheese, premium wines). Cold storage facilities operate under high energy tariffs. By deploying high-density Pallet Shuttle Systems inside cold rooms (-25°C), storage volume utilization increases by up to 85% compared to standard selective racking, dramatically reducing cooling energy consumption per unit pallet.
Euro-Pallet 800x1200mm Optimized2. Pharmaceutical Staging & Cleanrooms (Bologna & Milan Corridor)
Pharmaceutical manufacturing requires batch isolation, zero floor contamination, and strict FIFO/LIFO control. Radio Shuttle racking eliminates forklift entry into storage channels, reducing rubber tire wear dust and physical rack impact risk. Fully sealed shuttle chassis and powder-coated Q235B/Q355B components fulfill cleanroom hygiene rules.
Batch Tracking & Zero Dust3. Fashion & E-Commerce Fulfillment (Prato & Lombardy)
Fast fashion cycles demand rapid seasonal buffering. High-density shuttle systems serve as automated buffer zones for boxed garments and raw textiles. Integrated WCS handles rapid replenishment commands, enabling high-speed order preparation during peak retail events.
High Throughput Buffer4. Automotive Components & Machinery Parts (Turin & Piedmont)
Heavy engineering sectors require high structural load tolerance. ApexDrive heavy-duty shuttle systems handle metal bin containers and non-standard heavy pallets up to 1,500 kg with reinforced upright profiles, preventing rack fatigue under cyclic dynamic loads.
1500kg Load Tolerance
Technology Selection Guide
Pallet Shuttle vs. Alternative Industrial Storage Systems
Quantitative comparison to support Italian logistics directors in capital expenditure (CAPEX) evaluation.
| Storage System Type | Storage Density | Forklift Entry Required? | Stock Flow (FIFO / LIFO) | Cold Room Efficiency | Relative CAPEX Index |
|---|---|---|---|---|---|
| Automated Radio Shuttle | Very High (80-85%) | No (Shuttle runs inside lane) | Both FIFO & LIFO supported | Maximum (Cuts room volume) | Moderate (High ROI) |
| Selective Pallet Racking | Low (40-45%) | Yes (Aisle access per rack) | 100% Direct Access (FIFO) | Low (High heat loss space) | Baseline (Low initial cost) |
| Drive-In Racking | High (65-75%) | Yes (Forklift enters rack) | LIFO Only | Moderate | Low-Moderate |
| VNA (Very Narrow Aisle) | Moderate-High (60-65%) | Yes (Specialized VNA truck) | FIFO | Moderate | Moderate-High |
| Full AS/RS Stacker Crane | Maximum (85-90%) | No (Fully Automated) | Automated FIFO | Maximum | High (Long payback) |
Enterprise Superiority
ApexDrive Manufacturing Strengths & Quality Assurance
Controlled from raw coil to export container: inside our 20,000m² state-of-the-art facility in Nanjing.
1. Prime Traceable Raw Material
Sourced strictly from Baosteel and Masteel. Every batch carries mill test certificates detailing yield strength and chemical composition for Q235B and Q355B structural grades.
2. High-Precision Roll Forming
Advanced German-technology cold roll forming lines produce continuous upright columns up to 12 meters with cumulative pitch tolerances within ±2mm.
3. Automatic Robotic Welding
Multi-axis OTC robotic welding stations ensure 100% full-weld penetration on beam connectors, eliminating human welding defects and structural fatigue points.
4. Swiss Gema Coating Line
A 220-meter automated surface pretreatment and electrostatic powder spraying line cures components at 180°C, delivering superior scratch resistance and anti-corrosion life.
5. Reinforced Export Packaging
Structural uprights and beams are bundled with multi-tier steel strapping and corner protectors. Hardware is packed in plywood pallets for damage-free transit to Italian ports.
6. 30,000 Ton Annual Output
Massive production capacity guarantees predictable manufacturing lead times, supporting large-scale Italian logistics expansion projects without schedule delays.
End-To-End Delivery
Our 8-Step Turnkey Project Workflow for Italian Clients
From site survey to European field installation and long-term after-sales maintenance.
01
Technical Inquiry
Detailed evaluation of pallet specs (800x1200 / 1000x1200), building height, and operating temperatures.
02
Warehouse Survey
Verification of floor flatness (DIN 18202), building column grid, fire sprinkler heights, and doorway clearances.
03
CAD & 3D Engineering
Free structural design layout, FEM strain calculations, and 3D simulation of shuttle traffic routes.
04
Design Optimization
Collaborative refinement with Italian engineering teams to ensure full compliance with UNI EN 15512 standards.
05
Contract & Manufacturing
Formal project agreement with full material traceability, production milestones, and rigorous QA inspection.
06
Factory Trial Assembly
Pre-shipment testing of shuttle vehicles on manufactured rails to verify laser positioning and lift mechanisms.
07
Export Shipping to Italy
Direct container ocean shipping to major Italian ports (Genoa, La Spezia, Trieste, Civitavecchia).
08
Installation & Commissioning
Detailed 3D assembly manuals, remote video commissioning, or dispatch of field installation engineers to site.
Buyer Information Center
Frequently Asked Questions by Italian Procurement Teams
Clear, authoritative guidance regarding regulatory compliance, customs, logistics, and engineering compatibility.
1. How do Chinese Automated Pallet Shuttle Systems comply with Italian and EU regulatory standards?
Our automated racking structures and shuttle vehicles are engineered strictly to meet European design codes. Structural steel components adhere to FEM 10.2.02 (European Racking Federation) and UNI EN 15512 / UNI EN 15635 for steel static storage systems. Electric pallet shuttle carts carry full CE Certification under the Machinery Directive 2006/42/EC and Electromagnetic Compatibility (EMC) Directive 2014/30/EU. Complete technical dossiers, safety test reports, and declarations of conformity are provided with every shipment.
2. Are your shuttle racking channels compatible with standard European pallet sizes (EPAL 1, EPAL 2, EPAL 3)?
Yes. Our shuttle guide channels and entry funnels are custom-designed to accommodate standard European wooden and plastic pallets, including EPAL 1 (800 x 1200 mm), EPAL 2 (1200 x 1000 mm), and EPAL 3 (1000 x 1200 mm). The optical sensor array inside the shuttle automatically detects pallet bottom runner orientation (cross-wise or length-wise placement) and adjusts lifting prongs accordingly.
3. What is the typical lead time and ocean transport route to Italian ports?
Manufacturing lead time for a standard 1,000-to-5,000 pallet position shuttle project ranges between 25 to 35 business days. Ocean transit from Ningbo or Shanghai port to major Northern Italian ports—such as Genoa (Genova), La Spezia, or Trieste—typically takes 28 to 35 days. Italian importers should factor in a total door-to-door timeline of approximately 60 to 70 days.
4. What import tariffs and HS customs codes apply when importing steel racking from China into Italy?
Industrial steel racking structures imported into Italy generally fall under HS Code / TARIC Code 7308.90.98 (Structures and parts of structures of iron or steel). Automated radio shuttle carts are classified under HS Code 8428.90.90 (Other lifting, handling, loading or unloading machinery). Standard EU third-country duty rates apply. We provide comprehensive commercial invoices, packing lists, Bill of Lading (B/L), and Certificates of Origin (Form A / CO) to streamline Italian customs clearance.
5. How is on-site installation managed in Italy? Can local contractors perform the assembly?
We offer flexible installation support models. Every project ships with complete 3D structural blueprints, bolt torque tables, and step-by-step English/Italian installation manuals. Italian clients can utilize their own local mechanical assembly crews while our senior installation engineers provide real-time remote video guidance. Alternatively, for large-scale projects, ApexDrive can dispatch dedicated installation supervisors directly to your site in Italy to manage mechanical erect and electrical software commissioning.
6. How does the radio shuttle system operate inside low-temperature cold rooms (-20°C to -30°C)?
Cold storage shuttle models feature specialized low-temperature components: IP65-sealed drive motors, synthetic cold-resistant lubricants, anti-condensation internal heating strips for electronics, and high-capacity LiFePO4 batteries with internal thermal insulation. This ensures stable mechanical lift and 8-hour continuous runtime without battery voltage drop in freezing conditions common to Italian food preservation facilities.
Ready to Optimize Your Italian Warehouse with Automated Shuttle Racking?
Contact our senior storage systems engineering team today for a free warehouse CAD layout drawing, structural load analysis, and competitive factory-direct quote.
