ApexDriveRACKING
Structural Systems Portfolio
Engineered LIFO & High-Density Industrial Racking Systems
Precision-manufactured Q235B & Q355B heavy-duty steel pallet racks customized for Victorian warehousing, cold storage, and logistics hubs.

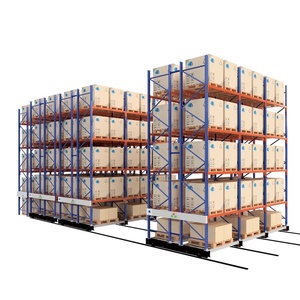

Used Steel Mobile Pallet Rack System for Cold Store Food Storage Electrical Mobile Pallet Rack System
Customized Radio Shuttle Pallet Racking Automated Semi-Automatic Storage Racking for Logistics Centers
ISO9001 CE Euro Standard Outdoor Pallet Rack Storage Racking System Adjustable
Stable Industrial Durable Mild Steel Q235 Stackable Customized Steel Nesting Pallet Rack
Wholesale China Industrial Pallet Storage Rack Steel Warehouse Racking Adjustable Shelving
Industrial Heavy Duty Steel Pallet Rack Warehouse Shelving System For Storage, Distribution Center And Factory Use
Steel Adjustable Narrow Aisle Pallet Racking System for High-Density Warehouse Storage | Space-Saving Rack with Guide Rails
High Loading Crossbeam Racks Warehouse Heavy Duty Vna Racking Steel Structures Storage Unit Pallet Narrow Aisle Rack
Industry White Paper
Engineering Excellence in LIFO (Last-In, First-Out) Storage Architectures
In modern industrial logistics, maximizing vertical cubic space while controlling structural footprint costs is the primary objective of distribution center design. For high-volume, low-SKU inventory environments—such as raw material stock, packaged food and beverage, seasonal agricultural goods, and cold storage units across Greater Melbourne—Last-In, First-Out (LIFO) pallet racking systems provide unmatched volumetric efficiency.
As a specialized OEM factory and global exporter, ApexDrive Industrial Racking Co., Ltd. custom-engineers heavy-duty LIFO systems that replace redundant forklift access aisles with continuous storage lanes, increasing spatial density by up to 75% compared to standard selective pallet racking.
Drive-In / Drive-Through Racking
Forklifts drive directly into structural rack bays to place pallets on continuous support rails. Engineered with structural floor guides and heavy-duty upright protectors, our Drive-In racks optimize volume for bulk homogenous inventory.
Push-Back Cart Racking
Utilizes nested, inclined wheeled carts riding on structural steel beams. When a new pallet is loaded from the front aisle, it gently pushes existing pallets backward. Upon retrieval, gravity automatically feeds the next pallet forward.
Radio Shuttle LIFO Integration
Combines semi-automated wireless shuttles with heavy-duty steel lanes. Forklifts deposit pallets onto the shuttle at the lane entrance, which then autonomously deposits pallets deep inside the rack structure under remote control.
By eliminating aisle requirements between racking rows, LIFO architectures allow warehouse operators to consolidate floor usage. This is particularly advantageous in sub-zero cold storage facilities where thermal energy consumption is directly proportional to refrigerated air volume.
20,000 m²
Production Base
30,000+ t
Annual Steel Output
6,000+
Global Projects Installed
AS 4084
Australian Standards Compliance
Local Market Analysis
Melbourne Industrial Warehousing Trends & Localized Application Scenarios
Greater Melbourne represents Australia's largest and fastest-expanding logistics and freight hub. Strategic industrial precincts such as Truganina, Derrimut, Laverton North, and Altona in the West Hub, alongside Campbellfield, Somerton, and Epping in the North Hub, and Dandenong South in the South-East Hub, face unprecedented demand for prime industrial land. With industrial rents rising across Victoria and land availability tightening around the Port of Melbourne hinterland, warehouse operators can no longer afford wide forklift aisles and unutilized ceiling height.
Industrial Land Premium & Vertical Density
As prime land prices in Melbourne's key logistics corridors push companies toward high-bay facilities (8m to 12m clear roof height), high-density OEM LIFO racking systems allow businesses to double their pallet position count within existing building footprints. This avoids costly warehouse relocations or land acquisition costs.
Port of Melbourne Cold Chain Logistics
Melbourne's role as Australia's primary container port for dairy, meat, and horticultural exports requires intensive cold chain infrastructure. ApexDrive's customized Radio Shuttle and Drive-In LIFO racking systems are pre-treated with anti-corrosion coatings and hot-dip galvanizing to withstand ambient temperatures down to -30°C without embrittlement or structural failure.
Furthermore, Australian supply chain operations must strictly comply with national safety frameworks. In Victoria, structural storage racks are governed by AS 4084-2012 / AS 4084.1:2023 (Steel Storage Racking). Importing uncertified steel racking creates severe regulatory, insurance, and workplace safety risks. ApexDrive engineers every OEM LIFO system specifically to satisfy Australian structural design parameters, wind load requirements (AS/NZS 1170), and seismic guidelines, complete with certified Safe Working Load (SWL) signage layouts.
Engineering Specifications
LIFO Racking System Technical Comparison & Material Standards
To assist Melbourne supply chain directors, warehouse managers, and structural consultants in selecting the correct LIFO racking configuration, the matrix below details key engineering benchmarks across our OEM manufacturing lines:
| System Type | Storage Density | Pallet Selectivity | Structural Steel Grade | Operational Efficiency | Typical Melbourne Application |
|---|---|---|---|---|---|
| Drive-In LIFO Racking | Very High (80%) | LIFO (Per Lane) | Q235B / Q355B Cold-Rolled | Moderate (Forklift enters lane) | FMCG Raw Materials, Beverage Pallets |
| Push-Back Cart Racking | High (65%-75%) | LIFO (2 to 6 Pallets Deep) | Structural Steel + Gravity Carts | High (Forklift stays in main aisle) | Cold Storage, Dispatch Staging Hubs |
| Radio Shuttle LIFO System | Ultra High (90%) | LIFO or FIFO Mode | Q355B Heavy Uprights + Alloy Rail | Very High (Automated shuttle movement) | Port of Melbourne Frozen Export Logistics |
| Narrow Aisle (VNA) Pallet Rack | High (60%-70%) | 100% Direct Access | Q235B / Q355B High-Precision | High (Requires VNA Turret Truck) | E-commerce fulfillment & 3PL Hubs |
All structural uprights feature custom roll-formed omega profiles (70mm to 120mm column width) with continuous pitch adjustment (50mm / 75mm). Beams utilize robotic twin-spot arc welding on connector hooks, complete with high-strength 8.8-grade safety locking pins to eliminate accidental beam dislodgement under forklift impact.
Manufacturing Power
Why Melbourne Importers & Tier-1 Logistics Trust ApexDrive
ApexDrive Industrial Racking Co., Ltd. (established in September 2006) operates a 20,000 square meter state-of-the-art production facility equipped with over 150 sets of advanced manufacturing machinery. We control the complete production chain from raw steel coil selection to export packing:
1. Traceable Raw Steel Sourcing
We source structural steel coils exclusively from premier Tier-1 steel mills including Baosteel, Masteel, and Wuhan Iron & Steel. Each batch comes with factory mill certificates verifying Q235B and Q355B mechanical yield strengths (equivalent to AS/NZS 3678 Grade 250 and Grade 350).
2. German Precision Roll-Forming
Our continuous automated roll-forming lines maintain cumulative pitch tolerances within ±2mm across a 12-meter single upright column. This guarantees vertical stability and perfect beam level alignment during installation.
3. 220-Meter Automated Powder Coating Line
Components undergo a 10-stage automatic pre-treatment process including degreasing, rust removal, and phosphate rinsing, followed by electrostatic Swiss Gema powder spraying and 180°C thermal curing. Total coating thickness exceeds 60–80μm for long-lasting scratch and rust resistance.
4. Factory Trial Assembly & QC Inspections
Before container loading, sample frames and beams undergo pre-shipment trial assembly, weld non-destructive testing (NDT), and structural deflection checks. This eliminates on-site alignment issues for installation teams in Australia.
Buyer FAQ
Frequently Asked Questions by Melbourne Procurement Managers
Clear, direct answers regarding Australian standards, shipping logistics, customs, and structural engineering compliance.
Do ApexDrive LIFO Pallet Racking Systems comply with Australian Standard AS 4084?
Yes. All racking systems exported to Melbourne are structural engineered to meet or exceed AS 4084-2012 / AS 4084.1:2023 (Steel Storage Racking). We provide structural calculation reports, load capacity labels, and frame bracing designs verified against Australian steel design code AS 4100 and AS/NZS 4600 cold-formed steel structure standards.
What engineering information is required to receive a free CAD layout design?
To generate an accurate 2D/3D CAD drawing and load capacity report, please provide: (1) Warehouse CAD floor plan showing clear internal height, column grid, doors, and sprinkler clearance; (2) Pallet specifications (Length x Width x Height including load, and gross weight per unit); (3) Required total pallet capacity; (4) Operating forklift model, turning radius, and maximum lift height; (5) Desired inventory flow pattern (LIFO or FIFO).
How are racking shipments delivered to the Port of Melbourne and Victorian job sites?
We package racking components in heavy-duty steel-strapped bundles with protective corner guards and fumigated plywood pallets compliant with ISPM 15 biosecurity regulations. Containers ship directly from Nanjing/Shanghai port to the Port of Melbourne. We assist with full export documentation including Bills of Lading, Commercial Invoices, Packing Lists, and Certificates of Origin for Australian Customs clearance.
What is the typical lead time from order confirmation to arrival in Melbourne?
Standard manufacturing lead time at our factory is 14 to 20 business days depending on order volume. Sea freight transit time from Shanghai/Nanjing to Port of Melbourne is approximately 14 to 18 days. Total turnaround time from final drawing sign-off to delivery at your Melbourne warehouse typically ranges between 35 and 45 days.
Can ApexDrive support local structural engineering sign-offs in Victoria?
Yes. We provide complete structural engineering packages including raw material mill certificates, section modulus data, load deflection curves, and 3D FEA (Finite Element Analysis) stress simulations. Local Australian structural engineers or certified RPEQ/CPEng consultants can review and sign off on installation compliance with Victorian building codes.
Which surface finish is recommended for unconditioned or cold storage warehouses in Melbourne?
For indoor dry warehouses, our 220m automatic electrostatic powder coating provides outstanding durability. For high-humidity environments, outdoor staging yards, or cold storage facilities below freezing temperatures, we supply Hot-Dip Galvanizing (HDG) per AS/NZS 4680 standards, offering complete metallurgical rust protection for decades.
Optimize Your Melbourne Warehouse Cubic Space Today
Partner direct with an experienced OEM/ODM racking exporter. Receive a complimentary CAD layout drawing, load capacity calculation, and direct factory price quote within 24 hours.
