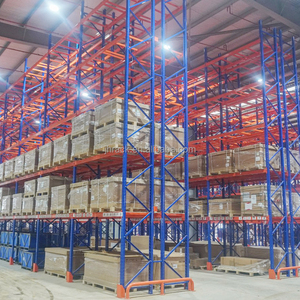

Heavy-Duty Corrosion Protected Pallet Racking Systems for Tropical Climates
Get Catalog
Large Scale E-Commerce & Logistics Warehouse High Load Conventional Pallet Rack
Get Catalog
Technical & Structural Architecture
Engineering Double Row (Double-Deep) Pallet Racking Systems
How double-deep racking redefines warehouse spatial efficiency, structural integrity, and inventory throughput in modern Central American distribution hubs.
Maximizing Volumetric Density by Eliminating 50% of Operating Aisles
Double Row (Double-Deep) Pallet Racking stores pallets two rows deep instead of one, placing two double-entry racks back-to-back. Accessed by specialized pantograph reach trucks or deep-reach forklifts equipped with telescopic forks, this system reduces aisle-to-storage floor ratios dramatically.
Compared to standard selective pallet racking, double row structures increase floor storage utilization by 30% to 50% while maintaining an immediate selectivity ratio of 50% (and 100% partial accessibility). This renders double-deep systems the optimal solution for warehouses managing multiple pallets per stock-keeping unit (SKU).
Request CAD Warehouse LayoutOptimized Floor Area Yield
By collapsing four single rows into a consolidated double-row block, floor footprint dedicated to forklift operation is decreased by up to 50%, converting wasted aisle space directly into revenue-generating pallet positions.
LIFO & Batch Rotation Compatibility
Operates seamlessly under Last-In, First-Out (LIFO) inventory management. Highly efficient for fast-moving consumer goods (FMCG), agricultural exports, and bulk manufactured goods stored in multi-pallet batch lots.
Enhanced Seismic Lateral Stability
The interconnected double-row configuration provides an inherently wider structural footprint. When tied together with rigid top ties and row spacers, lateral torsional buckling resistance increases significantly against seismic loads.
Double Row vs. Alternative Storage Systems: Performance Matrix
Choosing the correct storage engineering format requires evaluating SKU diversity, throughput requirements, forklift machinery investments, and capital expenditure.
| Storage Architecture | Storage Density | Pallet Selectivity | Handling Machinery Required | Seismic Resistance | Relative CapEx Index |
|---|---|---|---|---|---|
| Double Row Pallet Racking | High (60-65%) | 50% Direct / 100% Group | Deep-Reach Pantograph Truck | Superior (Braced Twin Frame) | Economical ($$) |
| Selective Pallet Racking | Medium (40-45%) | 100% Immediate | Standard Counterbalance / Reach | Standard Single/Twin Frame | Standard ($) |
| Drive-In Storage Racking | Very High (75-80%) | Low (LIFO Per Lane) | Standard Forklift (Enters Lane) | Requires Rear/Top Bracing | Moderate ($$) |
| Radio Shuttle System | Maximum (85%+) | FIFO / LIFO Automated | Forklift + Automated Shuttle | High (Heavy Duty Grid) | Advanced ($$$$) |
Regional Logistics Integration
Localized Storage Scenarios Across Costa Rican Industrial Zones
Engineered to resolve specific operational challenges in the Gran Área Metropolitana (GAM), Pacific/Atlantic port corridors, and Costa Rica's export free zones.
1. Medical Device & High-Tech Manufacturing (Zonas Francas)
Primary Hubs: Zona Franca Coyol (Alajuela), America Free Zone (Heredia), Metro Free Zone (Cartago).
Costa Rica is a premier global hub for medical technology manufacturing (Medtronic, Abbott, Boston Scientific). Warehouses in these tax-free zones require ultra-clean, corrosion-free, dust-controlled racking environments.
- Solution: Double row racking featuring Swiss Gema electrostatic epoxy powder coating (180°C thermal curing) to prevent flaking and particle contamination.
- Benefit: Doubles cleanroom buffer storage capacity while meeting strict FDA and ISO 13485 medical device inventory audits.
2. Pineapple, Banana & Fresh Produce Export Cold Chains
Primary Hubs: Puerto Limón, Moín Container Terminal, Atlantic Agricultural Belt (Pocoora, Guápiles).
Costa Rica is one of the world's top agricultural exporters. Refrigerated distribution centers near ocean ports face constant sub-zero temperatures, intense ambient tropical moisture, and salt mist exposure.
- Solution: Hot-Dip Galvanized (HDG) structural Q355B steel double row frames compliant with ISO 1461 galvanizing specs.
- Benefit: Minimizes cold storage room cubic volume requirement per pallet, cutting electricity consumption for industrial refrigeration systems significantly.
3. Fast-Moving Consumer Goods (FMCG) & Retail Logistics
Primary Hubs: San José West Logistics Corridor (Route 27), Santa Ana, El Coyol Distribution Logistics Hubs.
Major grocery, retail chains (e.g., Dos Pinos, Walmart Central America) require high-turnover storage along the main arterial highways connecting San José to Pacific coast ports (Caldera).
- Solution: Heavy-duty double row racking with integrated wire mesh decking and column safety protectors against reach truck impacts.
- Benefit: Accelerates batch pallet put-away and retrieval while preventing product fallback into rear rows.
4. Seismic-Resilient Heavy Industrial Component Warehousing
Primary Hubs: Cartago Industrial Park, Alajuela Central Valley Industrial Zone.
Costa Rica is located on an active tectonic boundary (Cocos and Caribbean plates). Industrial warehouses require structural calculation models that resist lateral seismic forces without frame collapsing.
- Solution: Custom-engineered structural upright profiles (up to 120mm profile width) using high-yield Q355B structural steel, enlarged footplates, and chemical anchor bolts.
- Benefit: Strict compliance with Costa Rican Structural Seismic Code (CSCR-2010) and RMI international standards.
Strategic Market Drivers
Logistics Trends Shaping Costa Rican Supply Chain Infrastructure
Key economic and industrial developments compelling logistics directors in Costa Rica to upgrade warehouse storage density.
Nearshoring & U.S. Supply Chain Realignment
As multinational corporations relocate manufacturing footprints from Asia to the Americas under nearshoring initiatives, Costa Rica's Free Trade Zones are experiencing record industrial occupancy rates. High land acquisition costs in San José and Alajuela require maximize vertical space utilization rather than expanding horizontal warehouse footprints.
Modernization of Port APM Terminals Moín
The expansion of the APM Container Terminal in Moín, Limón, has significantly accelerated container vessel throughput. Logistics operators require high-capacity staging facilities fitted with double row and automated racking to process sea freight imports and exports without port congestion bottlenecks.
Green Building & LEED Logistics Facilities
Costa Rica leads Latin America in environmental sustainability. Modern logistics parks are enforcing LEED (Leadership in Energy and Environmental Design) standards. High-density double row racking lowers cold storage building footprint, reducing HVAC carbon emissions and supporting national carbon-neutral goals.
Manufacturing Excellence
ApexDrive Technical Capabilities & Quality Control
Direct from our 20,000 m² state-of-the-art production facility: certified raw materials, precision engineering, and rigorous testing protocols.
From Steel Coil to High-Precision Racking Frames
Every structural beam, upright, and support bar produced by ApexDrive Industrial Racking Co., Ltd. undergoes strict multi-stage quality assurance. We exclusively source high-strength Q235B and Q355B structural cold-rolled steel from tier-one steel producers (Baosteel, Masteel, Wuhan Iron & Steel).
Our facility operates 150+ automated production units, including German-engineered continuous roll-forming lines capable of producing single-piece upright columns up to 12 meters in height with a cumulative hole-pitch tolerance within ±2 mm.
- Robotic Manipulator Welding: Eliminates human weld defects, micro-porosity, and cold welds on beam connectors.
- 220-Meter Automated Coating Line: Swiss Gema electrostatic powder coating with 10-stage pre-treatment degreasing.
- Pre-Shipment Trial Assembly: Every custom double row rack project undergoes physical mock-up assembly to verify connection tolerances before container packing.
1. Mill-Certified Steel
Verified Q235B & Q355B structural steel coils with chemical analysis and yield strength mill test certificates (MTC).
2. Precision Roll-Forming
Automated multi-station cold roll-forming ensures smooth structural bends, structural stiffness, and precise pitch accuracy.
3. Automatic Robotic Welding
Welding manipulators execute uniform full-seam welds on beam claw connectors, providing 1.8x structural safety margin.
4. Swiss Pre-Treatment & Coating
Degreasing, descaling, and electrostatic powder coating cured at 180°C to guarantee long-term anti-rust protection.
5. Rigid Inspection & Assembly
Load deflection testing (L/300 standard), beam safety pin shear force checks, and dimensional verification.
6. Protected Container Export Packing
Heavy steel-strapped bundling, protective corner guards, and plastic wrapping tailored for ocean container shipping to Costa Rica.
Procurement Guide & FAQ
Frequently Asked Questions by Costa Rican Racking Buyers
Essential technical, regulatory, and shipping information for warehouse managers and procurement directors in Costa Rica.
How does the China-Costa Rica Free Trade Agreement (TLC China-Costa Rica) impact import duties on steel racking?
Under the bilateral Free Trade Agreement between Costa Rica and China (TLC China-Costa Rica), industrial steel racking systems (HS Code 7308.90) qualify for preferential zero or reduced import tariff rates when accompanied by an official Certificate of Origin Form F issued by China Council for the Promotion of International Trade (CCPIT). ApexDrive provides all compliant customs documentation to ensure smooth clearance at Puerto Limón or Puerto Caldera.
How do ApexDrive engineers ensure racking designs comply with Costa Rica's Seismic Code (CSCR-2010)?
Costa Rica is located in a high seismic hazard zone. Our structural engineering department utilizes advanced finite element software to analyze dynamic seismic loads based on local spectral acceleration factors. For Costa Rican installations, we engineer double row racking with enlarged base plates, heavy-duty floor anchor bolts (M12 to M16 chemical or mechanical anchors), reinforced upright profiles, and specialized diagonal frame bracing to ensure seismic stability.
What handling machinery is required to operate a Double Row (Double-Deep) Pallet Racking System?
Double-deep racking requires specialized reach trucks equipped with telescopic pantograph forks or double-deep fork extenders. These forklifts enable the operator to reach over the first pallet row to load or retrieve pallets stored in the rear row. Our engineering team provides detailed aisle width layout drawings (typically 3.0m to 3.4m clear aisle required, depending on forklift model) to ensure seamless truck maneuvering.
What surface protection finish is recommended for humid tropical climates near Costa Rican coastal regions?
For inland warehouses in the Central Valley (San José, Heredia, Alajuela), our standard 10-stage pre-treated electrostatic powder coating (80–100 microns thick) provides excellent scratch and rust protection. For humid coastal export zones near Limón or Puntarenas, or for cold-storage freezer facilities (-25°C), we recommend Hot-Dip Galvanizing (HDG) according to ISO 1461 standards, which provides complete internal and external zinc barrier protection against marine atmospheric corrosion.
What is the typical ocean transport lead time from China to Costa Rica ports?
Production lead time at our factory is typically 20 to 25 days depending on project order volume. Direct ocean vessel transit time from Ningbo or Shanghai port to Puerto Limón (Atlantic side) or Puerto Caldera (Pacific side) averages 28 to 35 days. In total, clients can expect delivery on site within 8 to 10 weeks from CAD drawing final approval.
Does ApexDrive provide installation support for projects in Costa Rica?
Yes. Every shipment includes detailed 3D assembly drawings, column layout schematics, beam loading badges, and comprehensive English/Spanish installation manuals. We provide continuous remote video guidance from our structural project engineers. For large-scale logistics developments in Costa Rica, ApexDrive can dispatch bilingual on-site installation supervisors to direct local installation crews.
