ApexDriveRACKING
Engineered Racking Systems & Logistics Platforms
High-load capacity structural racking systems certified to European UNE-EN structural safety standards for warehouse hubs across Spain.
American Standard Heavy-Duty Metal Storage Pallet Rack
Engineered for high beam loading capacity with fully adjustable shelf heights, compatible with standard EUR-1 and EUR-2 pallet dimensions.

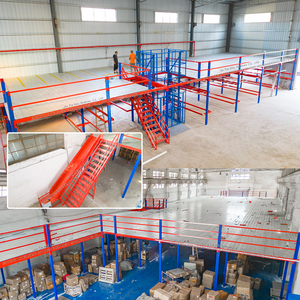

Multi-Level Steel Mezzanine Structural Platform
Double or triple your usable warehouse footprint with heavy-duty steel mezzanine platforms designed for integrated office or fulfillment spaces.
Multi-Level Heavy Duty Industrial Pallet Racking
Structural multi-tier warehouse shelving optimized for high-density SKU management, order picking, and automated conveyor integration.

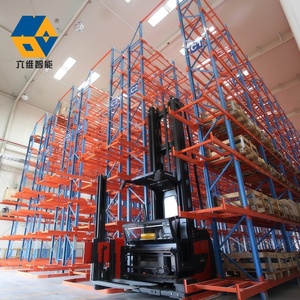

Very Narrow Aisle (VNA) High-Loading Crossbeam Racking
Maximize storage height and eliminate wasted aisle space with high-precision VNA racking systems designed for turret truck operation.
High-Density Drive-In & Double-Deep Racking System
Ideal for uniform batch storage, offering up to 85% storage density utilization with LIFO stock management ideal for cold chain facilities.
Heavy-Duty Elevated Steel Platform (Up to 500kg/sqm)
Custom engineered modular elevated platform providing safe, high-load industrial floorspace for assembly lines or warehouse distribution.
800KG Capacity Boltless Teardrop Pallet Racking
Quick-assembly heavy duty beam frames built with Q235B/Q355B certified steel for demanding commercial and industrial storage environments.

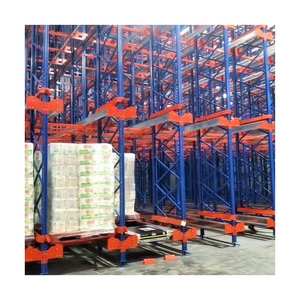

Semi-Automatic Radio Shuttle Pallet Racking System
Corrosion-protected high-density storage featuring automated motorized shuttles for fast FIFO/LIFO pallet movement in temperature-controlled facilities.
20,000 m²
Production Plant
30,000 Tons
Annual Steel Output
6,000+
Global Projects
UNE-EN 15512
European Compliance
Dynamic Pallet Racking Systems in Spain: Strategic Context & Market Dynamics
Spain has solidified its role as Southern Europe's paramount logistics and supply chain engine. Driven by strategic distribution corridors such as the Corredor del Henares (Madrid), the logistics hub of PLAZA Zaragoza, the Zona Franca logistics belt in Barcelona, and the maritime gateway of Valencia, warehouse operators face intense pressure to optimize cubic space, lower operational cost per pallet, and accelerate order fulfillment cycles.
Traditional static selective racking, while offering 100% direct pallet accessibility, often utilizes less than 40% to 50% of total warehouse floor footprint due to required forklift travel aisles. To resolve this inefficiency, Spanish logistics directors, third-party logistics providers (3PLs), food manufacturing giants (such as Mercadona and Carrefour Spain suppliers), and cold storage operators are rapidly adopting Dynamic Pallet Racking Systems—including Pallet Flow (Gravity Racking), Push-Back Systems, and Radio Shuttle Automated Racks.
Defining Dynamic Racking Engineering: FIFO vs. LIFO Dynamics
Unlike stationary rack frames, dynamic pallet racking incorporates mechanical gravity rollers, telescoping carts, or motorized shuttle vehicles inside deep storage channels. This engineered movement turns static aisle space into live, high-density storage capacity.
Gravity Flow (Live Racking)
Utilizes inclined roller tracks (typically set at a 3% to 5% slope). Pallets loaded at the high entry face automatically glide toward the picking face on controlled brake rollers under gravitational force. Strictly enforces FIFO (First-In, First-Out) flow—critical for Spanish agricultural export and perishable food industries.
Push-Back Trolley Systems
Uses nested, sliding telescoping carts resting on inclined steel beams. When a new pallet is inserted, it pushes the preceding pallet back. When retrieved, remaining pallets glide forward automatically. Operates on a LIFO (Last-In, First-Out) basis up to 6 pallets deep per lane.
Radio Shuttle Racking
Combines structural deep-channel steel frames with independent, remote-controlled battery shuttle vehicles. The shuttle carries unit loads along internal rails, providing maximum structural safety as forklifts never enter the storage lanes. Configurable for both FIFO and LIFO management.
Technical Compliance & Structural Safety Standards for Spanish Imports
When importing industrial heavy-duty racking systems from overseas manufacturing facilities into Spain, absolute adherence to European Norms (EN) and Spanish UNE standards is legally mandatory for workplace safety inspections and building insurance validation. ApexDrive storage systems are manufactured from high-tensile Q235B and Q355B cold-rolled structural steel, verified through steel mill material certificates from Baosteel and Masteel.
Our engineering division calculates structural load capacities, frame deflection ratios, and beam connection tolerances in full alignment with the following standards:
- UNE-EN 15512: Steel static storage systems - Adjustable pallet racking systems - Principles for structural design.
- UNE-EN 15620: Tolerances, deformations, and clearances for high-bay and automated racking systems.
- UNE-EN 15635: Steel static storage systems - Application and maintenance of storage equipment (Safe operation protocols).
- Seismic Resistance (NCSE-02): Custom structural bracing design for seismic zones in Southern Spain (e.g., Granada, Murcia, and Alicante provinces).
Localized Application Scenarios in Spain’s Key Economic Regions
1. Agrifood & Cold Storage Logistics (Murcia, Valencia, Andalusia)
Spain is the agricultural backbone of Europe ("The Orchard of Europe"). Produce exporters in regions like Murcia and Almería operate extensive cold-storage and flash-freezing facilities operating between -20°C and -30°C. In freezer environments, building energy consumption is astronomical per cubic meter. Dynamic Radio Shuttle and Gravity Flow Racking compress storage footprint by eliminating up to 70% of forklift aisles, reducing electricity overhead while maintaining strict FIFO batch tracking for EU food compliance.
2. Omnichannel E-Commerce & Fashion Distribution (Madrid & Catalonia)
With Spain's fast-growing e-commerce fulfillment requirements and apparel retail networks (Inditex, Mango, Tendam), warehouses require rapid piece picking and high SKU turnover. Dynamic live carton and pallet racking systems integrated with automated pick-to-light technology accelerate picking rates by 40% compared to static shelves, reducing worker travel distance across expansive fulfillment halls.
3. Automotive Subcontracting & Industrial Manufacturing (Basque Country & Zaragoza)
Heavy manufacturing industries along the Ebro Valley and Northern Spain require dense storage for heavy automotive components, metal stampings, and raw materials. Structural dynamic racks equipped with dual-directional magnetic speed controllers handle heavy pallets up to 1,500 kg per position without kinetic impact damage.
Engineering Comparison Matrix: Selecting the Optimal Dynamic System
Selecting the right racking technology depends on SKU diversity, inventory velocity, floor footprint, and capital expenditure targets. Review our comparative engineering whitepaper data below:
| Racking Technology | Storage Density | Stock Flow Model | SKU Diversity Capacity | Cold Chain Suitability | Relative ROI & Efficiency |
|---|---|---|---|---|---|
| Selective Pallet Racks | Low (40-50%) | 100% Direct Access | Very High (Unlimited) | Standard | Baseline CapEx / High OpEx |
| Gravity Pallet Flow | Very High (80-85%) | Strict FIFO | Moderate (Per Lane) | Excellent | Fast Payback / Zero Energy Cost |
| Push-Back Trolleys | High (70-75%) | LIFO (Up to 6 Deep) | Moderate-High | Good | Low Maintenance / High Speed |
| Radio Shuttle System | Maximum (85-90%) | Flexible FIFO & LIFO | Moderate (Batch SKUs) | Superior (-30°C certified) | Maximum Automation / High Density |
| VNA Narrow Aisle | Moderate-High (65%) | 100% Direct Access | Very High | Standard | High Height Efficiency |
ApexDrive Manufacturing Advantages for Spanish Importers
Direct factory production, rigorous QA testing, and specialized export packing for smooth European customs clearance.
01
Certified Raw Steel Sourcing
Components are cold-rolled exclusively from Q235B and Q355B structural steel grade coils supplied by tier-1 mills (Baosteel, Masteel). Full chemical composition and tensile strength traceably documented.
02
Precision German Roll-Forming
Automated continuous roll-forming lines maintain a cumulative hole-pitch error within ±2 mm over a full 12-meter single-piece upright frame, guaranteeing perfect beam locking on site.
03
Robotic Manipulator Welding
Beam connectors and structural footplates are welded using multi-axis robotic manipulators. Eliminates human error, incomplete penetration, and porosity for maximum shear load resilience.
04
220m Automatic Powder Coating Line
10-stage chemical degreasing and rust removal followed by electrostatic powder application cured at 180°C using Swiss Gema technology. Coating thickness (80-120 μm) delivers superior salt-spray corrosion protection.
Frequently Asked Questions by Spanish Logistics Buyers
Technical, legal, and operational questions answered by our chief racking design engineers.
How do your dynamic pallet racks comply with Spanish UNE-EN structural regulations?
Every project exported to Spain undergoes structural calculations using finite element analysis (FEA) compliant with UNE-EN 15512. We provide complete technical documentation, load safety notices (Carteles de Cargas), material batch certificates, and structural stability reports required by Spanish workplace safety inspectors (Inspección de Trabajo y Seguridad Social) and insurance underwriters.
Can your dynamic systems handle standard European EUR-1 (800x1200mm) and EUR-2 (1200x1000mm) pallets?
Yes. Our dynamic gravity roller tracks, push-back telescoping carts, and radio shuttle lanes are customized for European pallet specifications. Whether your facility handles standard EPAL/EUR-1 pallets (800 mm entry or 1200 mm entry) or CHEP blue block pallets, roller spacing and brake roller pitch are engineered to prevent pallet deflection and jam incidents.
What shipping terms and container packaging do you offer for delivery to Spanish ports?
We regularly ship under FOB, CIF, or DDP (Delivered Duty Paid) terms directly to major Spanish commercial sea ports including Valencia, Barcelona, Algeciras, and Bilbao. Upright frames and beams are strapped using multi-tier high-tensile steel banding with protective corner guards. Small hardware, connectors, safety pins, and anchor bolts are packed in fumigated wooden boxes on plywood pallets for effortless customs inspection.
What seismic customization is available for warehouse installations in Southern Spain?
For installations in seismically active regions such as Granada, Málaga, and Almería, we design enhanced baseplates, heavy-duty floor anchor bolts (chemical or mechanical expansion anchors), and specialized X-bracing tower frames calculated in accordance with the Spanish Seismic Code (NCSE-02) and Eurocode 8.
Do you provide on-site installation support or assembly manuals in Spain?
Every order includes comprehensive step-by-step CAD installation drawings, 3D assembly guides, and detailed English/Spanish operational manuals. We also offer online remote engineer video supervision during assembly or can coordinate certified third-party European installation teams for full turn-key racking erection on site.
What surface treatments are recommended for coastal logistics facilities near the Mediterranean?
For warehouses situated in coastal environments (e.g., near the Port of Valencia or Barcelona) or high-humidity food processing plants, we recommend either hot-dip galvanizing (ISO 1461 compliant) for permanent atmospheric rust resistance or our heavy-duty marine-grade epoxy powder coating finish.
Transform Your Spanish Warehouse Capacity Today
Send us your warehouse CAD floor plan, ceiling clear height, and pallet specs. Our senior structural engineers will deliver a free 2D/3D layout design and formal commercial quote within 24 hours.
